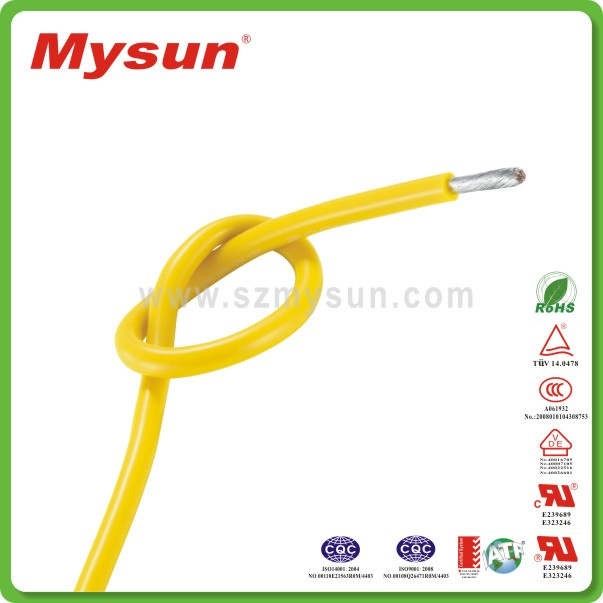

High Voltage Good Quality Low Price for Silicone Rubber Electrical Wire

Name: High Voltage Good Quality Low Price for Silicone Rubber Electrical Wire
Brand: all-electronics-online.com
SKU: 830381675
Availability: InStock
Rating: 4.7 (140 reviews)

Price:	US $ 0.1-0.5/Meter
Min Order:	6100/Meter
Pay Type:	Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	3122
Type:	Insulated
Conductor Type:	Stranded
Insulation Material:	Silicone Rubber
Certification:	CSA Ts16949
Application:	Home Application,LED Lamp, Oven,Machine
Conductor Material:	Tinned Copper
Sheath Material:	Silicone Rubber
Range Of Application:	Home Application,LED Lamp, Oven,Machine
Brand:	Mysun

Product Description

High Voltage Good Quality Low Price for Silicone Rubber Electrical Wire

Specifications:

Nominal voltage: 300V

Temperature range: 200C

Standard: UL 758

Conductor: Tinned copper wire

Insulation: Silicone Rubber

Insulation: Fiber Glass

Product dimensions:

Conductor			Insulation		Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
26	7/0.16	0.48	0.60	1.68	143	305/1000
24	7/0.20	0.61		1.81	89.3
22	7/0.254	0.77		1.97	56.4
20	7/0.31	0.94		2.14	35.2
18	7/0.39	1.19		2.39	22.2
16	7/0.49	1.49		2.69	14
24	1/0.50	0.50	0.65	1.80	89.3	305/1000
22	1/0.65	0.65		1.95	56.4
20	1/0.81	0.81		2.11	35.2
18	1/1.02	1.02		2.32	22.2
16	1/1.20	1.20		2.50	14
24	11/0.16	0.61	0.60	1.81	89.3	305/1000
22	17/0.16	0.76		1.96	56.4
20	26/0.16	0.94		2.14	35.2
18	41/0.16	1.18		2.38	22.2
16	26/0.254	1.49		2.69	14
0.30mm²	12/0.18	0.71	0.60	1.91	59.78	305/1000
0.50mm²	20/0.18	0.92		2.12	40.1
0.75mm²	30/0.18	1.13		2.33	26.7
1.00mm²	40/0.18	1.31		2.51	20
1.25mm²	50/0.18	1.46		2.66	14.35

Welcome to contact us about the questions of cable.

Good day to you

Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds have UL, cUL, CSA, VDE, CCC, SGS, Tü V certified high temperature wire and wire harness since 1999.

Products are widely used in home appliances, lighting, medical equipments, office facilities, thermal electronics and industrial machine. Products are with good appearance, high-quality, safety application and environmental- friendly.
