| Prod Model: |
JYN2-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
12kv |
| Rated Current: |
630-3150A |
| Circuit Breaker Rated Current: |
630, 1250A |
| Rated Breaking Current: |
20-31.5ka RMS |
| Degree Of Protection: |
IP4X, IP2X |
| Breaking Capacitor: |
1000kvar |
| Max Closing Current: |
50, 80ka |
| Withstand Current: |
50, 80ka |
| Primary Busbar Withstand Current: |
50, 80ka |
| 2s Thermal Current: |
20-31.5ka RMS |
| Type: |
Power |
| Form: |
All- packaged Type |
| Operation Voltage: |
High Voltage |
| Size: |
1 Uint |
| Application Range: |
High-rise Buildings |
| Shell Protection Grade: |
IP56 |
| Brand: |
Yangke |
Product Description

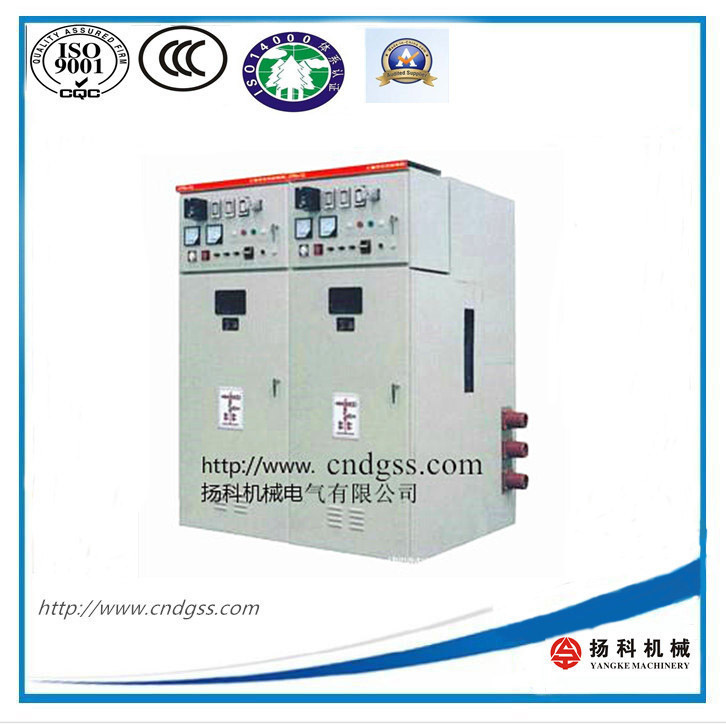

JYN2-12 is the metal-enclosed switchgear suitable ffor 3-12kv system of single busbar, used as receiving and distributing power energy.
1. Applicable standard: IEC GB.
2. Altitude: less than2000m.
3. Ambient temperature: -5'C~+40'C.
4. Air humidity at 40'C <=50%. Higher humidity at lower temperature is permitted. Occasional condensation due to temperature variation should be considered.
5. No excessive vibration.
6. No corrosion to electric elements.
7. Technical data:
No. | name | unit | parameters |
| 1 | Rated voltage | Kv | 12 |
| 2 | 1min power frequency withstand voltage | Kv | 42/48 |
| 3 | Peak value | Kv | 75/85 |
| 4 | Rated frequency | Hz | 50 |
| 5 | Rated current | A | 630~3150 |
| 6 | Test of rated short-time withstand(4s) | kA | 20,25,31.5,40,50 |
| 7 | Rated peak withstand current | kA | 50,63,80,100,125 |
| 8 | Rated short circuit breaking current | kA | 16,20,25,31.5,40,50 |
| 9 | Rated short-circuit making current | kA | 40,50,63,80,100,125 |
| 10 | Control loop rated voltage | V | DC110V,DC220V,AC220V |
| 11 | Protection level |
| IP4X, IP2X |
Packaging & Delivery
| Packaging Detail: | wooden box |
| Delivery Detail: | within 5-15working days after the deposit |
Company Information
Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.
Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.
With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000KVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.
We only offer products using major engine brands such as Cummins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).
Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.
Sales promises:
YANGKE power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested.
Warranty is according to our standard conditions :
a. 15months,counted on the day YANGKE sold to the first buyer;
b. one year after installation;
c.1000running hours(accumulated),subject to the earlier one.
Service and parts are available from YANGKE POWER or distributors in your location.
