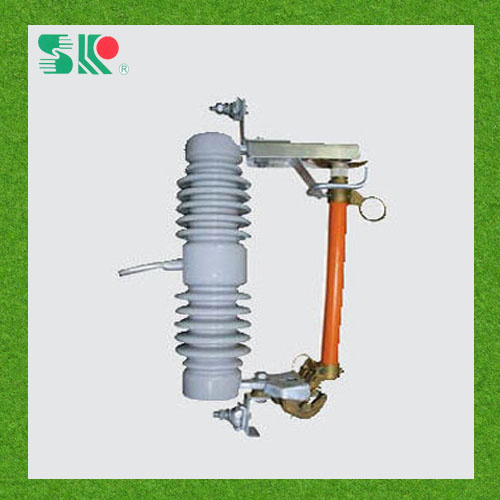

High Voltage Outdoor Exchange Drop-out Fuse

Name: High Voltage Outdoor Exchange Drop-out Fuse
Brand: all-electronics-online.com
SKU: 737666825
Availability: InStock
Rating: 4.4 (57 reviews)

Price:	US $ 50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Current Fuse
Breaking Capacity:	High
Usaga:	High Voltage

Product Description

*Quick Details

Model Name : Cascade Fuse Safety Standard: IEC

Model Number : XM - 5 Export Markets: Global

Breaking Capacity : High Origin: China

Rated Voltage : 15kV

*Product Description

Type: XM - 5

Rated Voltage ( kV ) : 15

Rated Current ( A ) :100 200

Breaking Current ( A ) : 6300 12500

Impulse Voltage ( BIL ) : 125

Power - Frequency Withstand Voltage ( kV ) : 45

Leakage Distance ( mm ) : 330

Weight ( kg ) : 8.8 9.3

Dimensions ( cm ) : 51*31*12.5

*Packaging & Delivery

Packaging Detail : According to customer's requirement
Delivery Detail : According to the order

we provide you with sincerely service, if you interest, contact us now!!!

Wenzhou Shuguang Fuse Co., Ltd is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all over world to contact us for future business relationships and achieving mutual success!
