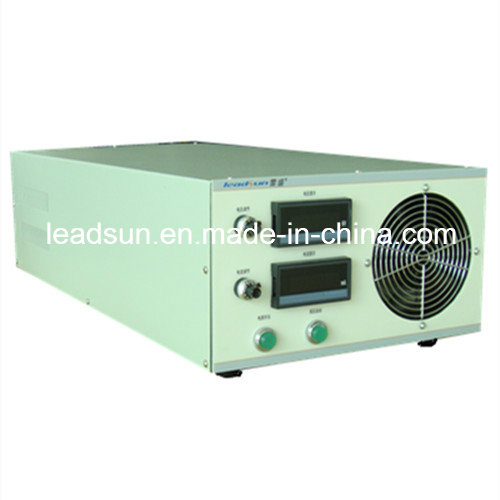

High Voltage Power Supply 220v AC LS60kv-100mA Variable Power Supply

Prod Model:	LS60KV-100mA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ambient Temperature:	-20oc~50oc
Working Frequency:	50kHz
Cooling:	Air Cooling
Output Type:	Single
Warranty:	1 Year
Output Power:	>500W
Connection Mode:	Series Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CE
Input Voltage:	220V AC
Starting Mode:	Soft Start
Brand:	Leadsun

Product Description

High Frequency High Voltage Power Supply LP60KV-100mA
Specifications

Item	Parameters	Remarks
Input voltage	220V AC	Wave less than 10%
Rated power	3KW	Full load, output Umax, Imax
Rated output voltage	60KV
Rated output current	100mA
Comparative voltage control accuracy	3%	Uo=80%Umax
Absolute voltage control accuracy	5%	Uo=80%Umax
Voltage/temperature coefficient	100V/1K
Voltage program accuracy	Better than 5%
Voltage output range	10-60KV adjustable
Output limiting current	100mA
Control response time	Better than  50nS
Ambient temperature	-20 ~ 50ºC
Ambient humidity	10% ~ 90% no atomization
Cooling	Air cooling
Starting	Soft start
Constant voltage control mode	Phase-shifting PWM
Current control mode	Constant current of average value  Peak value testing	Within 100nS peak value loading, cut off and restart automatically
Working frequency	50kHZ
Converting efficiency	Better than 80%	Output voltage from 50% - 75%, efficiency 80% - 90
Voltage regulation rate	5%
Ripple Coefficient	Less than 1%
Current and voltage program mode	By potentiometer

Company & Services
· Leadsun focus on OEM,ODM and custom service, we have experienced engineers to supply the technical supports including design,operation, adjustment and failure analysis.
· Leadsun has Latest Standard product assembly series, including worldwide popular product series, and special customized series. There are Thousands of  Types and Models for your choosing
· Leadsun technical center record every order and product characteristics; sales department focus on market developmenttendency, will supply you Full Service.
· Leadsun take quality as foundation of success, we feel honored to supply customer requried products and customer success. We keep focusing on product Innovation and Development to stay ahead in the industry.
· Year 2014, Leadsun will move to new industrial center, new platform, new hope,dream starts here.
For more information,please contact me.
We can also customize the products as your need.
