Product Description

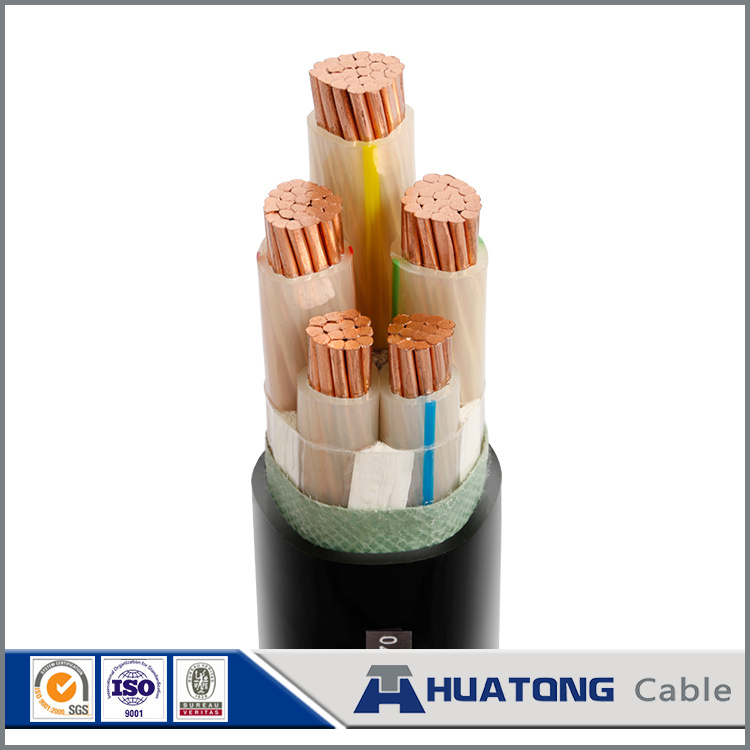

High Voltage power XLPE Cable
Application:6.35/11kV XLPE Cable is used indoor or outdoor, in tunnel, cable furrow or pipe, to be laid underground, be applicable to the well, water inside and fall in the bad soil.
Standards:
IEC 60502-2
BS 6622
BS 7870-4, BS 7870-7, BS 7870-8
Cores: 1 Core, 3 Core
1. Conductor: Copper or Aluminum
2. semiconductive conductor screen
3. Insulation: XLPE (Cross-Linked Polyethylene)
4. semiconductive insulation screen
5. metallic screen(Copper wire or Copper tape Screen)
6. PVC bedding
7. Armour:
Single Core Cable: Aluminum Wire
Three Core Cable: Galvanized steel wires armour or Galvanized steel tape armour
8. PVC outer sheath
Sheath Color:Black or Colors
Product Description:
- XLPE insulated PVC sheathed power cable (XLPE/PVC Cable)
- XLPE insulated steel tape armored PVC sheathed power cable (XLPE/STA/PVC Cable)
- XLPE insulated steel wire armored PVC sheathed power cable (XLPE/SWA/PVC Cable)
- Flame retardant XLPE insulated PVC sheathed power cable (FR/XLPE/PVC Cable)
- Flame retardant XLPE insulated steel tape armored PVC sheathed power cable (FR/XLPE/STA/PVC Cable)
- Flame retardant XLPE insulated steel wire armored PVC sheathed power cable (FR/XLPE/SWA/PVC Cable)
FR - Flame Retardant
----IF YOUR HAVE ANY INTERESTED PRODUCTS, PLS FEEL FREE TO CONTACT OUR SALES TEAM.
6.35/11kV Three Core Copper Conductor XLPE insulated Steel Wire Armored PVC sheathed power cable
(Cu/XLPE/PVC/SWA/PVC Cable)
Cross section
mm2 | Insulation
Thickness
mm | armoring size | Approx. Overall Dia.& Weight |
fine steel wire
dia. mm | thick steel wire
dia. mm | fine steel wire armor | thick steel wire armor |
Overall dia.
mm | Weight
kg/km | Overall dia.
mm | Weight
kg/km |
|
| 25 | 3.4 | 2.5 | 4.0 | 48.9 | 4135 | 55.0 | 6002 |
| 35 | 3.4 | 2.5 | 4.0 | 51.3 | 4658 | 57.4 | 6525 |
| 50 | 3.4 | 2.5 | 4.0 | 54.1 | 5355 | 59.7 | 7296 |
| 70 | 3.4 | 2.5 | 4.0 | 58.0 | 6311 | 63.9 | 8393 |
| 95 | 3.4 | 2.5 | 4.0 | 62.1 | 7415 | 67.6 | 9616 |
| 120 | 3.4 | 2.5 | 4.0 | 65.6 | 8479 | 70.9 | 10716 |
| 150 | 3.4 | 2.5 | 4.0 | 69.3 | 9678 | 74.6 | 11980 |
| 185 | 3.4 | 2.5 | 4.0 | 73.2 | 11093 | 78.6 | 13525 |
| 240 | 3.4 | 3.15 | 4.0 | 80.4 | 14191 | 84.0 | 15799 |
| 300 | 3.4 | 3.15 | 4.0 | 85.4 | 16457 | 88.8 | 18103 |
| 400 | 3.4 | 3.15 | 4.0 | 93.0 | 20188 | 96.3 | 21994 |
Cores and Nominal Cross Section Area:
| 1 core (mm2) | 2 core (mm2) | 3 core (mm2) | 3 core + 1 core (mm2) | 4 core (mm2) | 3 core+ 2 core (mm2) | 4 core + 1 core (mm2) | 5 core (mm2) |
| 1×4 | 2×4 | 3×4 | 3×4+1×2.5 | 4×4 | 3×4+2×1.5 | 4×4+1×2.5 | 5×2.5 |
| 1×6 | 2×6 | 3×6 | 3×6+1×4 | 4×6 | 3×6+2×4 | 4×6+1×4 | 5×4 |
| 1×10 | 2×10 | 3×10 | 3×10+1×6 | 4×10 | 3×10+2×6 | 4×10+1×6 | 5×6 |
| 1×16 | 2×16 | 3×16 | 3×16+1×10 | 4×16 | 3×16+2×10 | 4×16+1×10 | 5×10 |
| 1×25 | 2×25 | 3×25 | 3×25+1×16 | 4×25 | 3×25+2×16 | 4×25+1×16 | 5×16 |
| 1×35 | 2×35 | 3×35 | 3×35+1×16 | 4×35 | 3×35+2×16 | 4×35+1×16 | 5×25 |
| 1×50 | 2×50 | 3×50 | 3×50+1×25 | 4×50 | 3×50+2×25 | 4×50+1×25 | 5×35 |
| 1×70 | 2×70 | 3×70 | 3×70+1×35 | 4×70 | 3×70+2×35 | 4×70+1×35 | 5×50 |
| 1×95 | 2×95 | 3×95 | 3×95+1×50 | 4×95 | 3×95+2×50 | 4×95+1×50 | 5×70 |
| 1×120 | 2×120 | 3×120 | 3×120+1×70 | 4×120 | 3×120+2×70 | 4×120+1×70 | 5×95 |
| 1×150 | 2×150 | 3×150 | 3×150+1×70 | 4×150 | 3×150+2×70 | 4×150+1×70 | |
| 1×185 | 2×185 | 3×185 | 3×185+1×95 | 4×185 | 3×185+2×95 | 4×185+1×95 | |
| 1×240 | | 3×240 | 3×240+1×120 | 4×240 | 3×240+2×120 | 4×240+1×120 | |
| 1×300 | | 3×300 | 3×300+1×150 | 4×300 | 3×300+2×150 | | |
| 1×400 | | | | | | | |
| 1×500 | | | | | | | |
Service Conditions And Parameters Of Cable:
The maximum conductor operating temperature: 90ºC;
Short Circuit Temperature 250ºCNot more than 5 secretary
Environmental Temperature of operating
In air: 40ºC, Underground: 25ºC
Depth of laying in direct: 80cm
Thermal Resistance of soil: 1.2ºC.cm/W
Environment temperature should be no lower than 0ºC for laying the cable.
