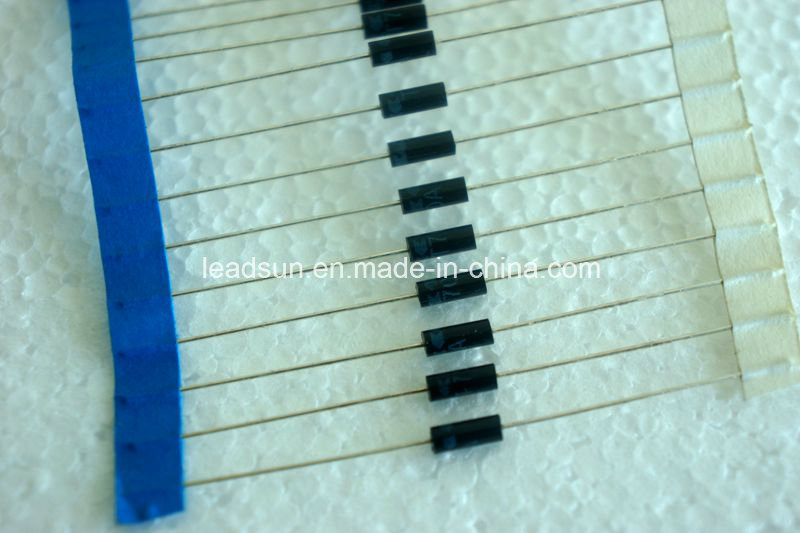

High Voltage Rectifier Diode 2cl74A

Prod Model:	2CL74A
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	P-type Semiconductor
Package:	Through-Hole
Application:	Rectification
Model:	2cl74A
Brand:	Leadsun

Product Description

2CL74A high voltage diodes adopt the designing of high reliable multiple mesa structure and silicon tube, molded in small volume and compact packaging surface by epoxy resin.

Features:
Fast recovery
Low forward on pressure, low leakage current
Protection of avalanche breakdown
Antiimpacting of discharging of CRT high voltage surge current
Axial lead diode, could weld on tube pin
Epoxy resin molded and can resist corrosion on its surface

Application:
Television and FBT display
Cathode ion generator, laser power supply
neon lamp power supply, voltage multiplier assembly
DC high voltage generator assembly

MAX.RATED VALUE

Rated Value	Sign	Condition	2CL70A	2CL71A	2CL72A	2CL73A	2CL74A	Unit
Peak Reverse Repetitive Voltage	VRRM		6	8	10	12	14	kV
Average Forward Rectifier Current	IO		5.0					mA
Max. Irrepetitive Surge current	IFSM	Ta=25ºC,rated load,half cycle,single phase,50Hz	0.5					A
Junction Temperature	Tj	half cycle sinewave peak voltage	120					ºC
Ambient Humidity	Tc		100					ºC
Store Humidity	Tstg		-40-120					ºC

Electric Characteristic

Rated Value	Sign	Condition	2CL70A	2CL71A	2CL72A	2CL73A	2CL74A	Unit
Max. Forward Peak Voltage	V	IF=10mA	24.0	30.0	36.0	45.0	51.0	V
Max. Reverse Recovery Time	trr	IF=2mA   IR=4mA	0.08					μS
Max. Reverse Leakage Current	IR1	VR=VRRM ,25ºC	2.0					μA
Max. Reverse Leakage Current	IR2	VR=VRRM ,100ºC	5.0					μA
Max. Junction Capacitor	Cj		2					pF
