High Voltage Silicone Rubber Cable 16AWG with UL3239

Name: High Voltage Silicone Rubber Cable 16AWG with UL3239
Brand: all-electronics-online.com
SKU: 758147655
Availability: InStock
Rating: 4.6 (76 reviews)

Price:	US $ 0.98-9.87/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	3000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	UL3239 16AWG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Voltage Silicone Rubber Cable:	(UL3239)--16AWG
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	Silicone Rubber
Certification:	RoHS
Brand:	Dewei

Product Description

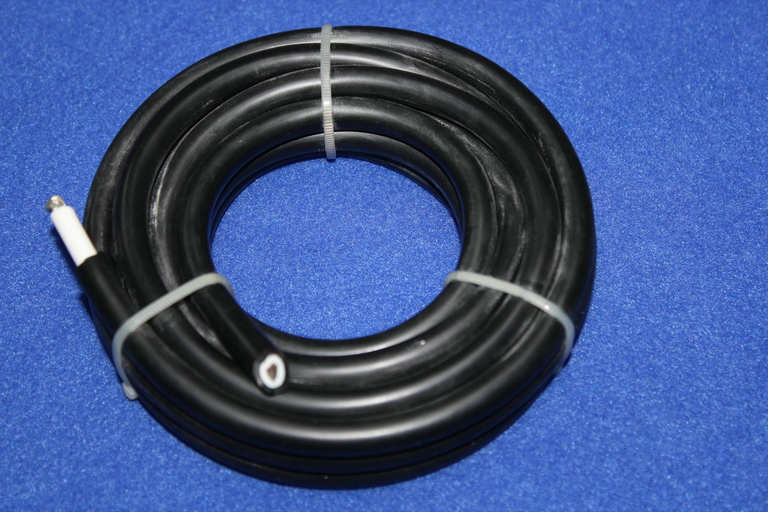

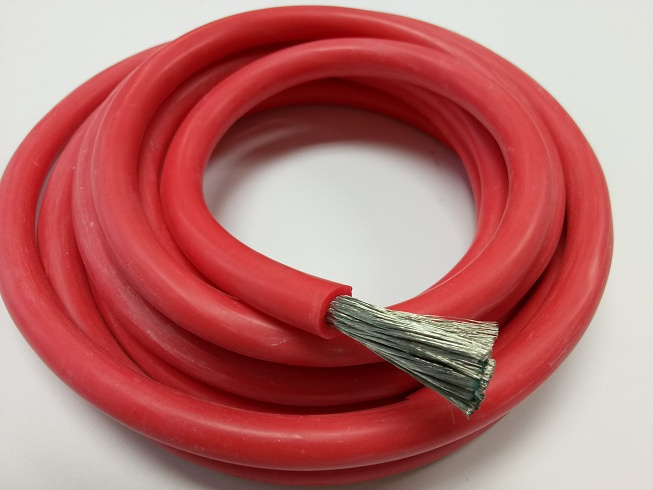

High Voltage Silicone Rubber Cable 16AWG with UL3239
1 Nominal Voltage: 600V
2 Testing Voltage: 1500V
3 Nominal Temperature: -60~ +150
4 Conductor: Bare copper or tinned copper strand together
5 Insulator: Silicone Rubber
6 Colors: White-Blue-Red-Black-Brown-Yellow/Green-Transparent
7 They are the same with the inner fixed wires for airplane model, ship model, vehicle model, home appliance, electrical machine and toys.
8 Certificate: UL, REACH, RoHS, SGS,ISO9001:2008

AWG	con.of conductor.	Diameter	3kv		6kv		10kv		20kv		30kv		packing
	con.of conductor.	Diameter	insulation thickness	over diameter	insulation thickness	over diameter	insulation thickness	over diameter	insulation thickness	over diameter	insulation thickness	insulation thickness	packing
	NO/mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mt/coils
28#	7/0.127	0.38	0.5	1.37	0.7	1.77	1.0	2.37	1.3	2.97	1.7	3.77	305
26#	7/0.16	0.48	0.5	1.49	0.7	1.89	1.0	2.49	1.3	3.09	1.7	3.89	305
24#	14/0.14	0.60	0.5	1.60	0.7	2.00	1.0	2.60	1.3	3.20	1.7	4.00	305
22#	22/0.14	0.76	0.5	1.76	0.7	2.16	1.0	2.76	1.3	3.36	1.7	4.16	305
20#	21/0.18	0.91	0.5	1.91	0.7	2.31	1.0	2.91	1.3	3.51	1.7	4.31	305
18#	34/0.18	1.17	0.5	2.17	0.7	2.57	1.0	3.17	1.3	3.77	1.7	4.57	305
16#	52/0.18	1.50	0.5	2.50	0.7	2.90	1.0	3.50	1.3	4.10	1.7	4.90	200
14#	41/0.254	1.83	0.6	3.03	0.8	3.43	1.2	4.23	1.5	4.83	2.0	5.83	100

DONGGUAN DEWEI WIRE Co., Ltd, established in 2004, specializes in manufacturing various kinds of silicone sleeve and electrical cable: Silicone rubber wire, FEP wire, PFA wire, PTFE wire, ETFE wire, heating wire, braided wire, power cable, twin flat cable, coaxical cable, high temperature cable and high voltage cable which can meet the requirements of UL, VDE, CCC.

Besides, we set up a wire processing workshop to provide customers with well processed wire group and wire harness of the batteries, the brushes, electric adjustment, steering gear, all kinds of JST, AMP connector, T-type plugs, banana plugs etc,

We set up and implement quality management system strictly according to international standard ISO9000, and had been awarded the certification of AMT ISO 9001: 2008 in 2009.

Our philosophy is quality-oriented, continuous innovative, reputation first and to treat our clients sincerely. In the meantime we persist in providing our customers with competitive high-quality products, creating a belief that quality decides the survival of the company.

Welcome to visit and give advice, let' S work together and create brilliant future.
