High Voltage Silicone Rubber Cable 24AWG with UL3239

Name: High Voltage Silicone Rubber Cable 24AWG with UL3239
Brand: all-electronics-online.com
SKU: 684897752
Availability: InStock
Rating: 4.5 (141 reviews)

Price:	US $ 0.136-5.32/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	3000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	UL3239 24AWG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Voltage Silicone Rubber Cable:	(UL3239)--24AWG
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	Silicone Rubber
Certification:	RoHS
Brand:	Dewei

Product Description

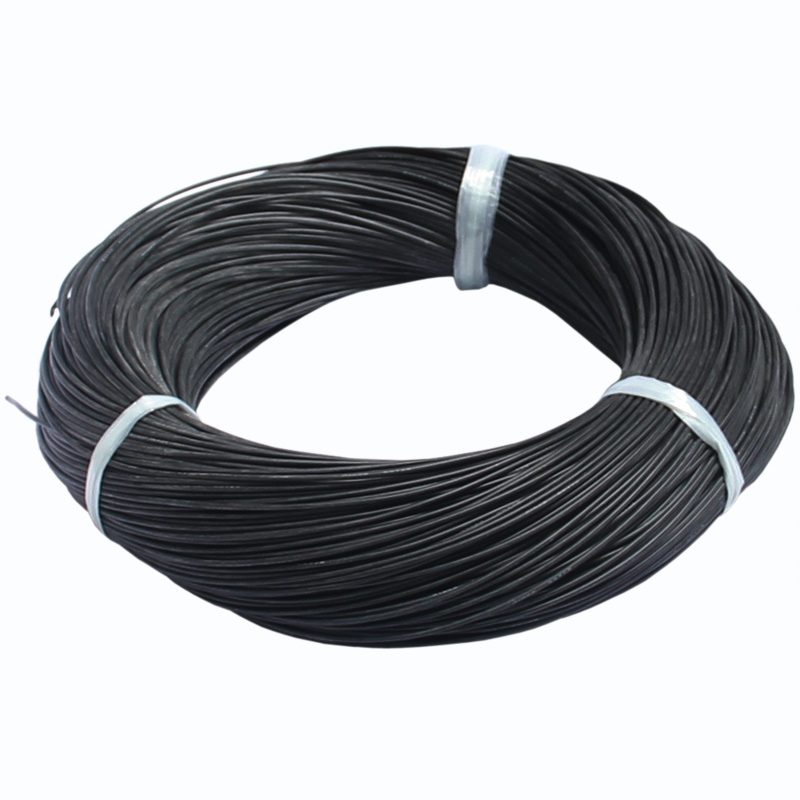

High Voltage Silicone Rubber Cable 24AWG with UL3239
1 Nominal Voltage: 3KV to 30KV
2 Nominal Temperature: -60~ +200ºC
3 Conductor: Bare copper or tinned copper strand together
4 Insulator: Silicone Rubber
5 Colors: White-Blue-Red-Black-Brown-Yellow/Green-Transparent
6 They are apply to Household appliance ,Illuminaiton &Lighting& Headlamp, electric machines , temperature sensor ,Military series , Metallurgy Chemical series ,Motor Cars&ships,,Electical Insulation,etc
7 Certificate: UL, REACH, RoHS, SGS,ISO9001:2008

Conductor construction :14*0.14mm
Contuctor diameter:0.60mm

In the 3KV Voltage
Insulation thinckness:0.5mm
Over diameter:1.60mm

In the 6KV Voltage
Insulation thinckness:0.7mm
Over diameter:2.00mm

In the 10KV Voltage
Insulation thinckness:1.0mm
Over diameter:2.60mm

In the 20KV Voltage
Insulation thinckness:1.3mm
Over diameter:3.2mm

In the 30KV Voltage
Insulation thinckness:1.7mm
Over diameter:4.0mm
Packing: 305m/coil

DONGGUAN DEWEI WIRE Co., Ltd, established in 2004, specializes in manufacturing various kinds of silicone sleeve and electrical cable: Silicone rubber wire, FEP wire, PFA wire, PTFE wire, ETFE wire, heating wire, braided wire, power cable, twin flat cable, coaxical cable, high temperature cable and high voltage cable which can meet the requirements of UL, VDE, CCC.

Besides, we set up a wire processing workshop to provide customers with well processed wire group and wire harness of the batteries, the brushes, electric adjustment, steering gear, all kinds of JST, AMP connector, T-type plugs, banana plugs etc,

We set up and implement quality management system strictly according to international standard ISO9000, and had been awarded the certification of AMT ISO 9001: 2008 in 2009.

Our philosophy is quality-oriented, continuous innovative, reputation first and to treat our clients sincerely. In the meantime we persist in providing our customers with competitive high-quality products, creating a belief that quality decides the survival of the company.

Welcome to visit and give advice, let' S work together and create brilliant future.
