Tianjin Zhongyijian Technology Co., Ltd. >> High Voltage Wireless Touching RGB LED Controller with CE, RoHS

High Voltage Wireless Touching RGB LED Controller with CE, RoHS

High Voltage Wireless Touching RGB LED Controller with CE, RoHS
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: JA-CON-TRF8B(T)-3CH-HV
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max. Load Power: 288W
Current: 3*2A
Warranty: 1
Application: Audio / Video Players
Signal Transmission: RF Remote Control
Type: Button

Product Description

Specifications

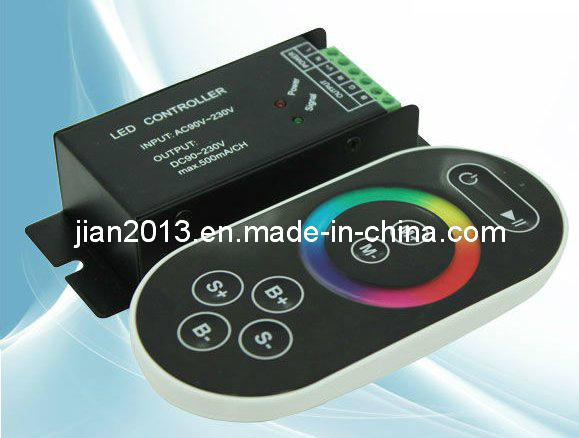

Wireless touching RGB LED controller
1. LED touch controller
2. Factory outlets
3. CE ROHS
4. AC90-230V input

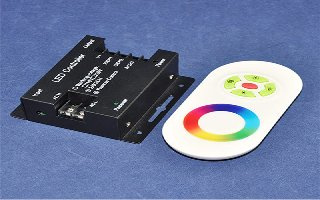

Wireless touching RGB LED controller

Technical Parameters

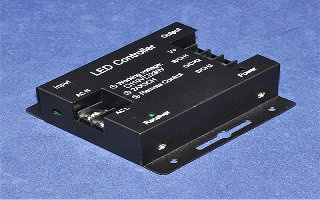

Controller

Working temperature: -20-60 ° C
Supply voltage: AC90-230V
Output voltage: AC90-230V
Output: Three N-MOS drain open-circuit output
Connection mode: Common anode
Static power consumption: <1W
Output current: ≤ 500mA ( each channel )
Output power: 110V: <165W, 220V: <330W
External dimension: L108 W42 H27 mm
Packing size: L135 W80 H50mm
Net weight: 130g
Gross weight: 150g

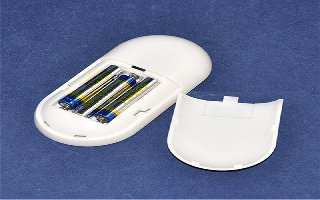

Touch remote control

Working temperature: -20-60° C
Power supply mode: AAA*3 battery
Supply voltage: 4.5V
Static power consumption: 0.015mW
Standby current: 3uA
Work current: 300uA
Emission current: 10mA
Remote distance: 20m
Standby time: 6 months
Model Number: JA-CON-TRF8B(T)-3CH-HVLength: L89*W70*H28mm
Rated Power: 288WHoliday Name: any day
Voltage: DC12V-24Voutput current: <500mA (each channel)
supply voltage: AC90-230Vgross weight:: 165g
remote distance: 20m
Tianjin Zhongyijian Technology Co., Ltd. Is a high technology enterprise located in Tianjin, China. Being a professional manufacturer, it is dedicated in designing, manufacturing and marketing of LED products.

Our products cover a wide range from components to finished products: LED flashlight, LED grow lamp, LED auto lamp, LED Strip, LED indoor light, LED panel light, LED floodlight, LED Bay light, LED outdoor light, LED Tube, LED auto lamp, LED Ceiling Lamp, LED underwater light, LED Acoustic Control Lamp and other related products, all our products comply with CE standards and RoHS Directives. Besides, we are also able to meet customer's special demands, if the customer has any idea about the LED light, we can realize it to products for you.

With the professional R & D engineers, advanced equipments, skillful workers, strict quality control system, excellent after-sales service, we provide to our customers high quality products with competitive price, more than 80% of our products are exported to international market, such as Italy, Germany, America, Australia, Sweden, United Kingdom, Norway etc., we have gained a good reputation from our customers in the world and established long term cooperation with them.

We believe that quality, price and service are the most important elements for the product, "TOTAL CUSTOMER SATISFACTION WITH OUR FULL HONESTY" is the principle of our enterprise, we hope to become your business partner and make mutual benefits together with you.
