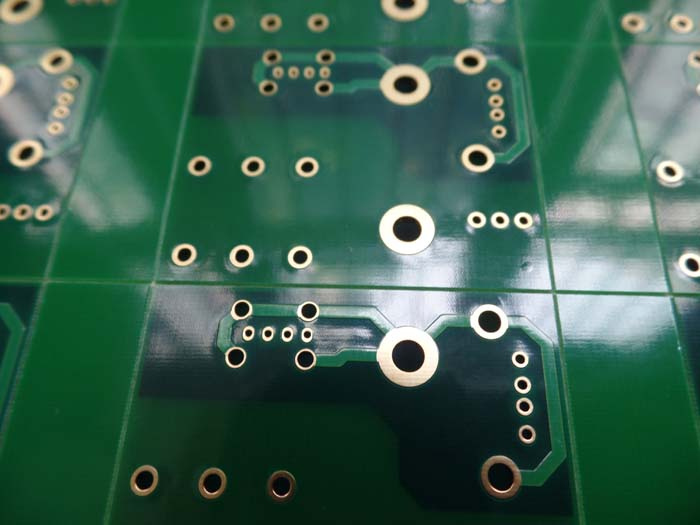

Hight CTI Fr-4 PCB Plated Radii (Castellation) Circuit Board

Name: Hight CTI Fr-4 PCB Plated Radii (Castellation) Circuit Board
Brand: all-electronics-online.com
SKU: 831620095
Availability: InStock
Rating: 4.3 (56 reviews)

Price:	US $ 2.05/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-571-V5.71
Final Foil External:	1.5 Oz
Final Height Of PCB:	0.6mm
Surface Finish:	Electroless Nickel Over Immersion Gold (Enig)
Solder Mask Color:	Green, Psr-2000gt600d, Taiyo Supplied.
Colour Of Component Legend:	White, Ijr-4000 MW300, Taiyo Supplied
Mininum Trace (Mil):	6.5 Mil
Minimum Gap(Mil):	8 Mil
Minimum / Maximum Holes:	0.4/4.5mm
Board Plating:	0.0030" (0.076mm)
Test:	100% Electrical Test Prior Shipment
Type:	Rigid Circuit Board
Flame Retardant Properties:	V0
Dielectric:	RO4350b
Material:	Hydrocarbon/Woven Glass
Insulation Materials:	Glass Reinforced Hydrocarbon

Product Description

Company Profile
Bicheng Enterprise Limited serves global clients from Shenzhen, China since 2003.

Comprehensive sales service through presale, in sale and after sale.
Quick CADCAM checking and free PCB quotation
Free-of-charge PCB panelization
Prototype PCB capability
Volume Production capability
Quick turn-around samples
Free-of-charge PCB test
Solid carton packing

High Frequency PCB

Flexible Printed Circuit

Metal Core PCB

PCB Board

PCB Development

Printed circuit board develops from single sided to double sided, multilayer and flexible, and still
maintain their own development trends. Due to the continuous development of high precision, high
density and high reliability, and constantly reduce the volume, reduce costs, improve performance,
making the printed circuit board in the future development of electronic equipment, still maintained
a strong vitality.
Review on the future development trend, the manufacturing technology of PCB mainly is
consistent, namely high density, high precision, small diameter, thin track, fine pitch, high reliable,
multilayer, high-speed transmission, light weight, thin direction. To improve productivity, reduce
costs, reduce pollution, adapt to many varieties and small batch production are the production
direction at the same time. The technology development level of printed circuit boards, it is
regarded with line width, PCB drill, aspect ratio as a representative.

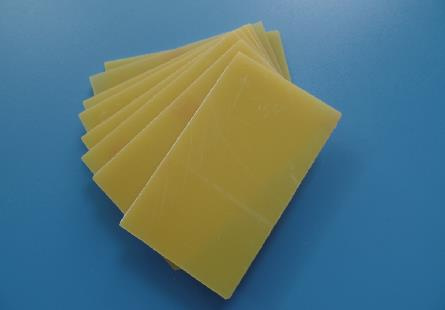

Different thickness of thin laminates

mm	mils	mm	mils
0.050	2	0.360	14
0.075	3	0.410	16
0.100	4	0.460	18
0.125	5	0.510	20
0.150	6	0.560	22
0.175	7	0.610	24
0.200	8	0.660	26
0.250	10	0.710	28
0.300	12	0.760	30

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

A) Various kinds of PCB products

Double sided PCB

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

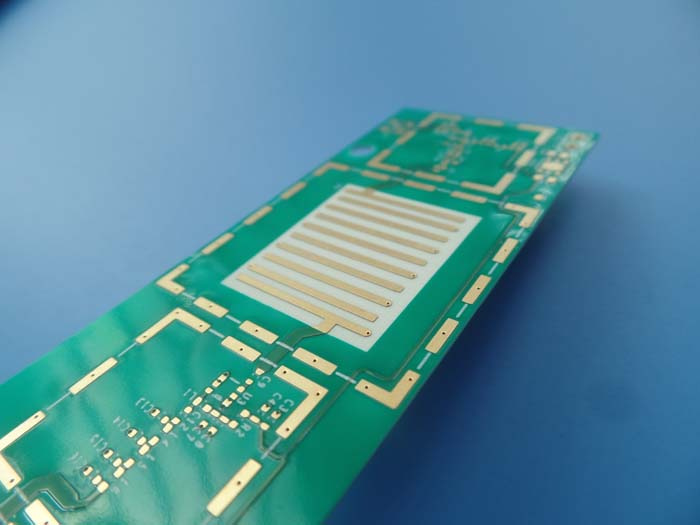

High frequency PCB (RO4350B, RO4003C)

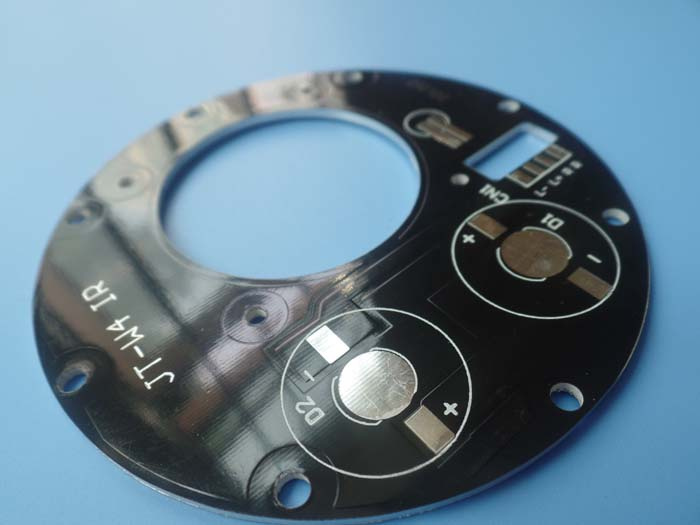

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

Impedance controlled PCB

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
