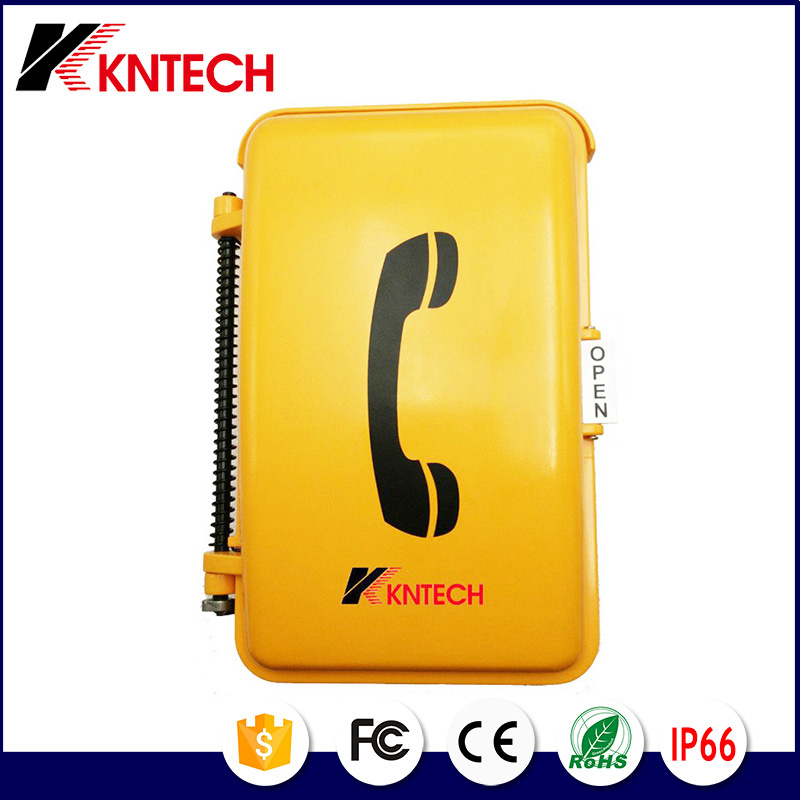

Highway SIP Phone Emergency Call System Public Communication Telephone

Prod Model:	KNSP-01
Cerficate:	RoHS, CCC, FCC, Ce
Color:	Yellow / OEM
Brand:	Koontech
Handset:	Yes
Vandal Resistant:	Yes
Warranty:	18 Months
Defend Grade:	IP66
Material:	Aluminium Alloy
Keypad:	Yes
Lightning Proof Protection:	Yes

Product Description

Highway SIP Phone Emergency Call System Public Communication Telephone

Main Product Features
1.Robust aluminium alloy die-cast body
2.Full keypad with memory, 10 button programmable speed-dial telephone, Illuminated button optional
3.Door cover:Orient automatically and good self - closing, convenient for use.
4.Weather resistant to IP67 standard, service temperature range from:-30' to +75'C
5.Magnetic reed hook-switch
6.Telephone line powered.No external power or battery back up required.
7.Lightening protection to ITU-T recommendation K.21
8.Handset:Made of special engineering plastic, high anti-knock resistance, Weatherproof, armoured cable optional,
9.Hearing Aid compatible receiver, Noise canceling microphone.
10.Handset integrity wiring to enable the telephone system to check if the telephone unit is still operational.
11.Vandal resistant and tamper-resistant hardware,
12.Easy installation/ replacement

Packaging specification

Machine size	320 *205*120( mm )
Carton size	439 *277 *191( mm )
Packaging material	Pearl cotton, carton
Gross weight	7.1KG
Net weight	5.3KG



Technical parameter
Ambient temperature	-30~+60°C
Defend grade	IP66
Relative humidity	10%--95%
Atmospheric pressure	86~106KPa
Circumstance noise	Less than 60dB(A)
Sound level of ringing	>70dB(A)
Standard frequency	697.770.852.941Hz
Call transmission index	(5KM)SLR<12,RLR<-1,STMR>10, output impedance is 600 Ohm.

More about us:
HongKong Koon Technology Ltd is the most professional manufacturer in Asia, The exclusive supplier for all Metro project in China.
We are the leading professional manufacture of most complete production line of IP66/IP67 emergency telephone, SOS phone, Weatherproof telephone, elevator telephone, tunnel trackside telephone, highway emergency phone.They are IP or PSTN/analogue telephone and wireless GSM 2G 3G. phone line powered, solar powered, or AC powered.
More than 100 models, different colors, different type of mounting, CE, FCC, IP66, ITU-T, ISO9001, EN50121 approvaled. ATEX DNV certificate under process.
Emergency telephone application:
indoor: Airprot, transtation, bank,koisk, elevator, university, hotel, hospital, plant, oil and gas.
outdoor: tunnel, highway, marine, outdoor station, construction, bridge, steel, mine, army, scenic region,
Successful project in recent:HK MTRC contract XRL851, LRT Project in Malaysia, Bangalore Metro, HONGKONG KAIDA tunnel,HK MTR,Italian Metro,BKK Red Line Thaliand,
IKITELLI metro project, Mumbai metro in Indea, NSR project in Saudi,BHP Billiton australia, CSN Brazil, Chalco China, story bridge Austrialia,HSBC bank, China bank, ICBC, HK airport, Frankfurt France, BeiJin airport, Beijin University, HK university, etc.
About 2017 Highway SIP Phone KNSP-01 Emergency Call System Public Communication Telephone market:
Our Emergency telephone waterproof telephone intercom system are widely accepted in countries in North America such as USA, Canada, in European countries such as UK, Germany, France, Netherlands, Greece, Sweden, Ireland, Swiss, Austria, Luxembourg, Belgium, Italy, Spain etc. and Russia.
