Hit & New Low Price RF RGB Color Focus LED Touch RGB Controller

Prod Model:	LN-CON-TRF8B(J)-3CH-LV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max. Load Power:	288W
Warranty:	3
Application:	Audio / Video Players
Signal Transmission:	RF Remote Control
Type:	Button
Universal:	Universal
Transmission Distance:	50-100m
Voltage:	12V
Material:	Rubber
Battery Type:	AAA Battery

Product Description

Specifications

Touch rgb controller:
1. Can realize multistage touch dimmer
2.64 kinds of mode function
3. Easy to use
4. CE & ROHS

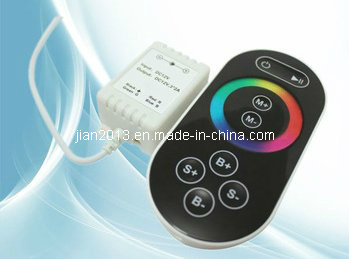

Touch rgb controller

Summarization
This product is a novel LED controller developed by our company which can realize multistage touch dimmer.
Adopting advanced touch design, through the panel controller combined with touch remote way, realize flexible
Control. Touch remote has good performance, beautiful, fashion, easy to use. This product suit for every occasions,
Such as: Point light source, flexible strip, wall washer lamp, glass curtain wall light and such lighting controller.


Main feature
1. Touch-button, ultrathin, light quality, protable.
2. Touch-key count up to 64, up to 64 kinds of mode function, small volume, more key funcation.
3. Easy to use, have color pulley touch screen, all sorts of design and color mode at a glance, can a single point also can continuous touch to realize color mode select, users can speedily choose the needed color, and the static and dynamic mode can change freely.
4. Auto dormancy function, the remote control is without buttons state more than 20 seconds, remote will automatic enter the standby state, realize save electricity, extending battery life.


Technical Parameters
Controller
Working temperature: -20-60° C
Supply voltage: DC5V, 12V, 18V, 24V optional(specify the required voltage on orders)
Output: 3 channels
Connection mode: Common anode
Static power consumption: <1W
Output current: <2A( each channel )
Output power: 5V: <30W, 12V: <72W, 24V: <144W
Controller dimension: L63W35H22 MM
Packing size: L105W65H40 mm
Net weight: 50g
Gross weight: 70g


Touch remote
Working temperature: -20-60° C
Power supply mode: AAA battery
Supply voltage: 1.5V*3
Static power consumption: 0.015mW
Standby current: 3uA
Work current: 300uA
Emission current: 12mA
Remote distance: 25m
Standby time: 6 months

Model Number: JA-CON-TRF8B(J)-3CH-LV	Type: Remote Control
Max. Load Power: 144w	Voltage: DC5V, 12V ,18V, 24V
rgb: driver	led: rf switch
led rgb: dimming rf controller	output current: <2A( each channel )
output power: 5V:<30W, 12V:<72W, 24V:<144W	supply voltage: DC5V, 12V ,18V, 24V optional
output: 3 channels
