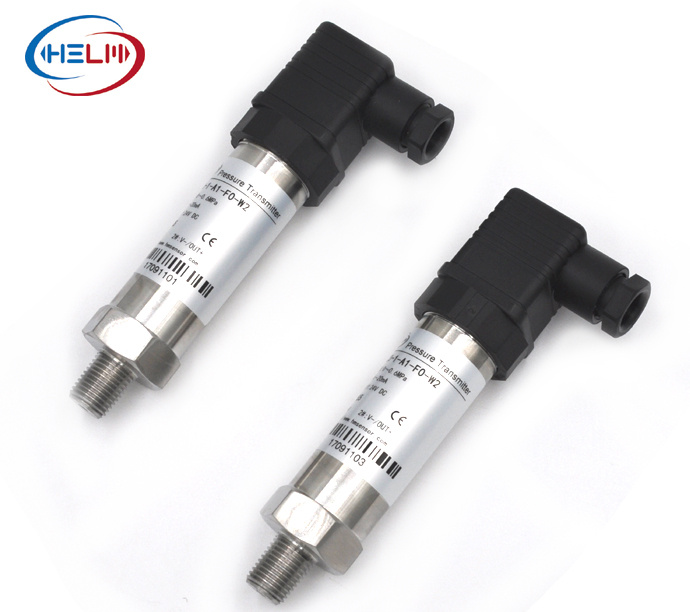

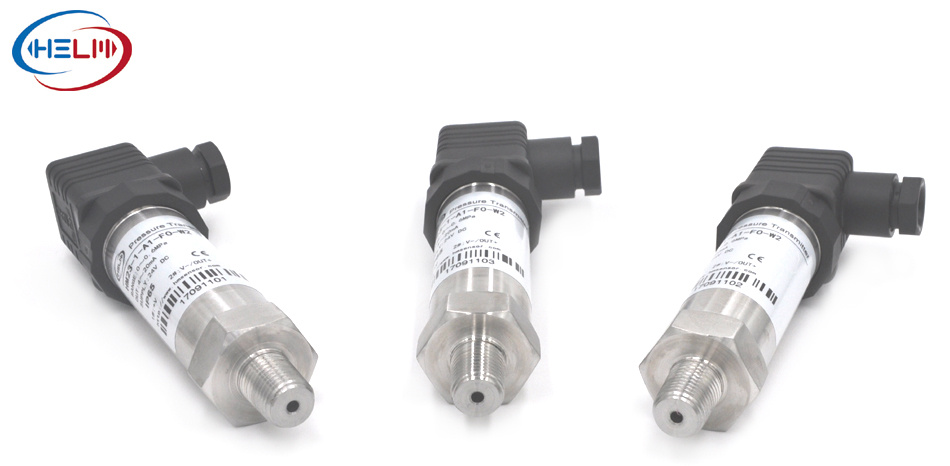

Hm23 Special Pressure Sensor for Air Conditioner, Refrigeration and Compressor, OEM 4~20mA

Name: Hm23 Special Pressure Sensor for Air Conditioner, Refrigeration and Compressor, OEM 4~20mA
Brand: all-electronics-online.com
SKU: 835879625
Availability: InStock
Rating: 4.7 (40 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

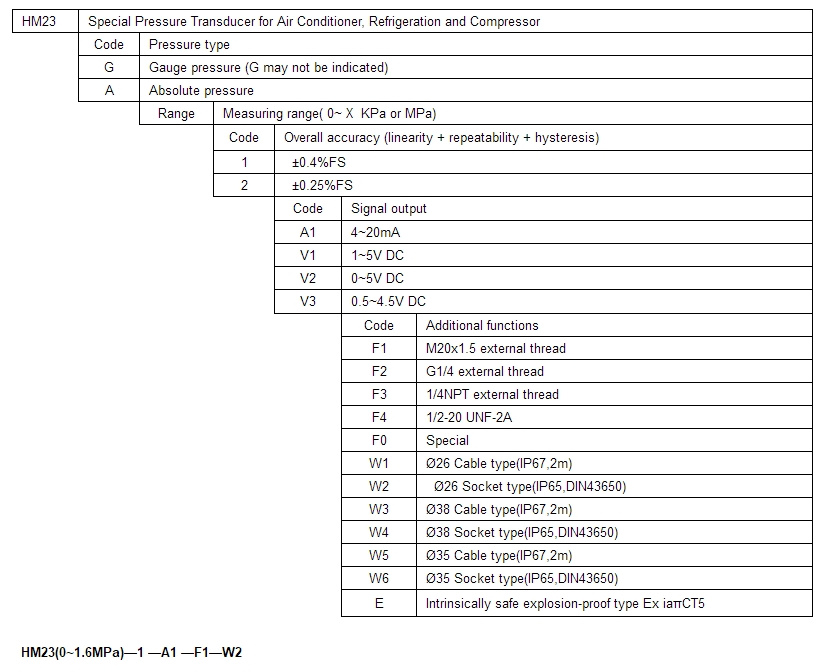

Prod Model:	HM23
Measuring Range:	0~100kpa...60MPa
Overload Capacity:	Two Times of Full Scale Pressure
Measuring Media:	The Gas or Liquid Compatible with 316 Stainless St
Medium Temperature:	-40~125ºC
Compensation Temperature:	-20 ~80ºC
Thermal Hysteresis:	±0.1%Fs(Typical Value)
Insulation Resistance:	> 100megohm, 100V DC
Vibration Stability:	Random 10g 10-2000Hz Sine 25g

Product Description

Product overview
HM23 series of pressure transducers is specially designed for accurate measurement of pressure for air conditioners, refrigeration and compressors as well as hydraulic system, including multiple refrigerants, mixture of refrigerant and lubricant, oil, water and gas etc.. It is designed and manufactured in an ODM way.

Product Features

∗The built-in stabilizer can make the product applicable to any unadjusted power supply within a certain range.

∗Solid structure and effective moisture-proof protection can ensure that the sensor may be installed and operated in very harsh environment.

∗Wide-range temperature compensation can effectively reduce the influence of ambient temperature and the temperature of measuring medium on the transducer

∗Excellent long-term stability.

∗Electromagnetic compatibility (EMC) protection meeting the relevant requirements of IEC.

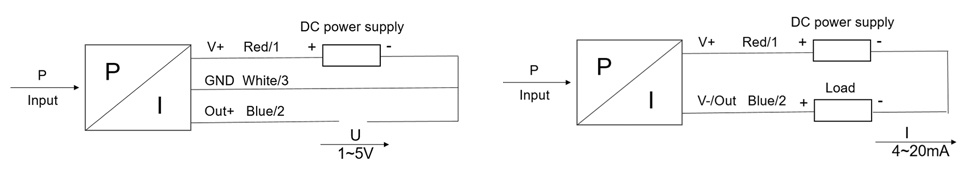

Electric Connection

Plug	Cable	4-20mA	1-5V/0~5V/0.5-4.5V DC
1	Red	Positive power supply: +V	Positive power supply: +V
2	Blue	Signal output / negative power supply: OUT/-V	Positive signal output: +OUT
3	White	Idle	Common port / power source end: GND/-V
4(⊥)	Yellow	Grounded in case of strong disturbance	Reliably grounded in case of strong disturbance

Certifications

Packaging & Shipping

Established in 2006, Nanjing Helm Sci-tech Co., Ltd. (Nanjing Jiucheng technology Co., Ltd) is specialized in R&D and production of pressure measuring and controlling instruments. It has introduced the internationally advanced production technology, equipment and process as well as strict product quality standards and ODM cooperation concept to China, so as to manufacture and sell JC pressure / differential pressure / liquid level sensors and transducers in mainland China.

Our products have been fallen into six categories totaling hundreds of specifications in dozens of series. Main products include: High-accuracy Pressure Sensor, General-purpose Pressure transducer, Liquid Level transducer, Anti-lightning/Anti-corrosive Liquid Level transducer, Special Pressure transducer for Air Conditioner, Refrigeration and Compressor, Special Pressure transducer for Oilfield and Mining Well, Economical Pressure Sensor and transducer, Ceramic Capacitor Pressure transducer, Vacuum Pressure transducer, Sapphire Pressure transducer, Digital Pressure transducer, Micro Differential Pressure / Air Pressure transducer, Intelligent Digital Pressure Gauge, Intelligent Digital Pressure Switch, Anti-corrosive Pressure transducer, Anti-explosive Pressure transducer, Hygienically Flat-membrane Pressure transducer, High-temperature Pressure transducer, High-frequency Pressure transducer, Micro Pressure transducer, Integrated Temperature transducer, and Capacitance Pressure transducer.
