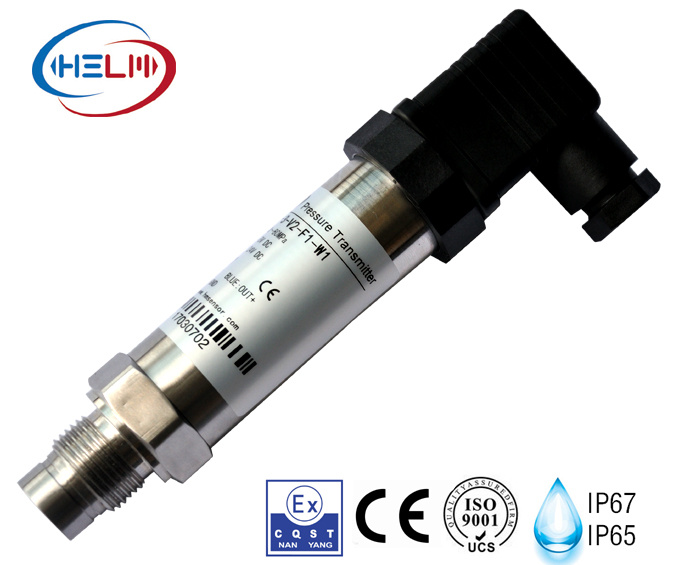

Hm23y Special Pressure Transmitter for Oilfield and Mining Well, High Accuracy High Stability Pressure Sensor

Name: Hm23y Special Pressure Transmitter for Oilfield and Mining Well, High Accuracy High Stability Pressure Sensor
Brand: all-electronics-online.com
SKU: 836842705
Availability: InStock
Rating: 4.7 (58 reviews)

Price:	US $ 130-230/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HM23Y

Product Description

Product Overview

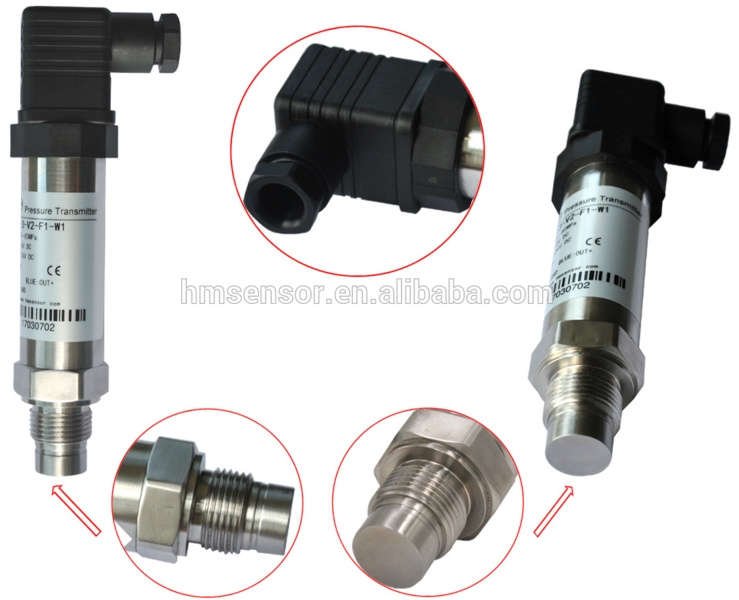

HM23Y Special Pressure Transducer for Oilfield and Mining Well is specially designed and manufactured for very harsh environment such as blocking pressure-guided holes by drilling mud as well as strong vibration during oilfield drilling and well logging. This transducer takes European advanced thin/thick sputtered film ceramic pressure sensors as sensitive elements for integration with electronic circuits. This type of pressure transducers is of fully stainless steel cylindrical structure and easy to operate. It is specially applicable for such viscous, easily blocked and strongly vibrating industrial sites as oil field logging, pharmacy and textilemanufacturing, etc.. Moreover, it has achieved desirable application effects in oil fields at home.

Features&Application

Product Features	Product Applications
•High temperature and high pressure	•Subsurface equipment for petroleum
•High accuracy and high stability	•Airspace and aerospace
•Vibration, impact and corrosion resistance and fully stainless steel structure	•Pharmaceutical, biochemical and fermentation systems
•Small volume, light weight, and direct process installation	•Other automatic control and detection systems

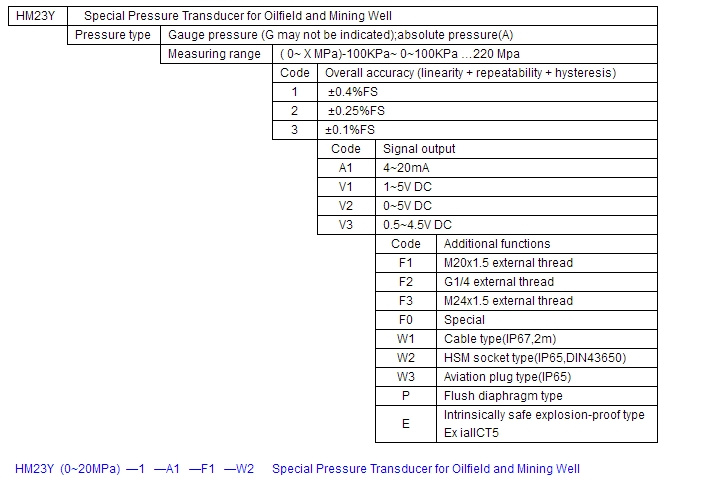

Tips for Type Selection:
1. The medium to be measured shall be compatible with the material contacting with the product.
2.As an additional function code for type selection, the code "E" for intrinsically safe explosion-proof type Ex ia II
CT5 denotes that power source must be supplied via safety barrier
3. For other special requirements, please discuss with us and clearly indicate them in the order.

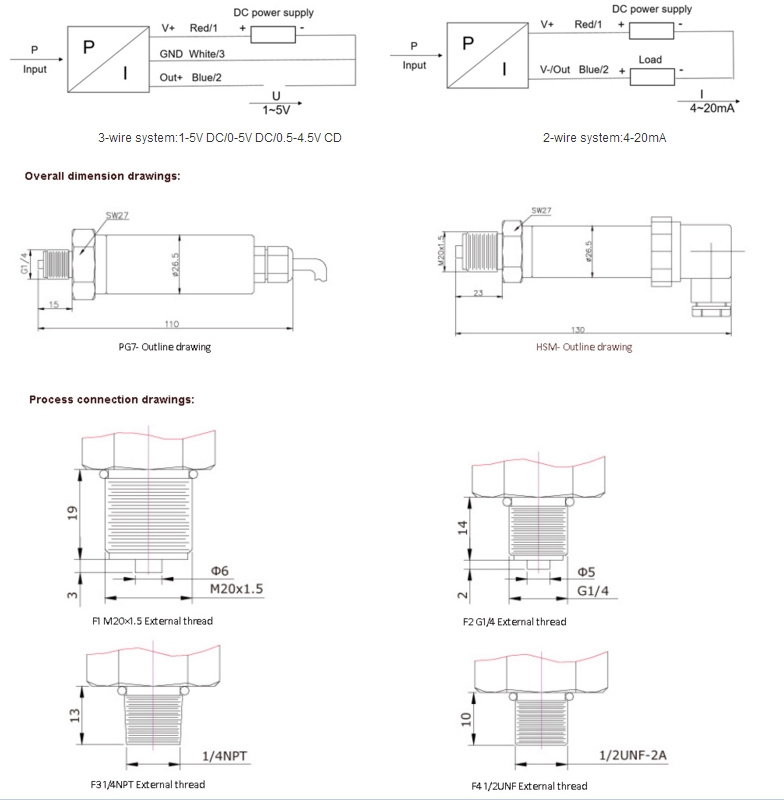

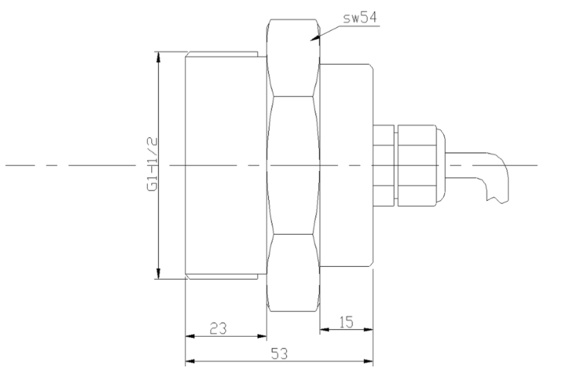

Dimensions

Electric connection

Plug	Cable	4-20mA	1-5V/0~5V/0.5-4.5V DC
1	Red	Positive power supply: +V	Positive power supply: +V
2	Blue	Signal output / negative power supply: OUT/-V	Positive signal output: +OUT
3	White	Idle	Common port / power source end: GND/-V
4(⊥)	Yellow	Grounded in case of strong disturbance	Reliably grounded in case of strong disturbance

Certifications

Packaging & Shipping

Established in 2006, Nanjing Helm Sci-tech Co., Ltd. (Nanjing Jiucheng technology Co., Ltd) is specialized in R&D and production of pressure measuring and controlling instruments. It has introduced the internationally advanced production technology, equipment and process as well as strict product quality standards and ODM cooperation concept to China, so as to manufacture and sell JC pressure / differential pressure / liquid level sensors and transducers in mainland China.

Our products have been fallen into six categories totaling hundreds of specifications in dozens of series. Main products include: High-accuracy Pressure Sensor, General-purpose Pressure transducer, Liquid Level transducer, Anti-lightning/Anti-corrosive Liquid Level transducer, Special Pressure transducer for Air Conditioner, Refrigeration and Compressor, Special Pressure transducer for Oilfield and Mining Well, Economical Pressure Sensor and transducer, Ceramic Capacitor Pressure transducer, Vacuum Pressure transducer, Sapphire Pressure transducer, Digital Pressure transducer, Micro Differential Pressure / Air Pressure transducer, Intelligent Digital Pressure Gauge, Intelligent Digital Pressure Switch, Anti-corrosive Pressure transducer, Anti-explosive Pressure transducer, Hygienically Flat-membrane Pressure transducer, High-temperature Pressure transducer, High-frequency Pressure transducer, Micro Pressure transducer, Integrated Temperature transducer, and Capacitance Pressure transducer.
