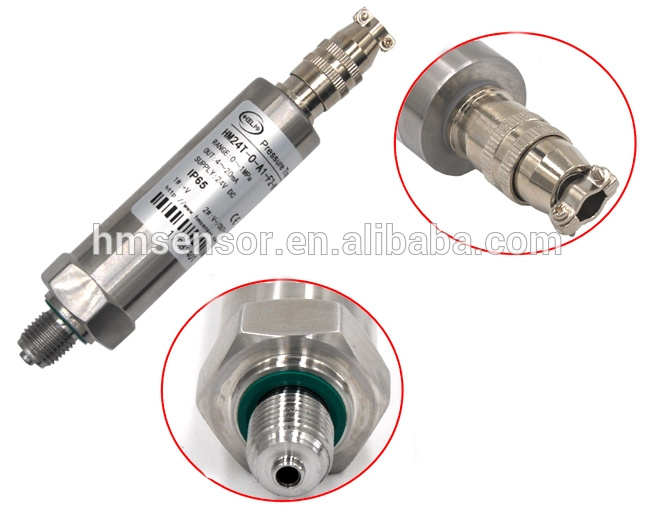

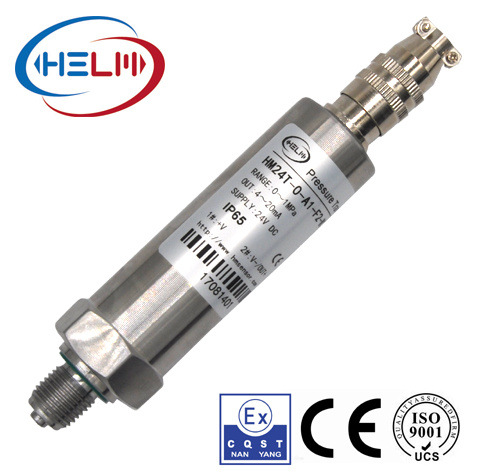

Hm24 (01) Economical Pressure Sensor and Transmitter, Gas Liquid Pressure Transmitter

Name: Hm24 (01) Economical Pressure Sensor and Transmitter, Gas Liquid Pressure Transmitter
Brand: all-electronics-online.com
SKU: 836842605
Availability: InStock
Rating: 4.9 (86 reviews)

Price:	US $ 40-78/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HM24(01)

Product Description

Features&Application
Product Features Product Applicantions
• Leakage protection • Refrigeration equipment --- Freon or ammonia
• Low-cost OEM • Energy and water treatment system
• Free of O-ring, silicone oil, and welding seam • Hydraulic and pneumatic system
• Single-piece integrated structure made of stainless steel • Automatic detection system
• Millivolt or standard signal output • Agricultural equipment
• High cost performance • Wide range of operating temperature • Pump and compressor

Specifications

Measuring range	0~100KPa...70MPa
Pressure type	Gauge pressure or absolute pressure
Permissible overpressure	Two times of full-scale pressure
Measuring media	The gas or liquid compatible with 316 stainless steel
Power supply	5V DC ;12~36 VDC (generally 24V DC)
Signal output	≥70mV DC;4-20mA, 1-5 V, 0~5 V, 0.5-4.5 V
Accuracy (nonlinearity + hysteresis + repeatability)	±0.5%FS(typical value)
Long-term stability	±0.25%FS/year
Range of operating temperature	-20~+85ºC
Range of compensation temperature	-10~+50ºC
Temperature performance	Zero temperature coefficient:±0.04%FS/ºC(typical) ; ±0.06%FS/ºC(maximum)
Temperature performance	Sensitivity temperature coefficient:±0.04%FS/ºC(typical) ; ±0.06%FS/ºC(maximum)
Thermal hysteresis	±0.1%FS(typical)

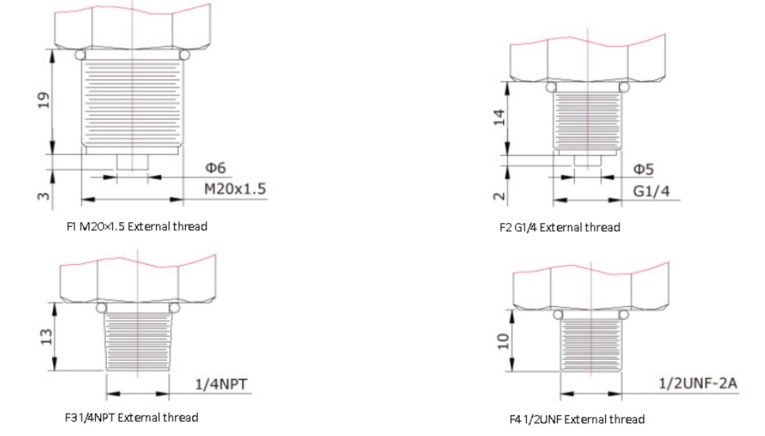

Electrical connection	PG7cable connection;Connector DIN43650
Enclosure protection class	IP67(cable type);IP65(socket type)
Response time(10%~90%)	≤3ms
Load resistance	≤(U-12)/0.02 Ω
Insulation resistance	100MΩ,500VDC
Safety and explosion protection	Ex ia II CT6
Vibration error	≤±0.01%FS(Axes X,Y,Z,200Hz/g)
Weight	Approx. 250g

Optional

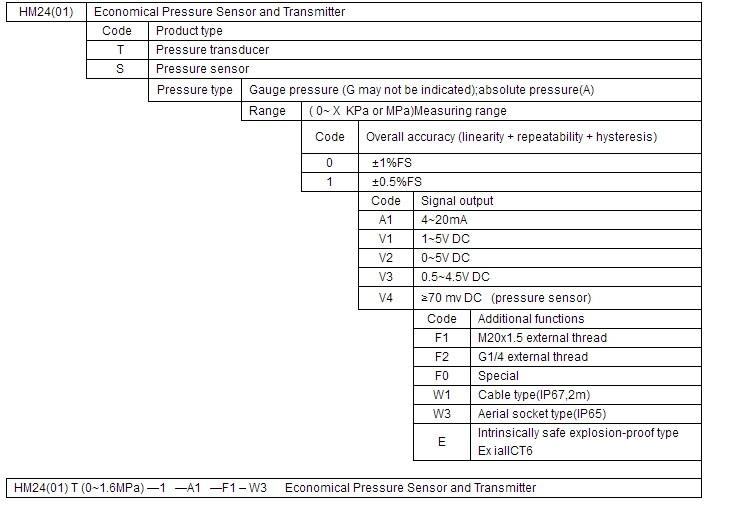

Tips for Type Selection:
1. The medium to be measured shall be compatible with the material contacting with the product.
2.As an additional function code for type selection, the code "E" for intrinsically safe explosion-proof type Ex iaIICT6 denotes that power source must be supplied via safety barrier
3. For other special requirements, please discuss with us and clearly indicate them in the order.

Certifications

Packaging & Shipping

Established in 2006, Nanjing Helm Sci-tech Co., Ltd. (Nanjing Jiucheng technology Co., Ltd) is specialized in R&D and production of pressure measuring and controlling instruments. It has introduced the internationally advanced production technology, equipment and process as well as strict product quality standards and ODM cooperation concept to China, so as to manufacture and sell JC pressure / differential pressure / liquid level sensors and transducers in mainland China.

Our products have been fallen into six categories totaling hundreds of specifications in dozens of series. Main products include: High-accuracy Pressure Sensor, General-purpose Pressure transducer, Liquid Level transducer, Anti-lightning/Anti-corrosive Liquid Level transducer, Special Pressure transducer for Air Conditioner, Refrigeration and Compressor, Special Pressure transducer for Oilfield and Mining Well, Economical Pressure Sensor and transducer, Ceramic Capacitor Pressure transducer, Vacuum Pressure transducer, Sapphire Pressure transducer, Digital Pressure transducer, Micro Differential Pressure / Air Pressure transducer, Intelligent Digital Pressure Gauge, Intelligent Digital Pressure Switch, Anti-corrosive Pressure transducer, Anti-explosive Pressure transducer, Hygienically Flat-membrane Pressure transducer, High-temperature Pressure transducer, High-frequency Pressure transducer, Micro Pressure transducer, Integrated Temperature transducer, and Capacitance Pressure transducer.
