Hm27g (01) Vacuum Pressure Transducer, Silicon Absolute Pressure Sensor, Gage Pressure Transmitter

Name: Hm27g (01) Vacuum Pressure Transducer, Silicon Absolute Pressure Sensor, Gage Pressure Transmitter
Brand: all-electronics-online.com
SKU: 836146265
Availability: InStock
Rating: 4.7 (102 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HM27G(01)

Product Description

Product overview
By use of a HELM mono-crystalline silicon thick-film sensor, HM27G negative pressure transducer is equipped with a high-accuracy signal processing circuit, with stable and reliable performance, which has solved such disadvantages of domestic diffused silicon-type negative pressure vacuum products as unstable signal and short service life. Normal ranges include 0 ~ 100KPa and 0 ~ 50KPa, etc..

Product Features
♦Fully provided with foreign high- accuracy sensing elements, with the maximum accuracy of up to 0.1% FS
♦Stable and reliable performance
♦Continuously operable for a long time, with good long- term stability
♦Applicable for measuring corrosive medium according to special requirements
♦Strong overloading resistibility
♦Fast response
♦Applicable for hazardous areas, with intrinsically safe explosion-proof type Ex ia II CT5
♦ With structural diversification, the product can be designed in an individualized manner as per customers' special requirements

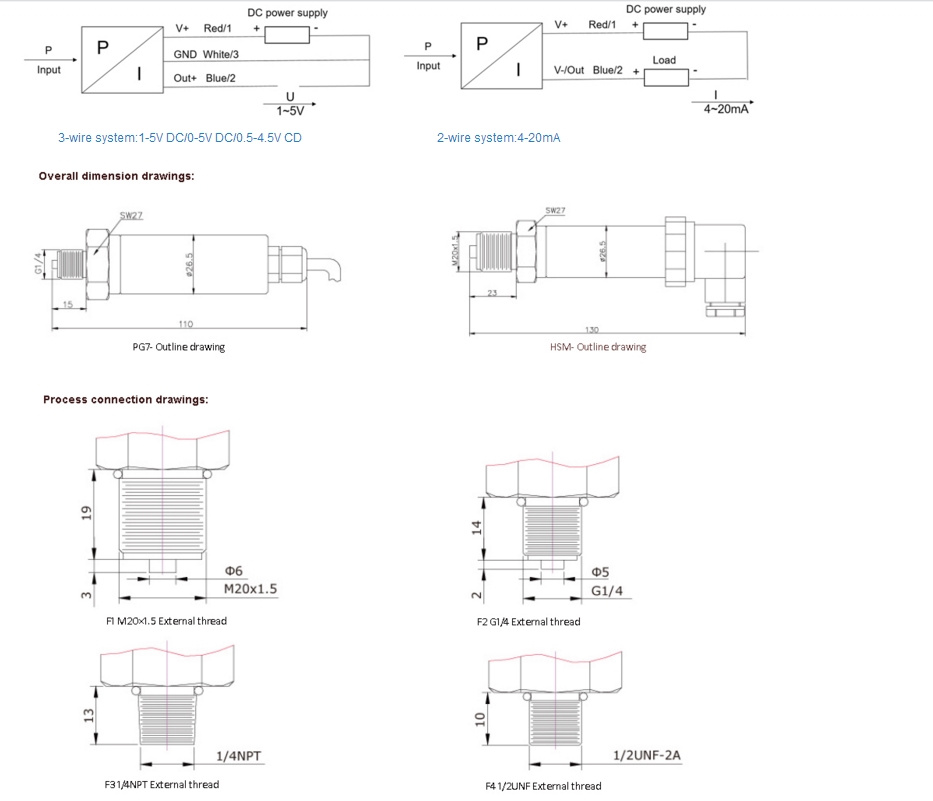

Electric Connection

Plug	Cable	4-20mA	1-5V/0~5V/0.5-4.5V DC
1	Red	Positive power supply: +V	Positive power supply: +V
2	Blue	Signal output / negative power supply: OUT/-V	Positive signal output: +OUT
3	White	Idle	Common port / power source end: GND/-V
4(⊥)	Yellow	Grounded in case of strong disturbance	Reliably grounded in case of strong disturbance

Certifications

Packaging & Shipping

Established in 2006, Nanjing Helm Sci-tech Co., Ltd. (Nanjing Jiucheng technology Co., Ltd) is specialized in R&D and production of pressure measuring and controlling instruments. It has introduced the internationally advanced production technology, equipment and process as well as strict product quality standards and ODM cooperation concept to China, so as to manufacture and sell JC pressure / differential pressure / liquid level sensors and transducers in mainland China.

Our products have been fallen into six categories totaling hundreds of specifications in dozens of series. Main products include: High-accuracy Pressure Sensor, General-purpose Pressure transducer, Liquid Level transducer, Anti-lightning/Anti-corrosive Liquid Level transducer, Special Pressure transducer for Air Conditioner, Refrigeration and Compressor, Special Pressure transducer for Oilfield and Mining Well, Economical Pressure Sensor and transducer, Ceramic Capacitor Pressure transducer, Vacuum Pressure transducer, Sapphire Pressure transducer, Digital Pressure transducer, Micro Differential Pressure / Air Pressure transducer, Intelligent Digital Pressure Gauge, Intelligent Digital Pressure Switch, Anti-corrosive Pressure transducer, Anti-explosive Pressure transducer, Hygienically Flat-membrane Pressure transducer, High-temperature Pressure transducer, High-frequency Pressure transducer, Micro Pressure transducer, Integrated Temperature transducer, and Capacitance Pressure transducer.
