Hm28 OEM Customized Mono- Crystalline Silicon Sapphire Pressure Transducer/Sensor, for High/ Low Temperature Liquid and Gas

Hm28 OEM Customized Mono- Crystalline Silicon Sapphire Pressure Transducer/Sensor, for High/ Low Temperature Liquid and Gas
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: HM28

Product Description

Product Overview
   HM28 Sapphire High-temperature Pressure Transducer adopts foreign high-accuracy sapphire pressure sensor and performs temperature and linear compensation through such high- patent technologies as specific signal extraction and peeling etc..The sapphire series is made up of mono- crystalline silicon insulated elements, without any hysteresis, fatigue and creeping. With excellent elastic and insulation characteristics, sapphire is insensitive to temperature change, and can keep good operating characteristic even at high temperature. Sapphire has quite strong radiation immunity characteristics . Furthermore, P - N drifting won't occur to silicon-sapphire semiconductor sensitive elements. Therefore, HM28 products can be extensively used for measuring and controlling high-temperature gas, liquid, fluid, and colloid in airspace and aerospace, petroleum, chemical, metallurgical, electric power, shipping, pharmaceutical, environment protection and scientific research fields, etc.. Therefore, it is ideal for the measurement of high-temperature medium.
Features&Application
  Product Features                                                                         Product Application
• High accuracy                                                                                 • Power plants,nuclear power plants,water conservancy&hydropower
• Anti-jamming design                                                                     • Scientific research and laboratory calibration
• Good stability:≤0.1%FS/year                                                        • Industrial field process pressure testing
• Intrinsically safe explosion-proof                                                 • Navigation and shipbuilding industry
• Wide range of medium temperature:-65~+200ºC                    • Petroleum and chemical industry
• Wide measuring range:-100KPa~0~4Kpa...260Mpa               • Airspace and aerospace field
• Good corrosive resistance: titanium- sapphire diaphragm    • Food industry

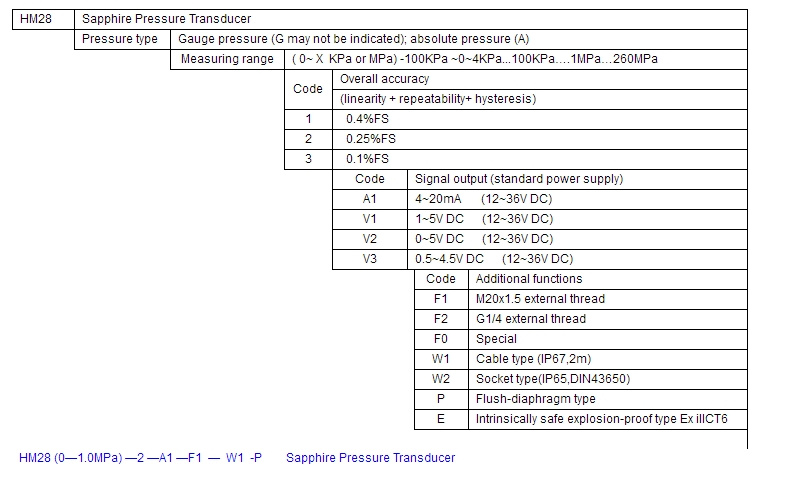

Product Selection

Tips for Type Selection
1. The medium to be measured shall be compatible with the material contacting with the product.
2.As an additional function code for type selection, the code "E" for intrinsically safe explosion-proof type Ex iaIICT6

denotes that power source must be supplied via safety barrier
3. For other special requirements, please discuss with us and clearly indicate them in the order.

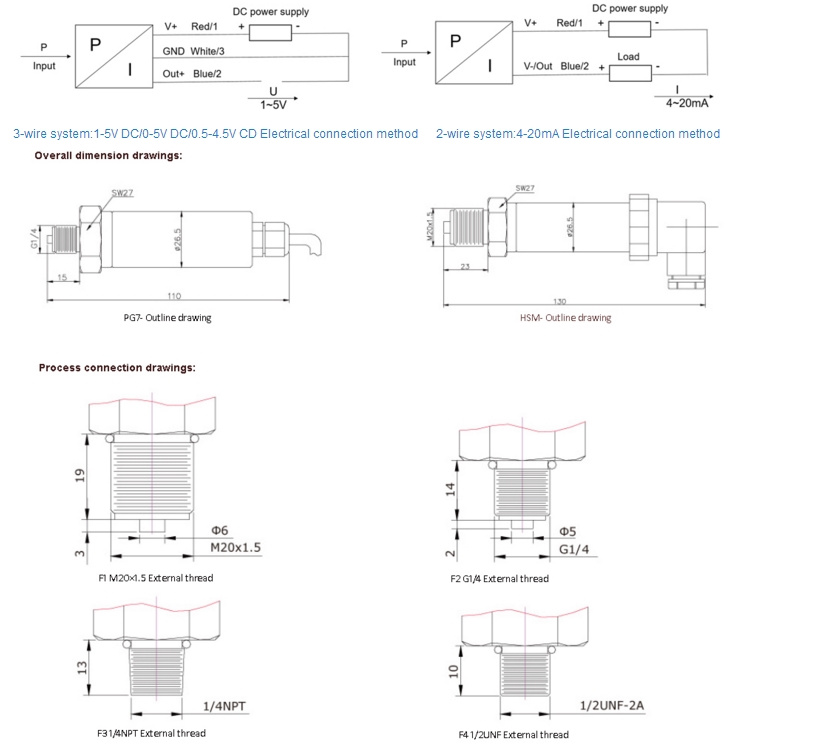

Electric Connection
PlugCable4-20mA1-5V/0~5V/0.5-4.5V DC
1RedPositive power supply: +VPositive power supply: +V
2BlueSignal output / negative power supply: OUT/-VPositive signal output: +OUT
3WhiteIdleCommon port / power source end: GND/-V
4()YellowGrounded in case of strong disturbanceReliably grounded in case of strong disturbance

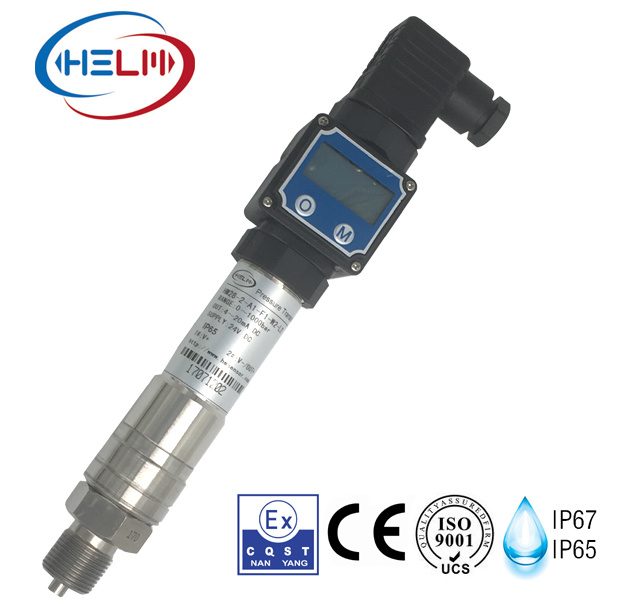

Certifications


Packaging & Shipping


Established in 2006, Nanjing Helm Sci-tech Co., Ltd. (Nanjing Jiucheng technology Co., Ltd) is specialized in R&D and production of pressure measuring and controlling instruments. It has introduced the internationally advanced production technology, equipment and process as well as strict product quality standards and ODM cooperation concept to China, so as to manufacture and sell JC pressure / differential pressure / liquid level sensors and transducers in mainland China.

Our products have been fallen into six categories totaling hundreds of specifications in dozens of series. Main products include: High-accuracy Pressure Sensor, General-purpose Pressure transducer, Liquid Level transducer, Anti-lightning/Anti-corrosive Liquid Level transducer, Special Pressure transducer for Air Conditioner, Refrigeration and Compressor, Special Pressure transducer for Oilfield and Mining Well, Economical Pressure Sensor and transducer, Ceramic Capacitor Pressure transducer, Vacuum Pressure transducer, Sapphire Pressure transducer, Digital Pressure transducer, Micro Differential Pressure / Air Pressure transducer, Intelligent Digital Pressure Gauge, Intelligent Digital Pressure Switch, Anti-corrosive Pressure transducer, Anti-explosive Pressure transducer, Hygienically Flat-membrane Pressure transducer, High-temperature Pressure transducer, High-frequency Pressure transducer, Micro Pressure transducer, Integrated Temperature transducer, and Capacitance Pressure transducer.
