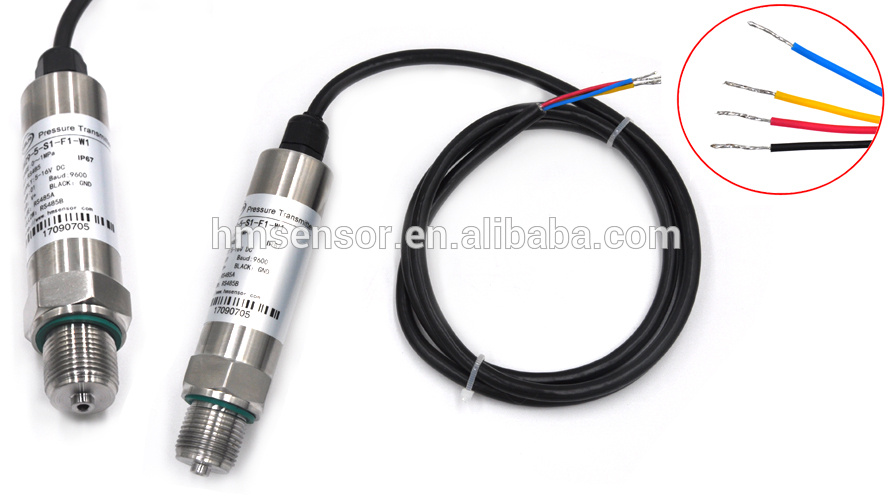

Hm29 Digital Intelligent Pressure Sensor, Differential Pressure Transducer, RS-232, 485, USB Output

Name: Hm29 Digital Intelligent Pressure Sensor, Differential Pressure Transducer, RS-232, 485, USB Output
Brand: all-electronics-online.com
SKU: 835886295
Availability: InStock
Rating: 4.7 (36 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

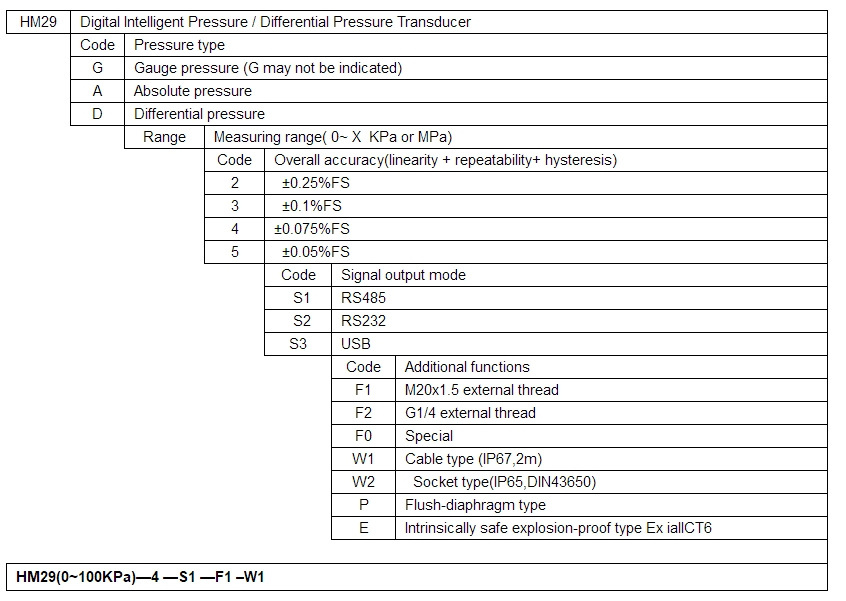

Prod Model:	HM29

Product Description

Product overview
HM29 Digital · Intelligent Pressure / Differential Pressure Transducer is a high-accuracy digital and intelligent product developed to meet the market needs of Chinese Mainland. This series product is elaborately designed by use of foreign sensor chips with the highest performance in combination with monolithic computer technology and sensor digital conversion technology. Its core component adopts 24-bit AD MCU microprocessor, strong function and high-speed operation capacity of which guarantee high quality of the transducer. Its overall design framework aims at reliability, stability, high accuracy and intelligentization, so as to meet the requirements of increasingly improved industrial field applications. Meanwhile, its supporting software also boasts strong functions, ensuring good interaction without manual control. Its application of digital signal processing technology provides the product with excellent antijamming capability. It's also provided with zero point automatic steady tracking capability and temperature automatic compensation capability.

Product Features

∗Embedded microprocessor - digital compensation, control and communication

∗Overall accuracy of up to ±0.05%FS

∗RS-232(485), USB digital output, directly connectable with the computer

∗Absolute pressure, gauge pressure and differential pressure

∗Direct communication with the computer via control software in Chinese as well as USB, RS232(485) interface, with easy operation

∗Optional or customizable multiple pressure units

∗Zero and full scale output setting

∗Sampling rate ranging from 10 points / second to 1 point / 50 minutes

∗20-bit effective resolution

∗Baud rate from 1200 to 230400 bps

∗The temperature of the measured medium can be read

∗Serial RS485 bus loops can connect up to 63 sensors

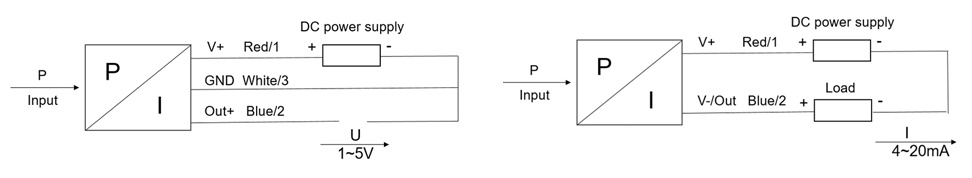

Electric connection

Plug	Cable	4-20mA	1-5V/0~5V/0.5-4.5V DC
1	Red	Positive power supply: +V	Positive power supply: +V
2	Blue	Signal output / negative power supply: OUT/-V	Positive signal output: +OUT
3	White	Idle	Common port / power source end: GND/-V
4(⊥)	Yellow	Grounded in case of strong disturbance	Reliably grounded in case of strong disturbance

Certifications

Packaging

Established in 2006, Nanjing Helm Sci-tech Co., Ltd. (Nanjing Jiucheng technology Co., Ltd) is specialized in R&D and production of pressure measuring and controlling instruments. It has introduced the internationally advanced production technology, equipment and process as well as strict product quality standards and ODM cooperation concept to China, so as to manufacture and sell JC pressure / differential pressure / liquid level sensors and transducers in mainland China.

Our products have been fallen into six categories totaling hundreds of specifications in dozens of series. Main products include: High-accuracy Pressure Sensor, General-purpose Pressure transducer, Liquid Level transducer, Anti-lightning/Anti-corrosive Liquid Level transducer, Special Pressure transducer for Air Conditioner, Refrigeration and Compressor, Special Pressure transducer for Oilfield and Mining Well, Economical Pressure Sensor and transducer, Ceramic Capacitor Pressure transducer, Vacuum Pressure transducer, Sapphire Pressure transducer, Digital Pressure transducer, Micro Differential Pressure / Air Pressure transducer, Intelligent Digital Pressure Gauge, Intelligent Digital Pressure Switch, Anti-corrosive Pressure transducer, Anti-explosive Pressure transducer, Hygienically Flat-membrane Pressure transducer, High-temperature Pressure transducer, High-frequency Pressure transducer, Micro Pressure transducer, Integrated Temperature transducer, and Capacitance Pressure transducer.
