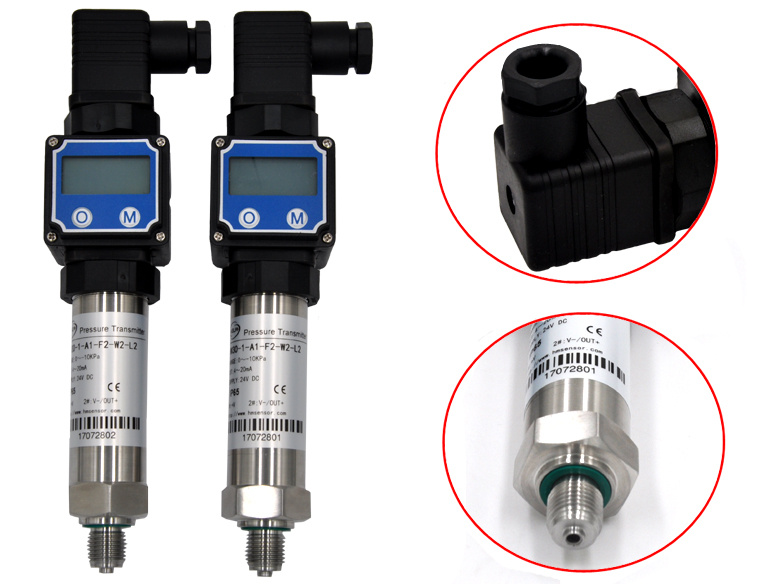

Hm30 (02) Micro Differential Pressure Transmitter, Air Pressure Sensor, 1~5VDC

Name: Hm30 (02) Micro Differential Pressure Transmitter, Air Pressure Sensor, 1~5VDC
Brand: all-electronics-online.com
SKU: 836844365
Availability: InStock
Rating: 5 (131 reviews)

Price:	US $ 76-225/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HM30(02)

Product Description

Product Overview
HM30(02) Micro Differential Pressure / Air Pressure Transducer adopts the circuit of normalized design and assembly process as well as unique sensor stress isolation technology, to convert the differential pressure signal of the measured medium into 4 ~ 20mA or 1 ~ 5V DC standard signal through temperature compensation and high-stability amplification process.

Features&Application

Product Features	Product Applications
•High performance cost ratio	•Underground ventilation monitoring
•From 0~0.5kpa to 0-700kpa	•HVAC
•Continuously adjustable zero point and range	•Hearth pressure or hearth negative pressure
•Reverse polarity protection and current-limiting protection	•Medial instruments and equipment
•Lightning and radio frequency immunity	•Purification equipment and cleaning engineering
•Fan measurement and control	•Dust control and environmental protection
•Normalized design and production guarantee stable quality and performance of the product	•Drying chamber pressure boosting and furnace ventilation control
•The product can be designed or improved as per customers' specific requirements	•Measurement of air pressure and flow rate in industrial process
•Compact structure, elegant appearance, and easy installation

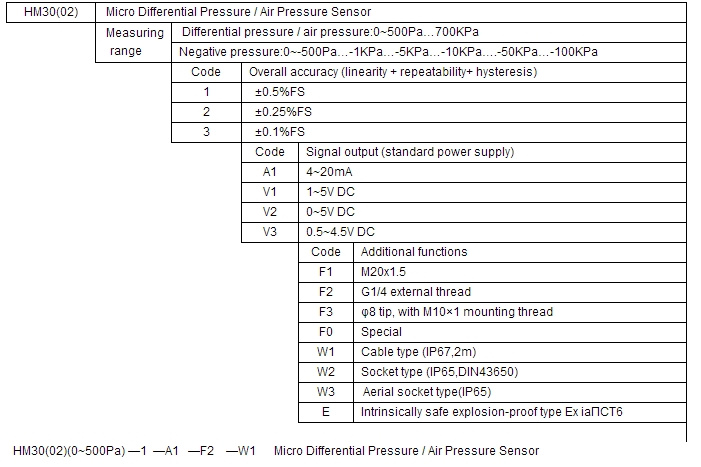

Tips for Type Selection:
1. If the medium to be measured contains dusty or wet gas, be sure to select supporting dust-proof dry filters for
connecting lines, and remove wet dust or make a replacement on time.
2. As an additional function code for type selection, the code "E" for intrinsically safe explosion-proof type Ex iaIICT6
denotes that power source must be supplied via safety barrier
3. For other special requirements, please discuss with us and clearly indicate them in the order.

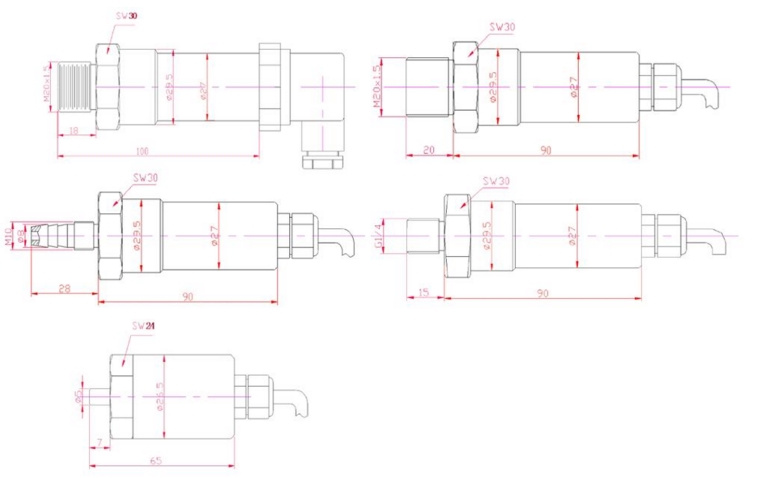

Dimensions

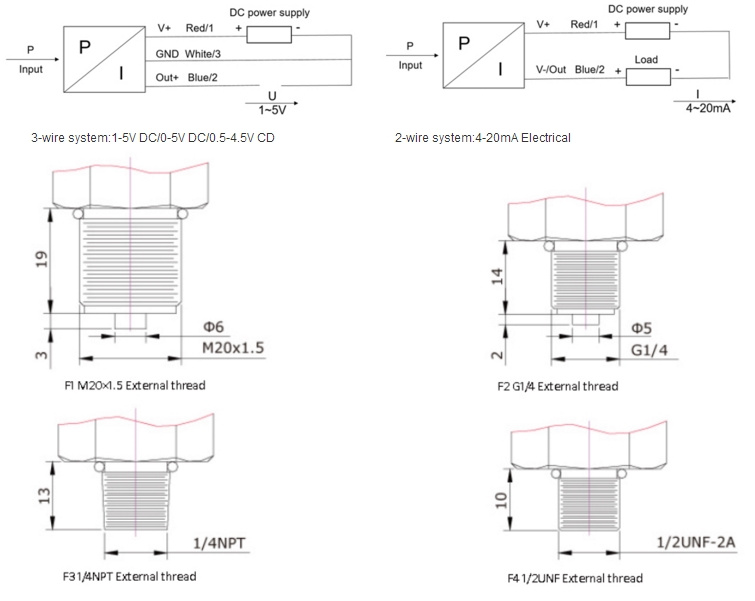

Electric Connection

Plug	Cable	4-20mA	1-5V/0~5V/0.5-4.5V DC
1	Red	Positive power supply: +V	Positive power supply: +V
2	Blue	Signal output / negative power supply: OUT/-V	Positive signal output: +OUT
3	White	Idle	Common port / power source end: GND/-V
4(⊥)	Yellow	Grounded in case of strong disturbance	Reliably grounded in case of strong disturbance

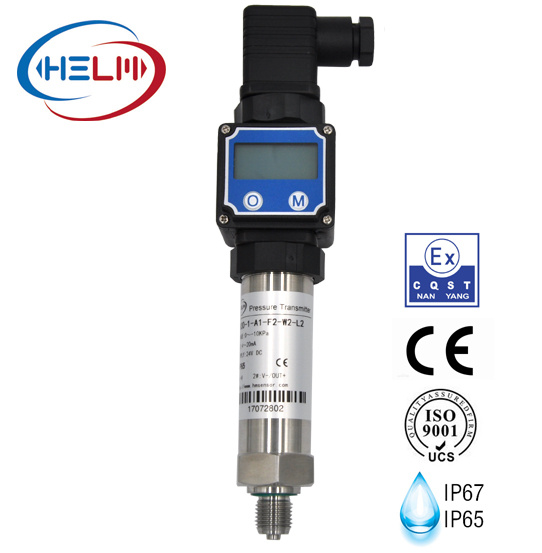

Certifications

Packaging & Shipping

Established in 2006, Nanjing Helm Sci-tech Co., Ltd. (Nanjing Jiucheng technology Co., Ltd) is specialized in R&D and production of pressure measuring and controlling instruments. It has introduced the internationally advanced production technology, equipment and process as well as strict product quality standards and ODM cooperation concept to China, so as to manufacture and sell JC pressure / differential pressure / liquid level sensors and transducers in mainland China.

Our products have been fallen into six categories totaling hundreds of specifications in dozens of series. Main products include: High-accuracy Pressure Sensor, General-purpose Pressure transducer, Liquid Level transducer, Anti-lightning/Anti-corrosive Liquid Level transducer, Special Pressure transducer for Air Conditioner, Refrigeration and Compressor, Special Pressure transducer for Oilfield and Mining Well, Economical Pressure Sensor and transducer, Ceramic Capacitor Pressure transducer, Vacuum Pressure transducer, Sapphire Pressure transducer, Digital Pressure transducer, Micro Differential Pressure / Air Pressure transducer, Intelligent Digital Pressure Gauge, Intelligent Digital Pressure Switch, Anti-corrosive Pressure transducer, Anti-explosive Pressure transducer, Hygienically Flat-membrane Pressure transducer, High-temperature Pressure transducer, High-frequency Pressure transducer, Micro Pressure transducer, Integrated Temperature transducer, and Capacitance Pressure transducer.
