Product Description
Product overview

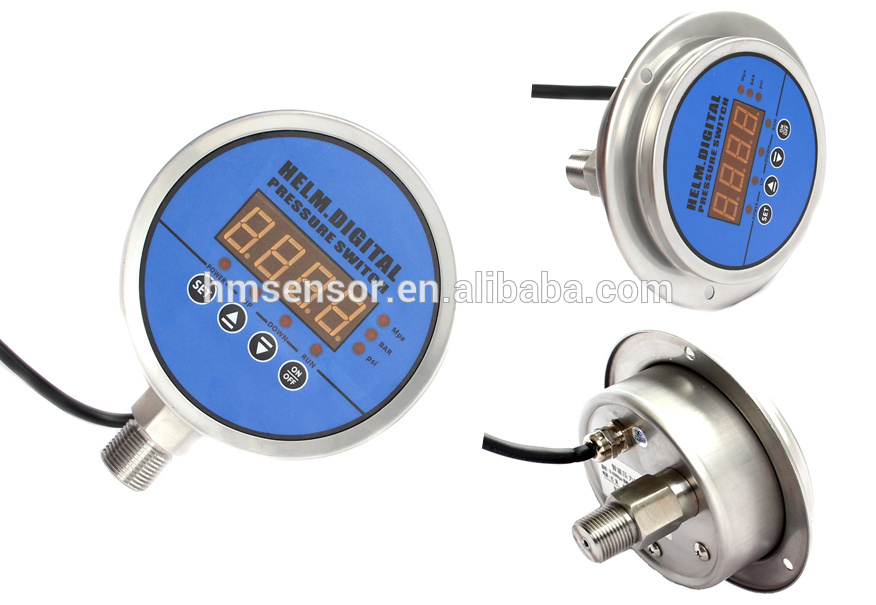

HM41 intelligent digital pressure switch / vacuum pressure switch is a high-end high-standard supporting accessory designed for customers. It is developed and manufactured by our company in cooperation with foreign companies. The pressure signal is sent to the microprocessor by using high-precision microprocessor-controlled pressure gauge and high-precision signal processor and the pressure sensor used is the high-precision high-stability product of HELM company, which is compatible with the intelligent pressure switch and electronic equipment.
This intelligent digital pressure switch is an intelligent control instrument integrating pressure measurement, display and control. It is featured by simple operation, good shock resistance, high control precision, adjustable control range and long service life.
It has excellent circuit design and high stability, takes full account of the complexity of the automation site, and is provided with strong anti-interference protection, anti-surge protection, reverse connection protection, etc.. This product can carry signal output, such as 4-20mA, 0-5VDC, RS485 to meet different industrial and mining needs.
Application&Features
Product Application
∗Equipment automation ∗Engineering machinery ∗Medical equipment ∗Pumps and compressors
∗Energy and heat supply ∗Supporting accessory of instruments ∗Pressure laboratory
∗Machinery and electronics industry ∗Hydraulic and pneumatic systems
Product Features
∗Measuring range
N: 0~-1KPa, -10KPa, -20KPa, -30KPa...-100KPa, optional in the range
G: 0~1KPa, 5KPa, 10KPa, 100KPa, 1MPa...100MPa, optional in the range
A: 0~2KPa, 5KPa, 10KPa, 100KPa, 1MPa...3.5MPa, optional in the range
C: -1KPa~1KPa, -10KPa~10KPa, -100KPa~20MPa, optional in the range
∗Stainless steel dials in different diameters are available and installed axially or radially.
∗Different modes of power supply meet different working conditions.
∗4-digit LED digital display shows the real-time pressure.
∗The sensitive element imported from Germany is featured by excellent anti-corrosion, anti-impact, overload, anti-vibration and anti-wear performance.
∗Wide operating temperature range, high overall measurement accuracy, good long-term stability, rapid response and convenient adjustment.
∗It has dual relay signal output with normally open and closed contacts and the alarm point can be set randomly.
∗Normalized design and production have ensured the advanced nature, practicality and quality stability of the product.
∗Wide measuring range: vacuum ~100MPa, with the positive & negative gauge pressure ranges.
Certifications
Packaging & Shipping
Established in 2006, Nanjing Helm Sci-tech Co., Ltd. (Nanjing Jiucheng technology Co., Ltd) is specialized in R&D and production of pressure measuring and controlling instruments. It has introduced the internationally advanced production technology, equipment and process as well as strict product quality standards and ODM cooperation concept to China, so as to manufacture and sell JC pressure / differential pressure / liquid level sensors and transducers in mainland China.
Our products have been fallen into six categories totaling hundreds of specifications in dozens of series. Main products include: High-accuracy Pressure Sensor, General-purpose Pressure transducer, Liquid Level transducer, Anti-lightning/Anti-corrosive Liquid Level transducer, Special Pressure transducer for Air Conditioner, Refrigeration and Compressor, Special Pressure transducer for Oilfield and Mining Well, Economical Pressure Sensor and transducer, Ceramic Capacitor Pressure transducer, Vacuum Pressure transducer, Sapphire Pressure transducer, Digital Pressure transducer, Micro Differential Pressure / Air Pressure transducer, Intelligent Digital Pressure Gauge, Intelligent Digital Pressure Switch, Anti-corrosive Pressure transducer, Anti-explosive Pressure transducer, Hygienically Flat-membrane Pressure transducer, High-temperature Pressure transducer, High-frequency Pressure transducer, Micro Pressure transducer, Integrated Temperature transducer, and Capacitance Pressure transducer.
