Hm50 (01) Anti-Corrosive Pressure Sensor, Strong and Weak Corrosive Gas or Liquid Sensor

Name: Hm50 (01) Anti-Corrosive Pressure Sensor, Strong and Weak Corrosive Gas or Liquid Sensor
Brand: all-electronics-online.com
SKU: 835879195
Availability: InStock
Rating: 4.8 (54 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

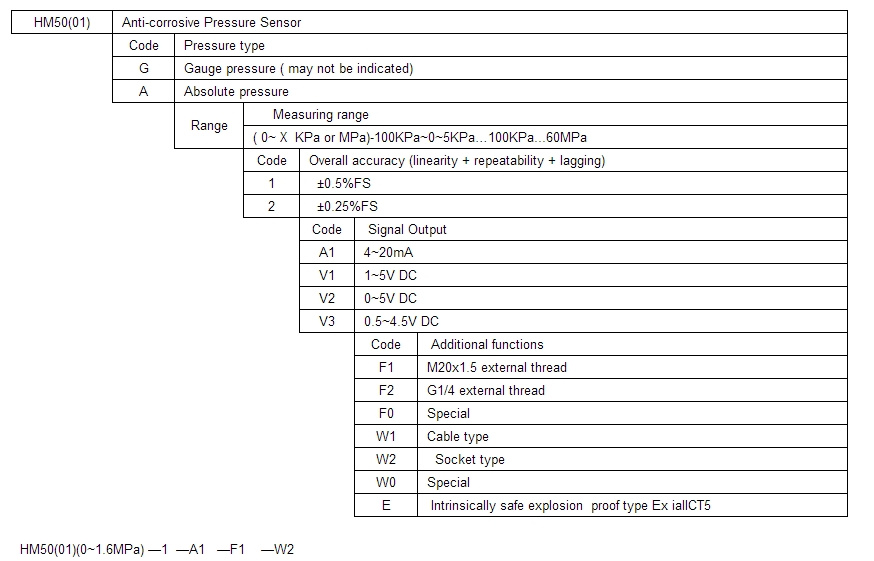

Prod Model:	HM50(01)

Product Description

Product overview
HM50(01) anti-corrosive pressure transducer adopts foreign high-performance anti-corrosive tantalum diaphragm force-sensing chip, supported with high-precision electronic element. It is assembled through strict process flow. Featured by strong corrosive and wear resistance etc, this series of product has very well solved the pressure measurement problems of strong and weak corrosive gas or liquid under domestic special applications.

Product Features

∗Tantalum diaphragm piezoresistive chip, with very strong corrosive resistance

∗Resistant to impact, vibration and wear

∗High accuracy: 0.25% FS 0.5%FS

∗Good stability: ≤0.2% FS / year, ≤0.02% FS / ºC

∗Without production process pollution; without any force transmission filling liquid

∗The enclosure can be made of PVC, titanium alloy or PTFE, depending on the customer's medium corrosion.

Electric connection

Plug	Cable	4-20mA	1-5V/0~5V/0.5-4.5V DC
1	Red	Positive power supply: +V	Positive power supply: +V
2	Blue	Signal output / negative power supply: OUT/-V	Positive signal output: +OUT
3	White	Idle	Common port / power source end: GND/-V
4(⊥)	Yellow	Grounded in case of strong disturbance	Reliably grounded in case of strong disturbance

Certifications

Packaging & Shipping

Established in 2006, Nanjing Helm Sci-tech Co., Ltd. (Nanjing Jiucheng technology Co., Ltd) is specialized in R&D and production of pressure measuring and controlling instruments. It has introduced the internationally advanced production technology, equipment and process as well as strict product quality standards and ODM cooperation concept to China, so as to manufacture and sell JC pressure / differential pressure / liquid level sensors and transducers in mainland China.

Our products have been fallen into six categories totaling hundreds of specifications in dozens of series. Main products include: High-accuracy Pressure Sensor, General-purpose Pressure transducer, Liquid Level transducer, Anti-lightning/Anti-corrosive Liquid Level transducer, Special Pressure transducer for Air Conditioner, Refrigeration and Compressor, Special Pressure transducer for Oilfield and Mining Well, Economical Pressure Sensor and transducer, Ceramic Capacitor Pressure transducer, Vacuum Pressure transducer, Sapphire Pressure transducer, Digital Pressure transducer, Micro Differential Pressure / Air Pressure transducer, Intelligent Digital Pressure Gauge, Intelligent Digital Pressure Switch, Anti-corrosive Pressure transducer, Anti-explosive Pressure transducer, Hygienically Flat-membrane Pressure transducer, High-temperature Pressure transducer, High-frequency Pressure transducer, Micro Pressure transducer, Integrated Temperature transducer, and Capacitance Pressure transducer.
