Hm600-1-24 Economical Pressure Transmitter, Pressure Sensor, Low Cost OEM, Micro-Melting
| Price: |
US $ 23-37/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
Product Description

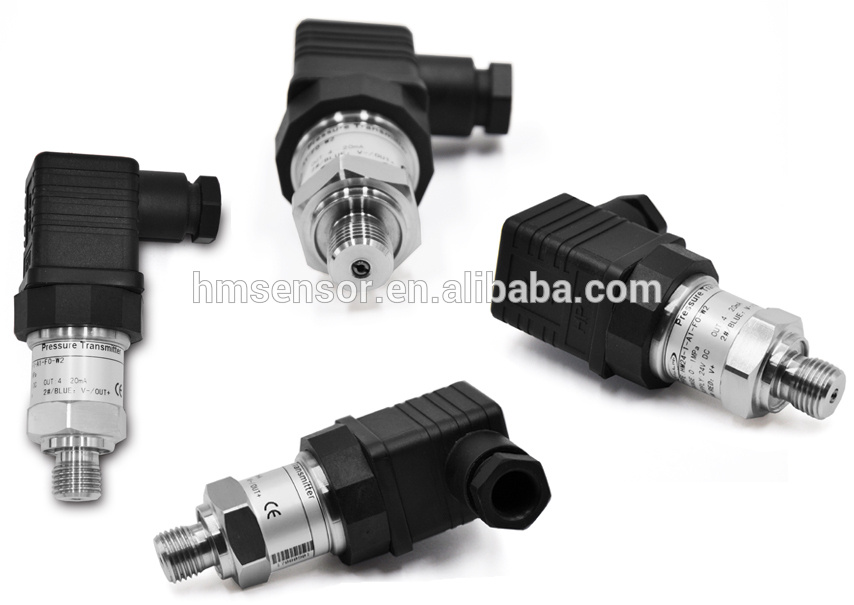

Product overview HM600-1-24 Economical Pressure Sensor and Transducer is a civil and industrial product with large consumption and low costs, for which a new standard of cost performance has been established. This series of products is widely used for pneumatic and hydraulic detection even in very harsh medium environment such as sewage, vapor, slight corrosive liquid and gas.
HM600-1-24 series is designed with foreign advanced micro-machined silicon pressure-sensitive resistance metal membranes. Micro-melting technology is adopted to solidify the high-temperature glass on the stainless steel isolating membrane. Glass cementation avoids the influence of temperature, humidity, mechanical fatigue and medium on the adhesive and material, thus enhancing long-term stability of the sensor in industrial environment. Meanwhile, the effect of P - N junction in a conventional micromechanical sensor can also be avoided.
Specification| Permissible overpressure | Two times of full-scale pressure |
| Measuring media | The gas or liquid compatible with 316 stainless steel |
| Power supply | 5V DC ;12~36 VDC (generally 24V DC) |
| Long-term stability | ±0.25%FS/year |
| Range of operating temperature | -20~+85ºC |
| Range of compensation temperature | -10~+50ºC |
| Zero temperature coefficient | ±0.04%FS/ºC(typical) ; ±0.06%FS/ºC(maximum) |
| Sensitivity temperature coefficient | ±0.04%FS/ºC(typical) ; ±0.06%FS/ºC(maximum) |
| Thermal hysteresis | ±0.1%FS(typical) |
| Electrical connection | PG7cable connection;Connector DIN43650 |
| Response time(10%~90%) | ≤3ms |
| Load resistance | ≤(U-12)/0.02 Ω |
| Insulation resistance | 100MΩ,500VDC |
| Vibration error | ≤±0.01%FS(Axes X,Y,Z,200Hz/g) |
| Weight | Approx. 250g |

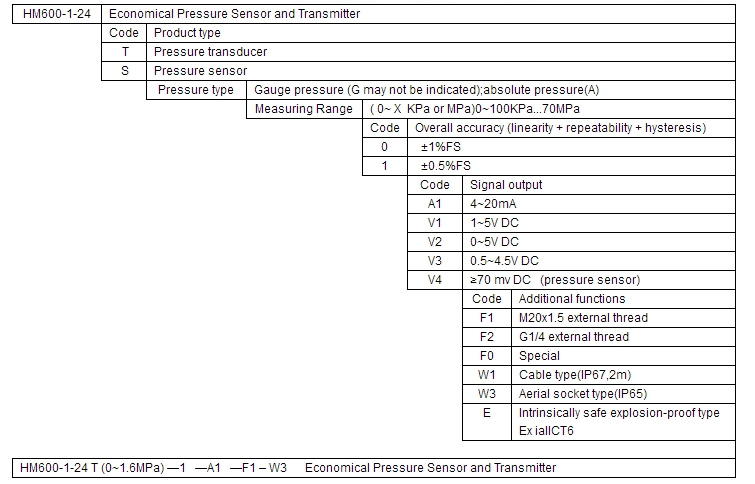

Tips for Type Selection:
1. The medium to be measured shall be compatible with the material contacting with the product.
2. As an additional function code for type selection, the code "E" for intrinsically safe explosion-proof type ExiaIICT6 denotes that power source must be supplied via safety barrier

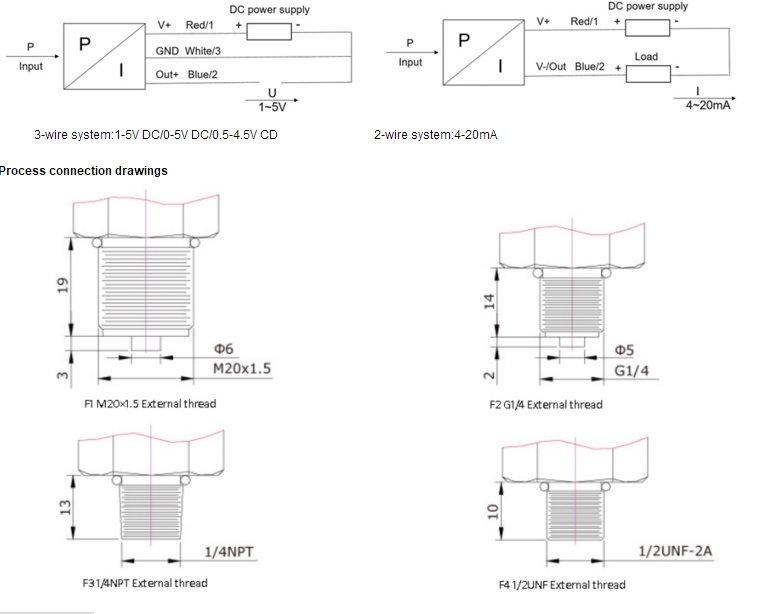

3. For other special requirements, please discuss with us and clearly indicate them in the order.Electric Connection| Plug | Cable | 4-20mA | 1-5V/0~5V/0.5-4.5V DC |
| 1 | Red | Positive power supply: +V | Positive power supply: +V |
| 2 | Blue | Signal output / negative power supply: OUT/-V | Positive signal output: +OUT |
| 3 | White | Idle | Common port / power source end: GND/-V |
| 4(⊥) | Yellow | Grounded in case of strong disturbance | Reliably grounded in case of strong disturbance |
Certifications
Packaging & Shipping
Established in 2006, Nanjing Helm Sci-tech Co., Ltd. (Nanjing Jiucheng technology Co., Ltd) is specialized in R&D and production of pressure measuring and controlling instruments. It has introduced the internationally advanced production technology, equipment and process as well as strict product quality standards and ODM cooperation concept to China, so as to manufacture and sell JC pressure / differential pressure / liquid level sensors and transducers in mainland China.
Our products have been fallen into six categories totaling hundreds of specifications in dozens of series. Main products include: High-accuracy Pressure Sensor, General-purpose Pressure transducer, Liquid Level transducer, Anti-lightning/Anti-corrosive Liquid Level transducer, Special Pressure transducer for Air Conditioner, Refrigeration and Compressor, Special Pressure transducer for Oilfield and Mining Well, Economical Pressure Sensor and transducer, Ceramic Capacitor Pressure transducer, Vacuum Pressure transducer, Sapphire Pressure transducer, Digital Pressure transducer, Micro Differential Pressure / Air Pressure transducer, Intelligent Digital Pressure Gauge, Intelligent Digital Pressure Switch, Anti-corrosive Pressure transducer, Anti-explosive Pressure transducer, Hygienically Flat-membrane Pressure transducer, High-temperature Pressure transducer, High-frequency Pressure transducer, Micro Pressure transducer, Integrated Temperature transducer, and Capacitance Pressure transducer.
