Hm600-2-20 General-Purpose Pressure Transmitter, OEM Liquid Pressure Sensor, Gas Pressure Sensor

Name: Hm600-2-20 General-Purpose Pressure Transmitter, OEM Liquid Pressure Sensor, Gas Pressure Sensor
Brand: all-electronics-online.com
SKU: 836844725
Availability: InStock
Rating: 4.8 (92 reviews)

Price:	US $ 30.5-42/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HM600-2-20

Product Description

Product overview

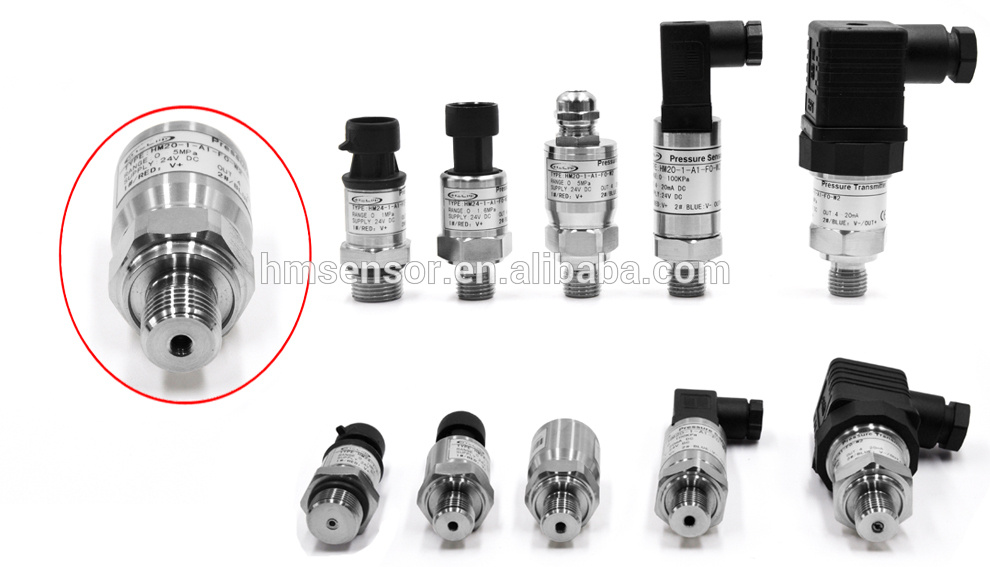

HM600-2-20 General-purpose Pressure Transducer has been produced with proprietary technology. Imported silicon sensitive elements as well as circuits and assembly technology designed in a normalized way to guarantee the advancement, practicality and quality stability of our products. This standard product may extensively be used in various places.

Feature&Application
Product Features
• High cost performance, specially designed and produced for OEM customers
• Silicon sensitive elements imported from Germany have excellent corrosion, impact, overloading, vibration and wear resistance performance.
• A wide range of operating temperature, high overall measuring accuracy, and good long-term stability
• Normalized design and production ensure the advancement, practicality and quality stability of our products
• Wide pressure range: From vacuum to 100MPa, with a positive and negative gauge pressure range

Product Applications
• Equipment automation • Engineering machinery • Medical equipment
• Pump and compressor • Energy and water treatment system • Agricultural mechanical equipment
• Internal combustion engine • Testing jig • Locomotive braking system
• Hydraulic and pneumatic system • Air conditioning unit and refrigeration equipment

Tips for Type Selection:
1.  The medium measured shall be compatible with the material contacting with the product.
2.  As an additional function code for type selection, the code "E" for intrinsically safe explosion-proof type Ex ia II CT5 denotes that power source must be supplied via safety barrier.
3.  For other special requirements, please discuss with us and clearly indicate them in the order.

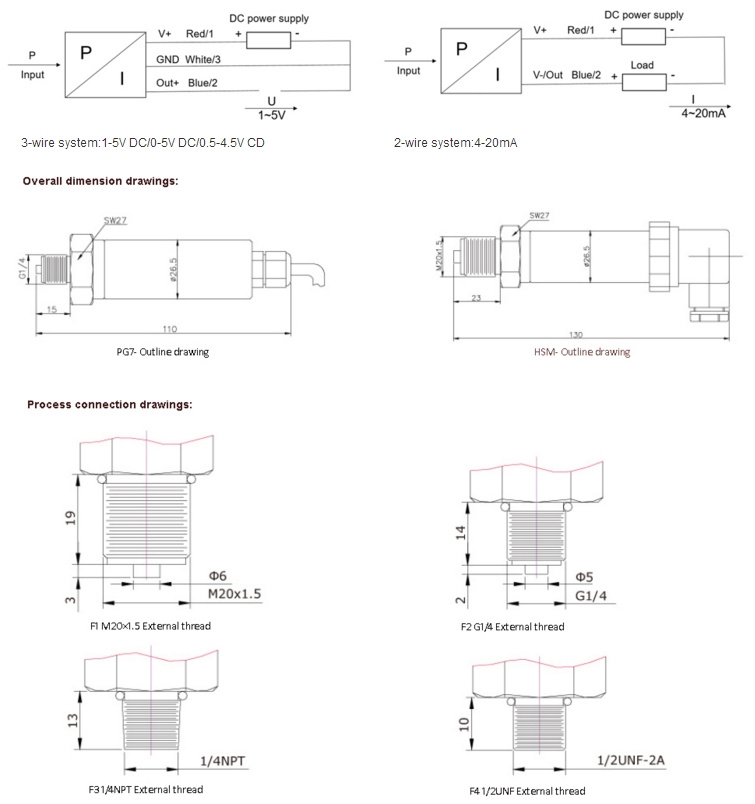

Electric Connection

Plug	Cable	4-20mA	1-5V/0~5V/0.5-4.5V DC
1	Red	Positive power supply: +V	Positive power supply: +V
2	Blue	Signal output / negative power supply: OUT/-V	Positive signal output: +OUT
3	White	Idle	Common port / power source end: GND/-V
4(⊥)	Yellow	Grounded in case of strong disturbance	Reliably grounded in case of strong disturbance

Certifications

Packaging & Shipping

Established in 2006, Nanjing Helm Sci-tech Co., Ltd. (Nanjing Jiucheng technology Co., Ltd) is specialized in R&D and production of pressure measuring and controlling instruments. It has introduced the internationally advanced production technology, equipment and process as well as strict product quality standards and ODM cooperation concept to China, so as to manufacture and sell JC pressure / differential pressure / liquid level sensors and transducers in mainland China.

Our products have been fallen into six categories totaling hundreds of specifications in dozens of series. Main products include: High-accuracy Pressure Sensor, General-purpose Pressure transducer, Liquid Level transducer, Anti-lightning/Anti-corrosive Liquid Level transducer, Special Pressure transducer for Air Conditioner, Refrigeration and Compressor, Special Pressure transducer for Oilfield and Mining Well, Economical Pressure Sensor and transducer, Ceramic Capacitor Pressure transducer, Vacuum Pressure transducer, Sapphire Pressure transducer, Digital Pressure transducer, Micro Differential Pressure / Air Pressure transducer, Intelligent Digital Pressure Gauge, Intelligent Digital Pressure Switch, Anti-corrosive Pressure transducer, Anti-explosive Pressure transducer, Hygienically Flat-membrane Pressure transducer, High-temperature Pressure transducer, High-frequency Pressure transducer, Micro Pressure transducer, Integrated Temperature transducer, and Capacitance Pressure transducer.
