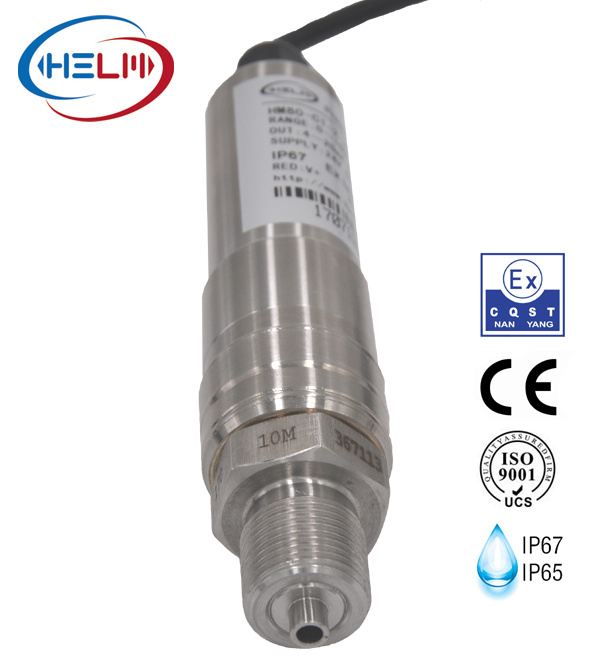

Hm80 0~100MPa OEM Customized High - Temperature Pressure Transducer High - Temperature Pressure Sensor

Name: Hm80 0~100MPa OEM Customized High - Temperature Pressure Transducer High - Temperature Pressure Sensor
Brand: all-electronics-online.com
SKU: 836328035
Availability: InStock
Rating: 5 (126 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HM80

Product Description

Product Overview
For general piezoresistive pressure sensor, the four force-sensing resistors of its sensitive Wheatstone bridge for control and measuring are manufactured using IC technology. The resistors are isolated from one another with PN junction.  Utilization of thick film technology to make force-sensing resistor can expand the operating temperature up to 125ºC; utilization of multi-crystalline silicon SOI technology to make force- sensing resistor can expand the operating temperature up to 150ºC; utilization of the traditional SOS technology and advanced SOI technology can expand the operating temperature up to 180°C-350°C. Utilization of the latest β-phase high- temperature force -sensing material SiC, combined with SOI technology can expand the operating temperature up to 450ºC~ 850ºC.

Features/Application
Product Features      Product Application
• Stainless steel enclosure, with excellent corrosion resistance     • Industrial process control
• Wide pressure measuring range • Petroleum survey and investigation
• Wide temperature measuring range, with very small temperature error • Chemical
• Stable working and strong interference immunity • Water conservancy
• High reliability, dual-diaphragm structure • Power generation engineering
• Small dimensions, light weight, and a variety of types • Thermal energy engineering
• Reverse polarity, over-voltage and over-current protection • Airspace and aerospace
• Wide range of measured medium • Scientific research of national defense

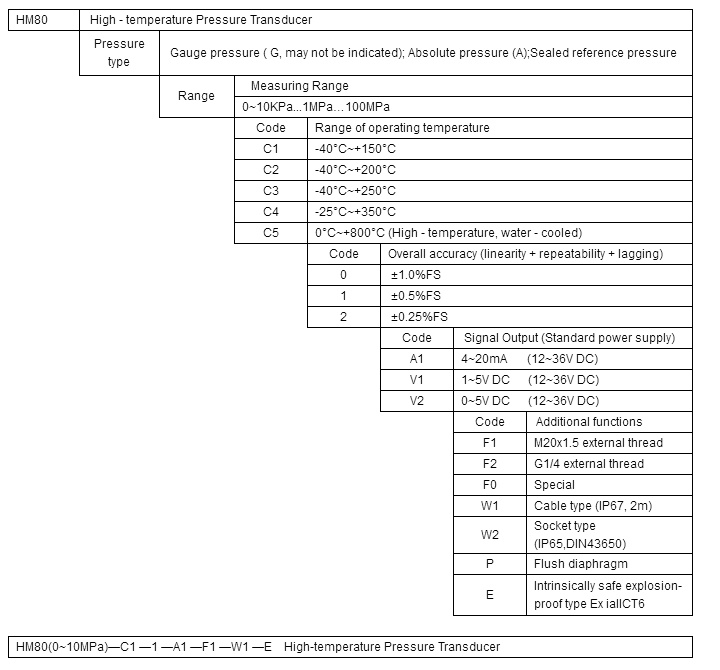

Tips for Type Selection:

1. The medium to be measured shall be compatible with the material contacting with the product.
2. As an additional function code for type selection, the code "E" for intrinsically safe explosion-proof type Ex iaIICT6
denotes that power source must be supplied via safety barrier
3. For other special requirements, please discuss with us and clearly indicate them in the order.

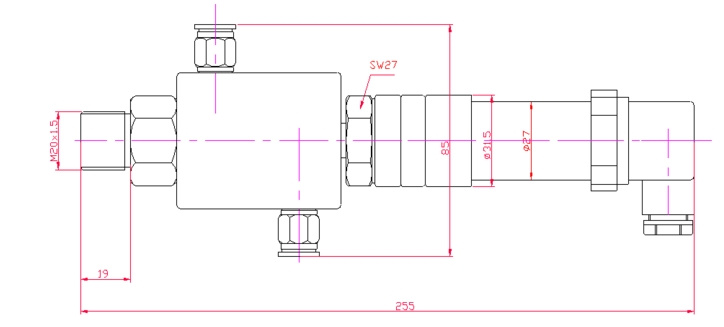

Dimensions (HM80C5)

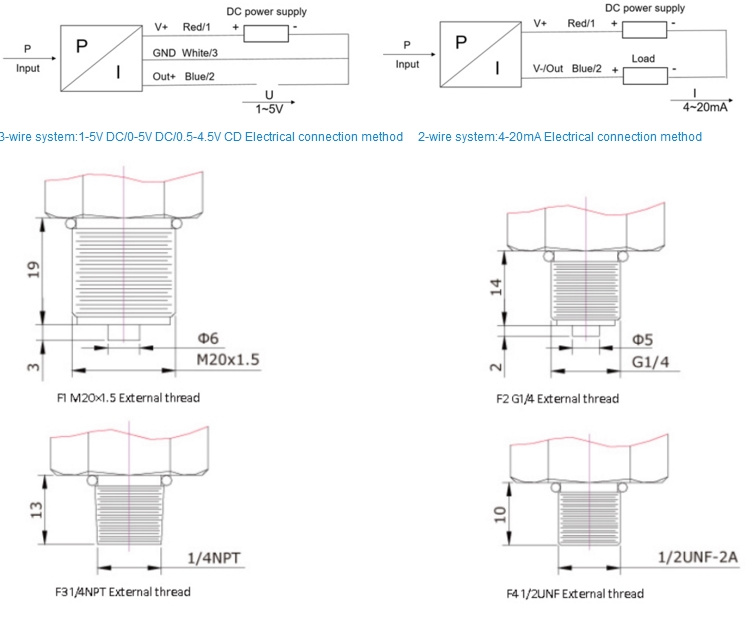

Electric Connection:

Plug	Cable	4-20mA	1-5V/0~5V/0.5-4.5V DC
1	Red	Positive power supply: +V	Positive power supply: +V
2	Blue	Signal output / negative power supply: OUT/-V	Positive signal output: +OUT
3	White	Idle	Common port / power source end: GND/-V
4(⊥)	Yellow	Grounded in case of strong disturbance	Reliably grounded in case of strong disturbance

Certifications

Packaging & Shipping

Established in 2006, Nanjing Helm Sci-tech Co., Ltd. (Nanjing Jiucheng technology Co., Ltd) is specialized in R&D and production of pressure measuring and controlling instruments. It has introduced the internationally advanced production technology, equipment and process as well as strict product quality standards and ODM cooperation concept to China, so as to manufacture and sell JC pressure / differential pressure / liquid level sensors and transducers in mainland China.

Our products have been fallen into six categories totaling hundreds of specifications in dozens of series. Main products include: High-accuracy Pressure Sensor, General-purpose Pressure transducer, Liquid Level transducer, Anti-lightning/Anti-corrosive Liquid Level transducer, Special Pressure transducer for Air Conditioner, Refrigeration and Compressor, Special Pressure transducer for Oilfield and Mining Well, Economical Pressure Sensor and transducer, Ceramic Capacitor Pressure transducer, Vacuum Pressure transducer, Sapphire Pressure transducer, Digital Pressure transducer, Micro Differential Pressure / Air Pressure transducer, Intelligent Digital Pressure Gauge, Intelligent Digital Pressure Switch, Anti-corrosive Pressure transducer, Anti-explosive Pressure transducer, Hygienically Flat-membrane Pressure transducer, High-temperature Pressure transducer, High-frequency Pressure transducer, Micro Pressure transducer, Integrated Temperature transducer, and Capacitance Pressure transducer.
