HMD/Hmdt Series Variable Speed Electric Motors

Name: HMD/Hmdt Series Variable Speed Electric Motors
Brand: all-electronics-online.com
SKU: 780573825
Availability: InStock
Rating: 4.9 (105 reviews)

Price:	US $ 55-1500/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	80M1-4P/2P-0.45/0.55------280M-12P/6P-24/37
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Efficiency Class:	Ie1, Ie2
Frame Size:	H80-280
Poles:	2.4.6.8.10.12.
Rated Voltage:	220/380V, 380/660V, 230/400V, 400V/690V
Frequency:	50Hz, 60Hz
Protection Class:	IP44, IP54, IP55
Insulation Class:	B/F/H
Application:	Power Tools
Operating Speed:	Adjust Speed
Number Of Stator:	Three-Phase
Species:	Y, Y2 Series Three-Phase
Casing Protection:	Protection Type
Number Of Poles:	2.4.6.8.10.12
Certification:	CE
Brand:	Hongma

Product Description

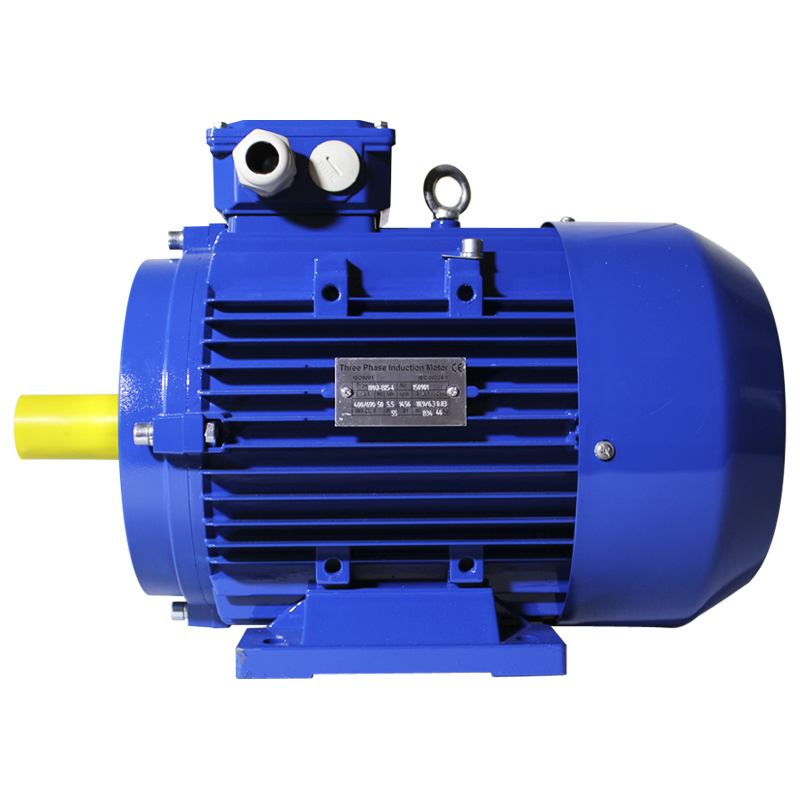

HMD/HMDT series Variable Speed Electric Motors
HMD/HMDT (YD) series 3 phase multispeed induction Electric Motor derives from Y2 series motor, and it switches poles and output power by transforming the joint mode of winding to matching to the load performance of mechanical equipment. It complies with IEC standard on noise, start torque, vibration value and mounting and overall dimensions. The motors are characteristic in small size, light, stable, firm structure, good appearance and so on.

Features and Benefits:
Efficiency Class:IE1, IE2
Frame Size: H80-280
Poles:2/4, 4/6, 4/8, 6/8, 6/12, 2/4/6, 2/4/8, 4/6/8, 4/6/8/12 poles
Rated Power: 0.45-7315KW
Rated Voltage: 220/380V, 380/660V, 230/400V, 400V/690V
Frequency: 50HZ, 60HZ
Protection Class: IP44, IP54, IP55
Insulation Class: B/F/H
Mounting Type:B3, B5, B14, B35multi
Ambient Temperature: -20~+40 °C
Altitude: ≤1000M

Type		Power	Current	Speed	η	Power Factor	TST/TN	IST/IN	TMAX/TN	Type		Power	Current	Speed	η	Power Factor	TST/TN	IST/IN	TMAX/TN
Type		KW	A	RPM	%	CosΦ	TST/TN	IST/IN	TMAX/TN	Type		KW	A	RPM	%	CosΦ	TST/TN	IST/IN	TMAX/TN
MDT80K	4	0.45	1.4	1420	66	0.74	1.5	6.5	1.8	MDT250M	8	30	58.5	730	90	0.86	1.5	5	1.8
MDT80K	2	0.55	1.5	2860	65	0.85	1.6	7	1.8	MDT250M	6	15	33.1	980	88	0.78	1.5	6	1.8
MDT80G	4	0.55	1.7	1420	68	0.74	1.5	6.5	1.8	MDT160M	12	2.6	11.6	480	75	0.46	1.2	4	1.8
MDT80G	2	0.75	2	2860	66	0.85	1.6	7	1.8	MDT160M	6	5	11.9	970	84	0.78	1.3	6	1.8
MDT90S	4	0.85	2.3	1430	74	0.77	1.5	6.5	1.8	MDT160L	12	3.7	16.4	480	77	0.46	1.2	4	1.8
MDT90S	2	1.1	2.8	2850	72	0.84	1.6	7	1.8	MDT160L	6	7	15.8	970	85	0.79	1.3	6	1.8
MDT90L	4	1.3	3.3	1430	76	0.78	1.5	6.5	1.8	MDT180M	12	5.5	19.6	490	79	0.54	1.2	4	1.8
MDT90L	2	1.8	4.3	2850	74	0.84	1.6	7	1.8	MDT180M	6	10	20.5	980	86	0.86	1.3	6	1.8
MDT100LA	4	2	4.8	1430	78	0.81	1.5	6.5	1.8	MDT200LA	12	7.5	25.1	490	82	0.56	1.2	4	1.8
MDT100LA	2	2.4	5.6	2850	76	0.86	1.6	7	1.8	MDT200LA	6	13	26.4	980	87	0.86	1.3	6	1.8
MDT100LB	4	2.4	5.6	1430	79	0.83	1.5	6.5	1.8	MDT200LB	12	9	28.9	490	87	0.57	1.2	4	1.8
MDT100LB	2	3	5.7	2850	77	0.89	1.6	7	1.8	MDT200LB	6	15	30.4	980	87	0.87	1.3	6	1.8
MDT112L	4	3.3	7.4	1450	81	0.83	1.5	6.5	1.8	MDT225M	12	12	35.8	490	85	0.61	1.2	4	1.8
MDT112L	2	4	8.6	2860	80	0.88	1.6	7	1.8	MDT225M	6	20	39.7	980	88	0.87	1.3	6	1.8
MDT132S	4	4.5	9.8	1450	83	0.84	1.5	6.5	1.8	MDT250M	12	15	42.9	490	86	0.63	1.2	4	1.8
MDT132S	2	5.5	11.9	2860	79	0.88	1.6	7	1.8	MDT250M	6	24	47.6	980	88	0.87	1.3	6	1.8
MDT132M	4	6.5	13.8	1450	84	0.85	1.5	6.5	1.8	MDT280S	12	20	54.8	490	88	0.63	1.2	4	1.8
MDT132M	2	8	17.1	2880	80	0.89	1.6	7	1.8	MDT280S	6	30	58.9	990	89	0.87	1.3	6	1.8
MDT160M	4	9	18.5	1460	87	0.85	1.5	6.5	1.8	MDT280M	12	24	63.7	490	88	0.65	1.2	4	1.8
MDT160M	2	11	22.9	2920	82	0.89	1.6	7	1.8	MDT280M	6	37	72.6	990	89	0.87	1.3	6	1.8
MDT160L	4	11	22.3	1460	87	0.86	1.5	6.5	1.8	HMDT100L	6	0.75	2.6	950	67	0.65	1.3	5.5	1.8
MDT160L	2	14	28.8	2920	82	0.9	1.6	7	1.8		4	1.3	3.7	1440	72	0.75	1.3	6	1.8
MDT180M	4	15	29.4	1470	89	0.87	1.5	6.5	1.8		2	1.8	4.5	2900	71	0.85	1.3	7	1.8
MDT180M	2	18.5	36.7	2940	85	0.9	1.6	7	1.8	HMDT112M	6	1.1	3.5	960	73	0.65	1.3	5.5	1.8
MDT180L	4	18.5	35.9	1470	89	0.88	1.5	6.5	1.8		4	2	5.1	1450	73	0.81	1.3	6	1.8
MDT180L	2	22	42.7	2940	86	0.91	1.6	7	1.8		2	2.4	5.8	2920	74	0.85	1.3	7	1.8
MDT200L	4	26	49.9	1470	89	0.89	1.4	6.5	1.8	HMDT132S	6	1.8	5.1	970	75	0.71	1.3	5.5	1.8
MDT200L	2	30	58.3	2950	85	0.92	1.4	7	1.8		4	2.6	6.1	1460	76	0.83	1.3	6	1.8
MDT225S	4	32	60.7	1480	90	0.89	1.4	6.5	1.8		2	3	7.4	2910	71	0.87	1.3	7	1.8
MDT225S	2	37	71.7	2960	86	0.92	1.4	7	1.8	HMDT132MA	6	2.2	6	970	77	0.72	1.3	5.5	1.8
MDT225M	4	37	69.4	1480	91	0.89	1.4	6.5	1.8		4	3.3	7.5	1460	80	0.84	1.3	6	1.8
MDT225M	2	45	86.4	2960	87	0.92	1.4	7	1.8		2	4	8.8	2910	76	0.91	1.3	7	1.8
MDT250M	4	45	84.4	1480	91	0.89	1.4	6.5	1.8	HMDT132MB	6	2.6	6.9	970	80	0.72	1.3	5.5	1.8
MDT250M	2	55	103.2	2960	88	0.92	1.4	7	1.8		4	4	9	1460	80	0.84	1.3	6	1.8
MDT280S	4	60	111.3	1480	91	0.9	1.4	6.5	1.8		2	5	10.8	2910	77	0.91	1.3	7	1.8
MDT280S	2	72	135.1	2970	88	0.92	1.4	7	1.8	HMDT160M	6	3.7	9.5	980	82	0.72	1.3	5.5	1.8
MDT280M	4	72	133.6	1480	91	0.9	1.4	6.5	1.8		4	5	11.2	1470	81	0.84	1.3	6	1.8
MDT280M	2	82	152.2	2970	88	0.93	1.4	7	1.8		2	6	13.2	2930	76	0.91	1.3	7	1.8
MDT90S	6	0.65	2.2	920	64	0.7	1.4	6.5	1.8	HMDT160L	6	4.5	11.4	980	83	0.72	1.3	5.5	1.8
MDT90S	4	0.85	2.3	1420	70	0.79	1.3	7	1.8		4	7	15.1	1470	83	0.85	1.3	6	1.8
MDT90L	6	0.85	2.8	930	66	0.7	1.4	6.5	1.8		2	9	18.8	2930	77	0.91	1.3	7	1.8
MDT90L	4	1.1	3	1420	71	0.79	1.3	7	1.8	HMDT112M	8	0.65	2.7	700	59	0.63	1.3	4.5	1.8
MDT100LA	6	1.3	3.8	940	74	0.7	1.4	6	1.8		4	2	5.1	1450	73	0.81	1.3	6	1.8
MDT100LA	4	1.8	4.4	1440	77	0.8	1.3	6.5	1.8		2	2.4	5.8	2920	74	0.85	1.3	7	1.8
MDT100LB	6	1.5	4.3	940	75	0.7	1.4	6	1.8	HMDT132S	8	1	3.6	720	69	0.61	1.3	4.5	1.8
MDT100LB	4	2.2	5.4	1440	77	0.8	1.3	6.5	1.8		4	2.6	6.1	1460	78	0.83	1.3	6	1.8
MDT112M	6	2.2	5.7	960	77	0.75	1.4	6	1.8		2	3	7.1	2910	74	0.87	1.3	7	1.8
MDT112M	4	2.8	6.7	1440	77	0.82	1.3	6.5	1.8	HMDT132M	8	1.3	4.6	720	71	0.61	1.3	4.5	1.8
MDT132S	6	3	7.7	960	79	0.75	1.4	6	1.8		4	3.7	8.4	1460	80	0.84	1.3	6	1.8
MDT132S	4	4	9.5	1440	80	0.82	1.3	6.5	1.8		2	4.5	10	2910	75	0.91	1.3	7	1.8
MDT132M	6	4	9.8	960	81	0.76	1.4	6	1.8	HMDT160M	8	2.2	7.6	720	75	0.59	1.3	4.5	1.8
MDT132M	4	5.5	12.3	1440	80	0.85	1.3	6.5	1.8		4	5	11.2	1440	81	0.84	1.3	6	1.8
MDT160M	6	6.5	15.1	970	84	0.78	1.4	6	1.8		2	6	13.2	2910	75	0.91	1.3	7	1.8
MDT160M	4	8	17.4	1460	83	0.85	1.3	6.5	1.8	HMDT160L	8	2.8	9.2	720	77	0.6	1.3	4.5	1.8
MDT160L	6	9	20.6	970	85	0.78	1.4	6	1.8		4	7	15.1	1440	83	0.85	1.3	6	1.8
MDT160L	4	11	23.4	1460	84	0.85	1.3	6.5	1.8		2	9	18.8	2910	79	0.92	1.3	7	1.8
MDT180M	6	11	25.9	980	85	0.78	1.4	6	1.8	HMDT112M	8	0.85	3.7	710	62	0.56	1.3	5.5	1.8
MDT180M	4	14	29.8	1470	85	0.85	1.3	6.5	1.8		4	1	3.1	950	67	0.74	1.3	6	1.8
MDT180L	6	13	29.4	980	86	0.78	1.4	6	1.8		2	1.5	3.5	1440	75	0.86	1.4	7	1.8
MDT180L	4	16	33.6	1470	85	0.85	1.3	6.5	1.8	HMDT132S	8	1.1	4.1	730	67	0.6	1.3	5.5	1.8
MDT200L	6	18.5	41.4	980	87	0.78	1.4	6.5	1.8		6	1.5	4.2	970	74	0.74	1.3	6	1.8
MDT200L	4	22	44.7	1460	87	0.86	1.3	7	1.8		4	1.8	4	1460	78	0.87	1.4	7	1.8
MDT225	6	22	44.2	980	88	0.86	1.4	6.5	1.8	HMDT132MA	8	1.5	5.2	730	71	0.62	1.3	5.5	1.8
MDT225	4	28	56.2	1470	87	0.87	1.3	7	1.8		6	2	5.4	970	77	0.73	1.3	6.5	1.8
MDT225M	6	26	52.2	980	88	0.86	1.4	6.5	1.8		4	2.2	4.9	1460	79	0.87	1.4	7	1.8
MDT225M	4	34	66	1470	87	0.9	1.3	7	1.8	HMDT132MB	8	1.8	6.3	730	72	0.62	1.3	5.5	1.8
MDT250M	6	32	62.1	980	90	0.87	1.4	6.5	1.8		6	2.6	6.8	970	78	0.74	1.3	6.5	1.8
MDT250M	4	42	74.7	1470	88	0.91	1.3	7	1.8		4	3	6.5	1460	80	0.87	1.4	7	1.8
MDT280S	6	42	81.5	980	90	0.87	1.4	6.5	1.8	HMDT160M	8	3.3	10.2	720	79	0.62	1.6	5.5	1.8
MDT280S	4	55	104.2	1470	89	0.9	1.3	7	1.8		6	4	9.9	960	81	0.76	1.5	6.5	1.8
MDT280M	6	55	106.7	990	90	0.87	1.4	6.5	1.8		4	5.5	11.6	1440	83	0.87	1.4	7	1.8
MDT280M	4	72	138.1	1480	89	0.89	1.3	7	1.8	HMDT160L	8	4.5	13.8	720	80	0.62	1.6	5.5	1.8
MDT90L	8	0.45	1.9	680	58	0.63	1.5	5.5	1.8	HMDT160L	6	6	14.5	960	83	0.76	1.5	6.5	1.8
MDT90L	4	0.75	1.92	1420	72	0.87	1.5	6.5	1.8		4	7.5	15.6	1440	84	0.87	1.4	7	1.8
MDT100L	8	0.85	3.1	700	68	0.63	1.5	5.5	1.8	HMDT180L	8	7	18.5	740	81	0.71	1.6	6.5	1.8
MDT100L	4	1.5	3.5	1420	75	0.88	1.5	6.5	1.8		6	9	20.6	980	83	0.8	1.5	7	1.8
MDT112M	8	1.5	5	700	72	0.63	1.5	5.5	1.8		4	12	24.1	1470	84	0.9	1.4	7	1.8
MDT112M	4	2.4	5.3	1420	78	0.88	1.5	6.5	1.8	HMDT200L	8	10	25.8	740	83	0.71	1.6	6.5	1.8
MDT132S	8	2.2	7	720	75	0.64	1.5	5.5	1.8		6	13	28.7	980	85	0.81	1.5	7	1.8
MDT132S	4	3.3	7.1	1450	80	0.88	1.5	6.5	1.8		4	17	33.4	1470	86	0.9	1.4	7	1.8
MDT132M	8	3	9	720	78	0.65	1.5	5.5	1.8	HMDT225S	8	14	34.3	740	86	0.71	1.6	6.5	1.8
MDT132M	4	4.5	9.4	1440	82	0.88	1.5	6.5	1.8		6	18.5	39.9	980	87	0.81	1.5	7	1.8
MDT160M	8	5	13.9	730	83	0.66	1.5	5.5	1.8		4	24	46.6	1480	87	0.9	1.4	7	1.8
MDT160M	4	7.5	15.2	1450	84	0.89	1.5	6.5	1.8	HMDT225M	8	17	42.4	740	87	0.7	1.6	6.5	1.8
MDT160	8	7	19	730	85	0.66	1.5	5.5	1.8		6	22	43.2	980	87	0.85	1.5	7	1.8
MDT160	4	11	21.8	1450	86	0.89	1.5	6.5	1.8		4	28	34.3	1480	87	0.9	1.4	7	1.8
MDT180L	8	11	26	730	86	0.74	1.5	6	1.8	HMDT250M	8	24	55.3	740	88	0.75	1.2	6.5	1.8
MDT180L	4	17	31.9	1470	87	0.92	1.5	7	1.8		6	26	52.8	990	88	0.85	1.5	7	1.8
MDT200LA	8	14	33	740	86	0.74	1.5	6	1.8		4	34	63.1	1480	89	0.92	1.4	7	1.8
MDT200LA	4	22	41.3	1470	88	0.92	1.5	7	1.8	HMDT280S	8	30	68.1	740	89	0.75	1.2	6.5	1.8
MDT200LB	8	17	40.1	740	87	0.74	1.5	6	1.8		6	34	67.5	990	89	0.86	1.5	7	1.8
MDT200LB	4	26	48.8	1470	88	0.92	1.5	7	1.8		4	42	77.9	1480	89	0.92	1.4	7	1.8
MDT225M	8	24	53.2	740	89	0.77	1.4	6	1.8	HMDT280M	8	34	77.4	740	89	0.75	1.2	6.5	1.8
MDT225M	4	34	66.7	1470	88	0.88	1.3	7	1.8		6	37	73.4	990	89	0.86	1.5	7	1.8
MDT250M	8	30	64.9	740	90	0.78	1.4	6	1.8		4	50	91.8	1480	90	0.92	1.4	7	1.8
MDT250M	4	42	78.8	1480	89	0.91	1.3	7	1.8	HMDT180L	12	3.3	13	480	72	0.55	1.3	5	1.8
MDT280S	8	40	83.5	740	91	0.8	1.4	6	1.8		8	5	16	740	79	0.62	1.3	6	1.8
MDT280S	4	55	102	1480	90	0.91	1.3	7	1.8		6	6..5	14	970	82	0.88	1.3	6	1.8
MDT280M	8	47	96.9	740	91	0.81	1.4	6	1.8		4	9	19	1470	83	0.89	1.3	7	1.8
MDT280M	4	67	122.9	1480	90	0.92	1.3	7	1.8	HMDT200LA	12	4.5	17	490	73	0.56	1.3	5	1.8
MDT90S	8	0.35	1.6	680	56	0.6	1.5	5	1.8		8	7	20	740	81	0.67	1.3	6	1.8
MDT90S	6	0.45	1.4	930	70	0.72	1.5	6	1.8		6	8	17	980	83	0.88	1.3	6	1.8
MDT90L	8	0.45	1.9	680	59	0.6	1.5	5	1.8		4	11	23	1480	84	0.88	1.3	7	1.8
MDT90L	6	0.65	1.9	930	71	0.73	1.5	6	1.8	HMDT200LB	12	5.5	20	490	74	0.56	1.3	5	1.8
MDT100L	8	0.72	2.9	710	65	0.6	1.5	5	1.8		8	8	22	740	81	0.67	1.3	6	1.8
MDT100L	6	1.1	3.1	950	75	0.73	1.5	6	1.8		6	10	21	980	83	0.88	1.3	6	1.8
MDT112M	8	1.3	4.5	710	72	0.61	1.5	5	1.8		4	13	27	1480	84	0.88	1.3	7	1.8
MDT112M	6	1.8	4.8	950	78	0.73	1.5	6	1.8	HMDT225M	12	7	21	490	81	0.63	1.3	5	1.8
MDT132S	8	1.8	5.8	730	72	0.62	1.5	5	1.8		8	11	27.6	740	85	0.72	1.3	6	1.8
MDT132S	6	2.4	6.2	970	80	0.73	1.5	6	1.8		6	13	26	980	85	0.88	1.3	6	1.8
MDT132M	8	2.6	8.2	730	78	0.62	1.5	5	1.8		4	20	39	1480	86	0.9	1.3	7	1.8
MDT132M	6	3.7	9.4	970	82	0.73	1.5	6	1.8	HMDT250M	12	9	26	490	82	0.63	1.3	5	1.8
MDT160M	8	4.5	13.3	730	83	0.62	1.5	5	1.8		8	14	34	740	85	0.73	1.3	6	1.8
MDT160M	6	6	14.7	980	85	0.73	1.5	6	1.8		6	16	33	990	85	0.88	1.3	6	1.8
MDT160L	8	6	17.5	730	84	0.62	1.5	5	1.8		4	26	49	1480	87	0.92	1.3	7	1.8
MDT160L	6	8	19.4	980	86	0.73	1.5	6	1.8	HMDT280S	12	11	32	490	83	0.63	1.3	5	1.8
MDT180M	8	7.5	21.9	730	84	0.62	1.5	5	1.8		8	18.5	43	740	87	0.75	1.3	6	1.8
MDT180M	6	10	24.2	980	86	0.73	1.5	6	1.8		6	20	41	990	85	0.88	1.3	6	1.8
MDT180L	8	9	24.8	930	85	0.65	1.5	5	1.8		4	34	65	1490	87	0.92	1.3	7	1.8
MDT180L	6	12	28.3	980	86	0.75	1.5	6	1.8	HMDT280M	12	13	37	490	84	0.63	1.3	5	1.8
MDT200LA	8	12	32.5	730	86	0.65	1.5	5	1.8		8	22	51	740	87	0.75	1.3	6	1.8
MDT200LA	6	17	39.1	980	87	0.76	1.5	6	1.8		6	24	49	990	85	0.88	1.3	6	1.8
MDT200LB	8	15	40.3	730	87	0.65	1.5	5	1.8		4	40	75	1490	88	0.92	1.3	7	1.8
MDT200LB	6	20	45.4	980	88	0.76	1.5	6	1.8
