Home Alarm Wireless Infrared Curtain Direction Identity PIR Detector
| Price: |
US $ 4.5-5/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
WL-823W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Detecting Distance: |
9*3.6m |
| Frequency: |
315MHz/433MHz |
| Anti White Light: |
8000lux |
| Color: |
White |
| Power Supply: |
3VDC |
| Lifespan Of Battery: |
6-12 Months |
| Type: |
Sensor |
| Installation Mode: |
Wall Mounted |
| Application: |
Home, Industry, Communication Electronic Product |
| Usage: |
Anti-Theft |
| Detection Type: |
PIR Detector |
| Output Signal Type: |
Wireless |
| Material: |
ABS |
| Certification: |
FCC, CE and RoHS |
Product Description

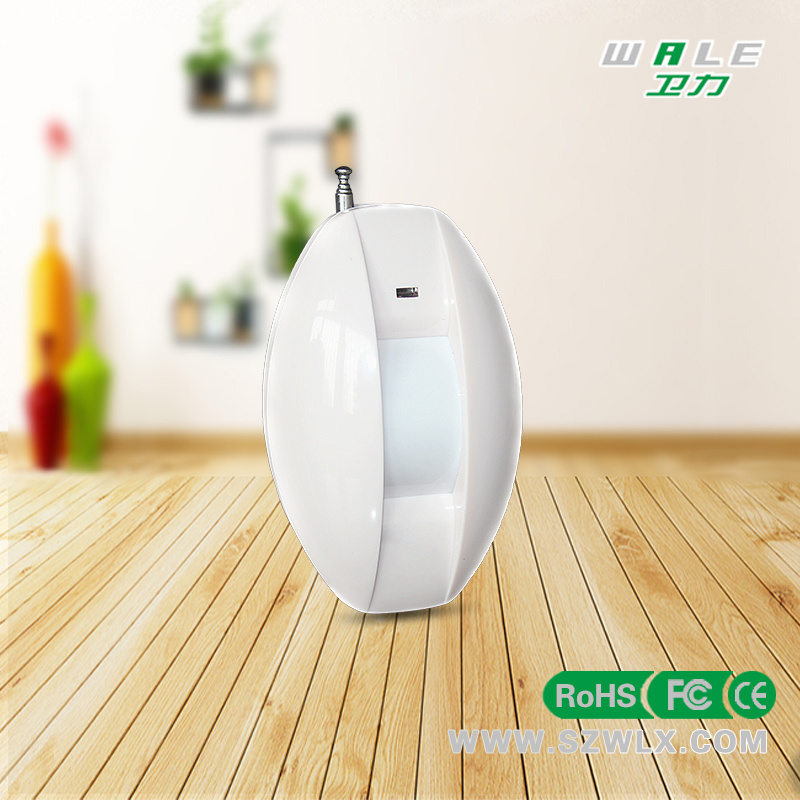

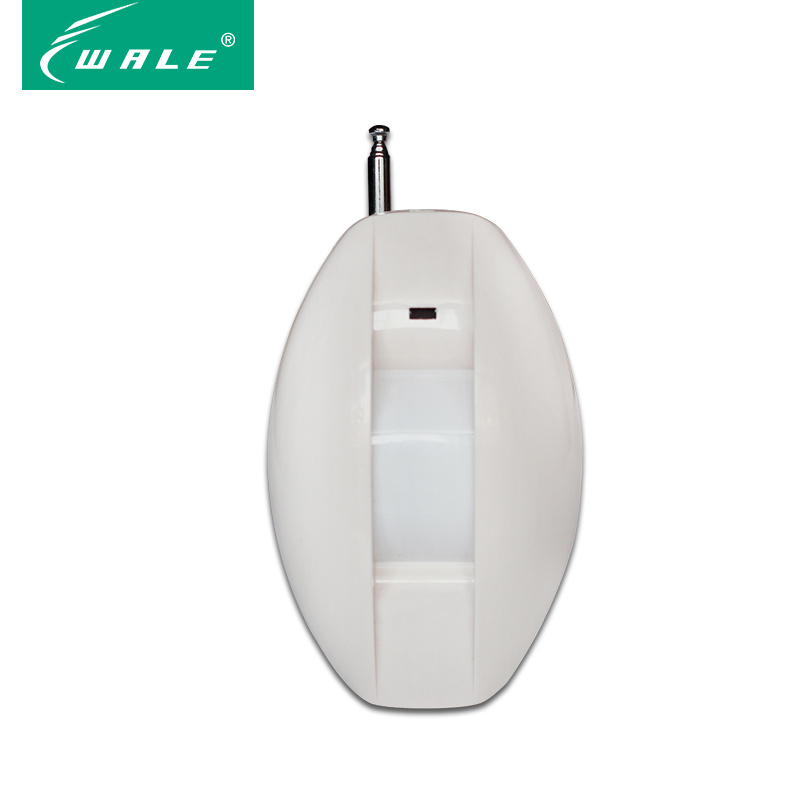

Wireless Curtain PIR Detector
Features:- Alarm indicator: Red led
- Low battery indicator: Yellow led
- Sensor: Dual element infrared sensor
- Digital circuit, using microprocessor
- Two-way digital temperature compensation
- Super anti false positives
- SMT manufacturing process, anti RFI, EMI interference
- The pulse count adjustable
- The detection sensitivity adjustable
- ABS plastic material
Technical Specification| Model | WL-800WF | WL-823W |
| Model Type | Wireless Curtain Pet Immune PIR Detector | Wireless Curtain Direction Identify PIR Detector |
| Power Supply | DC3V (2AA Alkaline batteries) |
| Detection Distance | 9m |
| Detection Angle | 15° |
| Transmitting distance | ≤150m ( open area) | ≤150m (open area) |
| Anti RF interference | 10MHz-1GHz 20V/m |
| Installation height | 1.7 to 2.5m(2.2m is proposed) |
| Installation mode | Wall mounted |
| Transmitting frequency | 315MHz/433MHz |
| Anti-pet Level | 10kg | / |
| Alarm direction | / | Direction Identify |
| Self checking time | 30s | 60s |
| Programmer Code | 1527/2264 |
| Standby Current | ≤25uA | ≤12uA |
| Alarm Current | ≤10mA | ≤10mA |
| Operating Temperature | -10ºC~ +50ºC |
| Relative Humidity | ≤95% (non-condensing) |
| Alarm delay | 5 seconds or 5 minutes optional | |
| Unit size | 110*70*40mm |
FAQ
Q1: Where is your Factory? How can I visit your company?
A1: Our factory is located in Shenzhen, Guangdong, China. We could pick you up from the hotel you live when you come to Shenzhen.
Q2: Warranty?
A2: Normally the alarm panel will be 2 years, and the accessories will be 1 year.
Q3: Can I get some Samples? Are your samples free or need cost?
A3: It can be free, but anyway we have to charge for the samples first, the sample charge can be returned after official order placed.
Q4: Could you please make OEM for us?
A4: Surely yes.OEM&ODM, any your customized alarm system we can help you to design and put into product
Q5: How long can I get your samples?
A5: For samples, it will be ready for delivery in 3-7 days after payment. The samples will be sent to you by express.
Q6: When can I get the price?
A6: Your inquiry related to our products or prices will be replied in 24 hours. If you are very urgent to get the price, please call us by 86-17875047736.
Q7: What's your Payment method supported?
A7: We accept T/T, Western Union, L/C etc.
Q8: Shipping & Express
A8: 1). If you have specified shipping agent, we will contact them and to deliver your goods.
2) If you do not have specified shipping agent, we will delegate a credible one for you to deliver your goods. Goods could be delivered by air, by sea, by express (DHL, UPS, TNT or FEDEX).
Established in Shenzhen on July 25, 2006, Shenzhen Wale Group Co., Ltd is a national high-tech enterprise mainly on researching, developing and manufacturing high-tech products for security GSM home alarm, terrorism and violence, quantum detection, and energy environment, as well as a solution provider about industry data analyzing

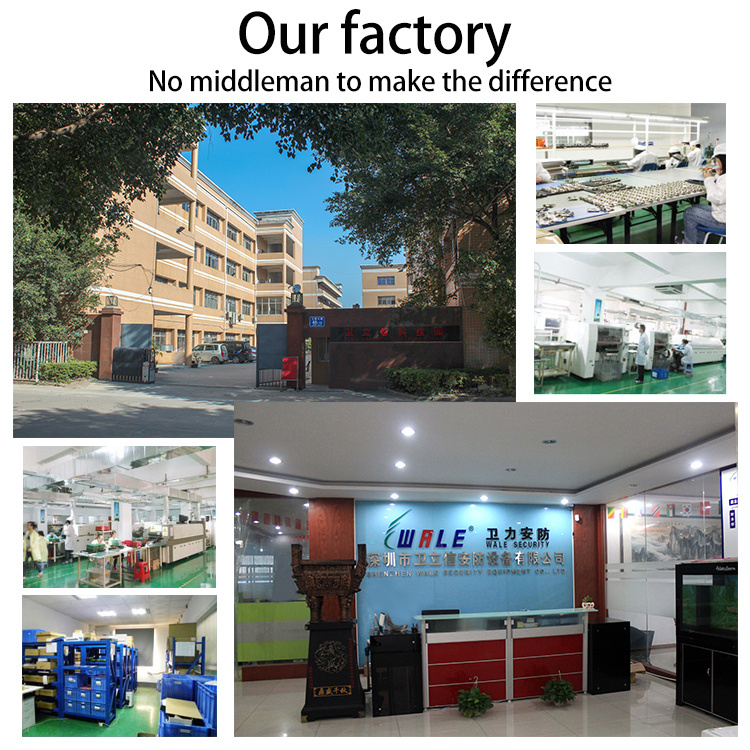

The factory and office are located in Shenzhen, which is near to ports for sea delliver. The factory can support OEM/ODM service for long term cooperation. Our products are welcomed by our forg
