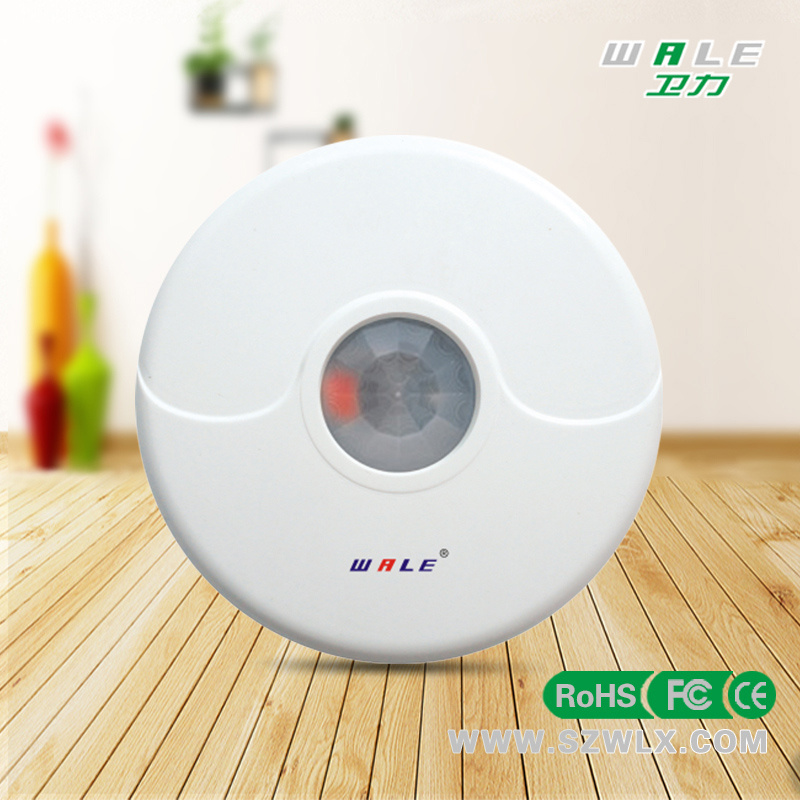

Wireless Ceiling Mounted Intelligent PIR Motion Detector

Prod Model:	WL-801W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Detecting Range:	4.5m * 9m
Certificate:	Ce and RoHS
Warranty Time:	2 Years Guarantee
Color:	White
Sensitivity:	Adjustable
Dimension:	106*35mm
Frequency:	315MHz or 433MHz
Type:	Sensor
Installation Mode:	Ceiling Mounted
Application:	Home, Industry, Communication Electronic Product
Detection Type:	Infrared

Product Description

Ceiling Wireless PIR Detector

Technical Parameter:
1. Ceiling Mount 360° Detecting
2. Detecting Scope (H× Φ ): 4.5m× 9m
3. Continuous Work For 2-4 Years With Built-in Battery
4. Sensitivity Adjustable Function
5. Pulse Count Optional Function
6, Wireless emitting distance: Open area: 150m
7, Emitting frequency: 315MHz / 433MHz;
8, Programme code: 1527 / 2264
9, All around 360° Detecting,
10, working voltage: 3VDC, 2 AA alkaline batteries;
11, digital circuits, adopt to microprocessors;
12, two-way digital temperature compensation, super anti-false alarm;
13, the SMT process manufacturing, resistance to the RFI, EMI interference;
14, the pulse count can be adjusted, the detection sensitivity is adjustable;
15, the detection range can be adjusted, anti tamper, low voltage alarm



Model	WL-801W (wireless ceiling pir sensor)
Working temperature/humidity	-10+50 /5%-95%RH
Emit Frequency	315MHz/433MHz
Emit Distance	≥150m(Open place)
Anti White Light	7000LUX
Battery	1.5V*2
