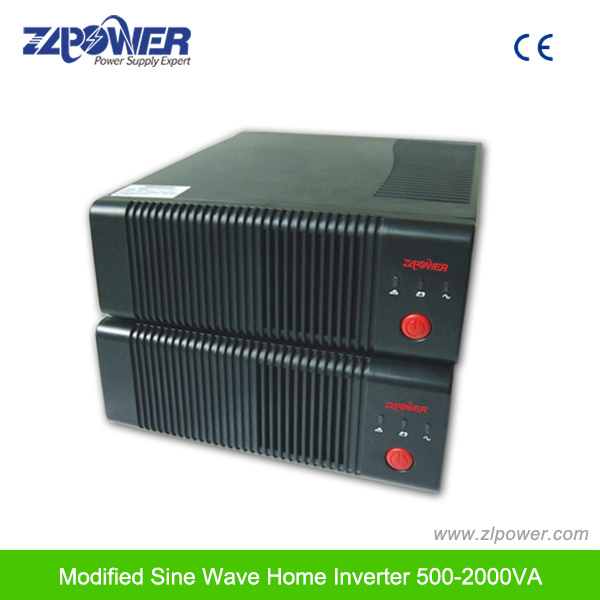

Home DC to AC Inverter - Inverex Power Inverter

Home DC to AC Inverter - Inverex Power Inverter
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Western Union,Money Gram
Prod Model: IG500~IG2000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inverter Wave: Pure Sine Wave
Protection: Short Circuit
Phase: Single Phase

Product Description

Home DC to AC Inverter - Inverex Power Inverter
1: Home Inverter with Power DC to AC
2: Quality same with Inverex Inverter
3: Single Phase, 220/230/240V Inverter Input
4: Inverter DC Input 12/24/48V

Home DC to AC Inverter - Inverex Power Inverter Key Feature:
User selectable for accepting wider input voltage
Full automatic and silent operation
Rack Tower design
High Frequency
Off-line mode charging
Available in five AC outlet configurations: NEMA, schuko, French, India, and BS1363
Compact size for convenient use and storage
Built-in 8Amp super charger for up to 100Ah battery
Small scales and cost effective inverter for home appliances and office equipment
Two-steps intelligent charging control to recharging time

APPLICATION: Home, office
Inverter ModelIG500-12IG1000-12IG2000-24IG1000-24
CapacityVA/W5000VA/300W1000VA/600W2000VA/1200W1000VA/600W
InputNominal Voltage110/120VAC or 220/230/240VAC
Voltage Range90-145VAC or 170-280VAC(Narrow Range)
50-145VAC or 90-280VAC(Wide Range)
OutputVoltage120VAC or 230VAC
Voltage Regulation(Bat.Mode)10%-18%
Frequency50HZ or 60HZ
Frequency Regulation(Bat.Mode)±0.1HZ
Output WaveformModified Sinewave
Battery&ChargerCharger Current10Amp±1Amp10Amp±1Amp10Amp±1Amp6Amp±1Amp
DC Voltage12V12V24V24V
Overcharge Protecion15V15V30V30V
Transfer timeTypical15ms Typical,50ms Max
EfficiencyAC to AC>95%
DC to DC>80%
IndicatorAC ModeGreen lighting
Battery ModeYellow lighting
Battery Charging ModeGreen flashing every 2 second
OverloadRed flashing every 0.5 second
FaultRed lighting
Audible alarmLow Battery at Battery ModeSounding every 2 second
OverloadSounding every 0.5 second
FaultContinuously sounding
ProtectionFull protectionDischarge,overcharge,and overload protectin
PhysicalDimension D*W*H(mm)224*255*80
Net Weight(kg)2.02.32.51.9
EnvironmentOperating Environment0-40C,0-90% relative humidity (non-condensing)
Noise Level<50dB
