Home Used 25A 4p AC Contactor 16A 230V Auxiliary Contacts

Prod Model:	EKMF
Contact Form:	2p and 4p
Operation Type:	Automatic and Manual Type
Brand Type:	Chana or OEM
Sample Charge:	Free for Sample

Product Description

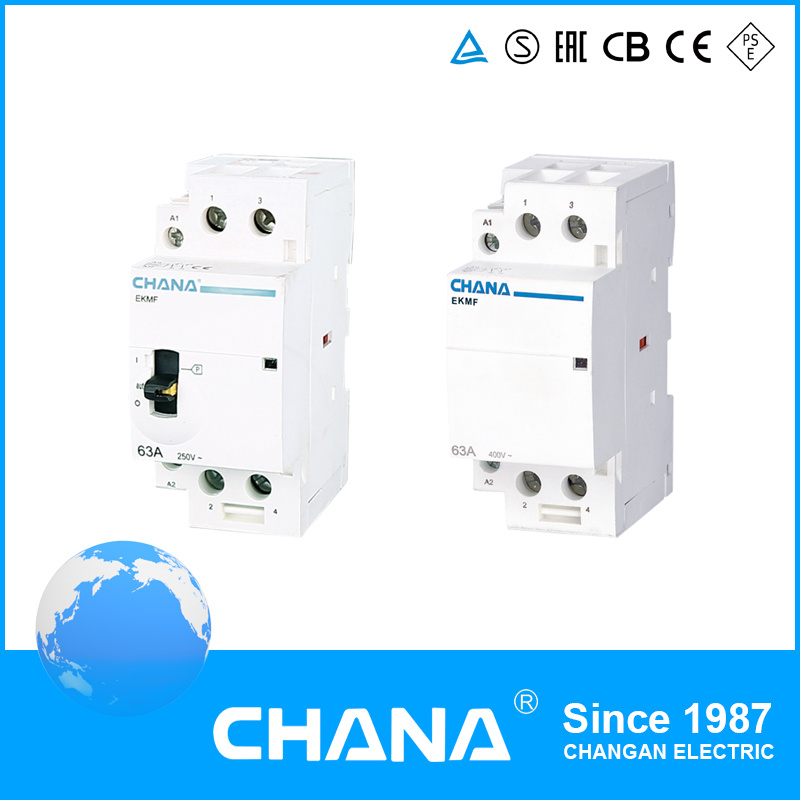

Modular Contactor

1. Application

EKMF modular contactor is applicable to alternative circuit with rated voltage up to 400V,rated current up to 24A and rated frequency 50/60Hz.

2. Construction and Feature

Compact and modular design
Electro-magnetic mechanism free of noise
Contact position indication
Big contact capacity and long endurance
Automatic and manual type

3. Technical Data


Standard	IEC61095
Rated current In	16, 25, 40, 63A
Poles	2P, 4P
Rated voltage Ue	230V(2P)/400V(4P)
Rated frequency	50/60Hz
Control voltage	24V, 220V-240V
Electrical endurance	30000 cycles
Mechanical endurance	100000 cycles
Ambient temperature	-5 º C...+60 º C
Connection terminal	pillar terminal with clamp
Installation	On symmetrical din rail, Panel mounting

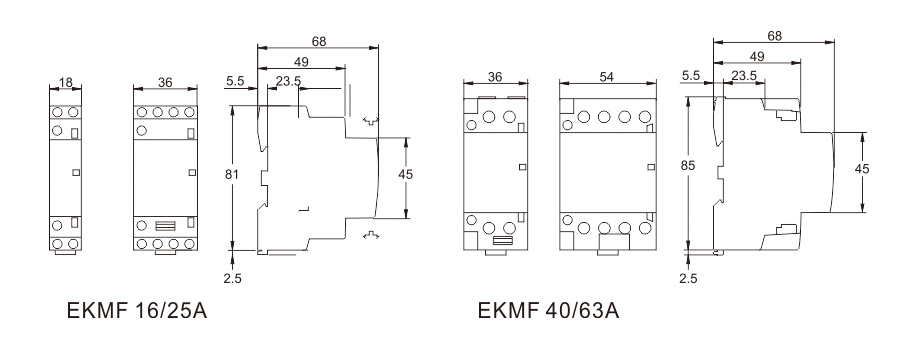

4. Contact form and Diamensions(mm)

2P: 2NO, 2NC,1NO+1NC
4P: 4NO, 4NC, 3NO+1NC, 2NO+2NC



5. Certificates

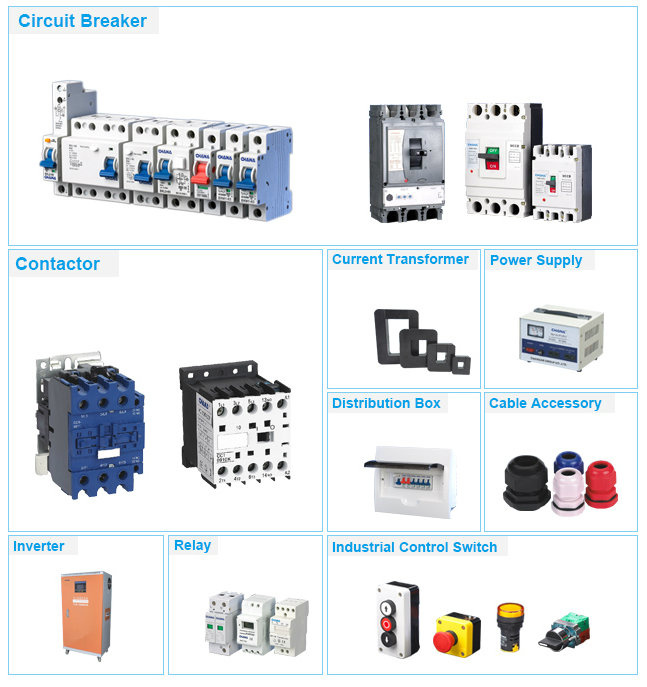

6. Feature Products

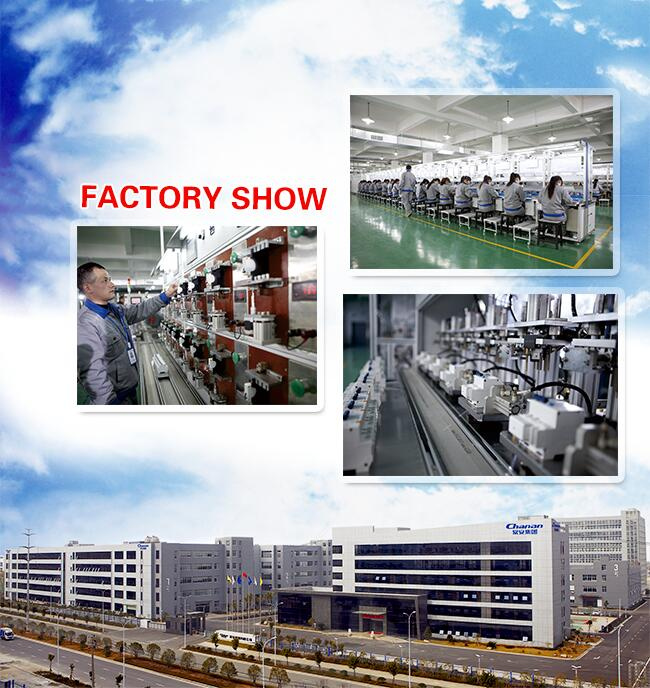

7. About Us

Established in 1987, CHANGAN is a large national enterprise, located in China Electric Appliance Capital- Liushi. Taking the industrial electric appliance as the leading sector, Integrating the R&D, information, trade, services, manufacture and sale of high and low voltage electrical apparatus, Instrument and Meter, Power Supply Equipment, Power Distribution Cabinet and Electric product for building and construction.

As core company, CHANGAN GROUP CO., LTD. is mainly engaged in
MCB, RCCB, RCBO, MCCB, CONTACTOR, THERMAL RELAY, SPD, MPS, STARTER,
STABLIZER, PUSH BUTTON SWITCH, INDICATOR, TERMINAL, CABLE ACCESSORIES etc. Company own over 2000 employees, 116000 square meter construction area, registered capital totalizing to 0.10518 billion RMB, it has established over 500 sales branches throughout the whole country.

Certificate:ISO9001,ISO14001,OHSAS18001,CCC,SEMKO,CE,CB,TUV,EAC,TSE.Products are sold to UK, France, Russia, Turkey, German, Brazil, Argentina, South Africa, Egypt, Iran and other 60 countries and areas.

8. FAQ

Q 1. What's the payment term?
A. We accept tt,30% deposit and 70% balance against the copy of b/l.

Q 2. How's the delivery time?
A. Usually it will take about 25 days for production.

Q 3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.

Q 4. Could you offer form a? or c/o?
A. It's totally not a? problem. We can prepare relative documents to foreign affairs office or other office??to apply for this certificate.

Q 5. Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do oem.
