Hot Product Residual Current Circuit Breaker (YCB5L)

Name: Hot Product Residual Current Circuit Breaker (YCB5L)
Brand: all-electronics-online.com
SKU: 737721545
Availability: InStock
Rating: 4.5 (56 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1Box
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YCB5L
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage (V):	230/400
Rated Current (a):	6, 10, 16, 20, 25, 32, 40
Rated Frequency(Hz):	50/60
Dielectric Test Voltage(Kv):	2.0
Rated Impulse Withstand Voltage(V):	4000
Rated Breaking Capacity(a):	6000
Insulation Voltage(V):	500
Protection Degree:	IP20
Curve:	B,C,D
Mechanical Life:	8000
Arc-extinguishing Medium:	Air
Structure:	MCB
Breaking Capacity:	Low Voltage Circuit Breakers
Certification:	CCC
Operation:	Electric Type
Installation:	Insert
Speed:	Normal Type Circuit Breaker
Poles Number:	1p+N,3p+N

Product Description

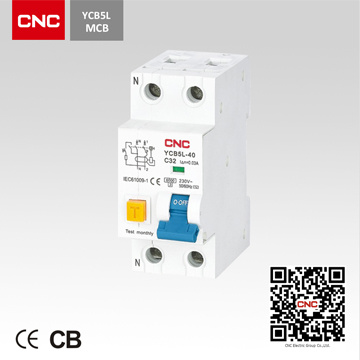

Hot product Residual Current Circuit Breaker (YCB5L)

About CNC

1. China Top 500 Enterprise
2.26 years rich experience in manufacturing electrical products
3. Sales in over 100 countries

Specifications

1. Protection against overload and short-circuit currents
2. Protection against the effects of sinusoidal alternating earth fault currents
3. Protection against indirect contacts and additional protection against direct contacts.
4. Protection against fire hazard caused by insulation faults
5. Used in residential building

WHY US?

1. We Are Suppler of Three Gorges Project, China National Petroleum, Sinopec Group;

2. China Famous Export Enterprise, Our Products Sale in Over 100 Countries;

3. Our Laboratory is China Key Industrial Electrical Laboratory;

4. We have completely sales service system, ensure every detail is going smooth.

5. We have new designed products each year by our R&D Dpartment.

6. Perfect testing system ensure each product is qualified.

7. Want know more of us? Waiting for your inquiry.

Type	Standard		IEC/EN 60898-1
Electrical features	Leakage type		Electromagnetic type
	Rated current In	A	6, 10, 16, 20, 25, 32, 40
	Type(wave form of the earth leakage sensed )		A,AC
	Poles	P	1P+N,3P+N
	Rated voltage Ue	V	230/400
	Insulation voltage Ui	V	500
	Rated frequency	HZ	50/60
	Rated breaking capacity	A	6000
	Rated impulse withstand voltage (1.2/50) Uimp	V	4000
	Dielectric test voltage at ind. Freq. for 1 min	kV	2
	Rated sensitivity	A	0.03,0.1,0.3
	Break time under	s	≤ 0.1
	Rated residual making and breaking capacity	A	500
	Pollution degree		2
Mechanical features	Electrical life	t	4000
	Mechanical life	t	8000
	Protection degree		IP20
	Storage temperature	°C	-25~+70
	Ambient temperature (with daily average≤35°C)	°C	-5~+40
Installition	Terminal connection type		Cable/Pin-type busbar/U-type bar
	Terminal size top/button for cable	mm²	16
	Terminal size top/button for cable	AWG	18-5
	Terminal size top/button for busbar	mm²	16
	Terminal size top/button for busbar	AWG	18-5
	Tightening torque	N*m	1.2
	Tightening torque	In-Ibs	11
	Mounting		On DIN rail EN 60715(35mm) by means of fast clip device
	connection		From top and button

CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.

Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.

We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
