| Prod Model: |
YCB5RL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage (V): |
230/400 |
| Rated Current (a): |
6, 10, 16, 20, 25, 32, 40 |
| Rated Frequency(Hz): |
50/60 |
| Dielectric Test Voltage(Kv): |
2.0 |
| Rated Impulse Withstand Voltage(V): |
4000 |
| Rated Breaking Capacity(a): |
6000 |
| Insulation Voltage(V): |
500 |
| Protection Degree: |
IP20 |
| Curve: |
B,C,D |
| Mechanical Life: |
8000 |
| Arc-extinguishing Medium: |
Air |
| Structure: |
MCB |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Certification: |
CCC |
| Operation: |
Electric Type |
| Installation: |
Insert |
| Speed: |
Normal Type Circuit Breaker |
| Poles Number: |
1p+N,3p+N |
Product Description

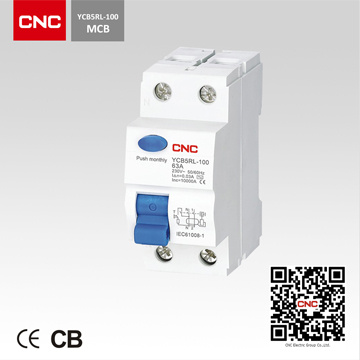

Hot product Residual Current Circuit Breaker (YCB5RL)
About CNC
1. China Top 500 Enterprise
2.26 years rich experience in manufacturing electrical products
3. Sales in over 100 countries
Specifications
1. Protection against the effects of sinusoidal alternating earth fault currents
2. Protection against indirect contacts and additional protection against direct contacts
3. Protection against fire hazard caused by insulation faults
4. Controlling and Switching
5. Used in residential building, non-residential building, energy sources, industry and infrastructure
WHY US?
1. We Are Suppler of Three Gorges Project, China National Petroleum, Sinopec Group;
2. China Famous Export Enterprise, Our Products Sale in Over 100 Countries;
3. Our Laboratory is China Key Industrial Electrical Laboratory;
4. We have completely sales service system, ensure every detail is going smooth.
5. We have new designed products each year by our R&D Dpartment.
6. Perfect testing system ensure each product is qualified.
7. Want know more of us? Waiting for your inquiry.
|
Type |
Standard |
|
lEC/EN 61008-1 |
Electrical
features |
Leakage type |
|
Electromagnetic type |
|
Rated current In |
A |
16,25,32,40,50,63,80,100 |
|
Type (wave form of the earth leakage sensed) |
|
A,AC |
|
Poles |
P |
2,4 |
|
Rated voltage Ue |
V |
240/415 |
|
Insulation voltage Ui |
V |
500 |
|
Rated frequency |
Hz |
50/60 |
|
Rated breaking capacity Inc=IΔc |
A |
600,010,000 |
|
SCPD fuse |
A |
6000 |
|
Rated impulse withstand voltage (1.2/50) Uimp |
V |
2.5 |
|
Dielectric test voltage at ind. Freq. for 1min |
kV |
0.03,0.1,0.3 |
|
Rated sensitivity IΔn |
A |
500(In≤40A); 630(In=63A);1000(In=80A/100A) |
|
Rated residual making and breaking capacity IΔm |
A |
10000 |
|
Pollution degree |
|
2 |
Mechanical
features |
Electrical life |
t |
4000 |
|
Mechanical life |
t |
8000 |
|
Protection degree |
|
IP20 |
|
Storage temperature |
°C |
-25~+70 |
|
Ambient temperature (with daily average≤35°C) |
°C |
-5~+40 |
|
Installation |
Terminal connection type |
|
Cable/Pin-type busbar |
|
Terminal size top / bottom for cable |
mm² |
25/35 |
|
AWG |
18-3/18-2 |
|
Terminal size top / bottom for busbar |
mm² |
10/16 |
|
AWG |
18-8/18-5 |
|
Tightening torque |
N*m |
2.5 |
|
In-Ibs |
22 |
|
Mounting |
|
On DIN rail EN 60715(35mm)by means of fast clip device |
|
Connection |
|
From top and bottom |
|
|
Type |
|
Tripping sensitivity data |
|
AC |
For residual sinusoidal alternating
currents |
30mA |
For personnel, material and fire
protection, as well as for protection
against direct contact |
|
A |
For residual sinusoidal alternating
currents and residual pulsating
direct currents |
100mA |
For providing protection against
indirect contacts |
|
S |
For selectivity, with time delay |
300mA |
For preventative fire protection in
case of insulation faults |
