| Prod Model: |
YCB7LE-1P+N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage (V): |
240/415 |
| Rated Current (a): |
6,10,16,20,25,32,40,50,63 |
| Rated Frequency(Hz): |
50/60 |
| Dielectric Test Voltage(Kv): |
2.0 |
| Rated Breaking Capacity(a): |
6000 |
| Rated Impulse Withstand Voltage(V): |
6000 |
| Insulation Voltage(V): |
500 |
| Protection Degree: |
IP20 |
| Curve: |
B,C,D |
| Mechanical Life: |
4000 |
| Arc-extinguishing Medium: |
Air |
| Structure: |
MCB |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Certification: |
CCC |
| Operation: |
Electric Type |
| Installation: |
Insert |
| Speed: |
Normal Type Circuit Breaker |
| Poles Number: |
1p+N,2p,3p,3p+N,4p |
Product Description

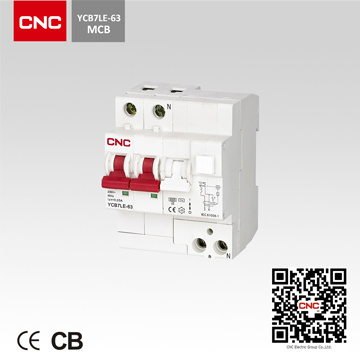

Hot product Residual Current Circuit Breaker (YCB7LE-1P+N)
About CNC
1. China Top 500 Enterprise
2.26 years rich experience in manufacturing electrical products
3. Sales in over 100 countries
Specifications
YCB7 series circuit breaker is used in lighting distribution system or motor distribution system for protecting overload and short circuit in the system. The product is neoteric in structure, lig ht in weight, reliable and excellen t in performance. Its frame and parts adopt plastics of high fire resistant and shockproof. The product, with long life, is mainly used in AC 50Hz/60Hz single pole 240V or two, three, four poles up to 415V circuit for overload and short circuit protection, as well as for unfrequently switching electric equip ment and lighting circuit in normal case. The products comply with IEC 60898 & GB10963-1999.
General
1. Overload protection
2. Short circuit protection
3. Controlling
4. Used in residential building, non-residential building, energy source industry and infrastructure.
5. Classified as follows according to the type of instantaneous release: Type B(35)ln, type C(5-10)ln, type D(10-20)In
WHY US?
1. We Are Suppler of Three Gorges Project, China National Petroleum, Sinopec Group;
2. China Famous Export Enterprise, Our Products Sale in Over 100 Countries;
3. Our Laboratory is China Key Industrial Electrical Laboratory;
4. We have completely sales service system, ensure every detail is going smooth.
5. We have new designed products each year by our R&D Dpartment.
6. Perfect testing system ensure each product is qualified.
7. Want know more of us? Waiting for your inquiry.
|
Type |
Standard |
|
lEC/EN 61009-1 |
|
Electrical features |
Rated current In |
A |
6,10,16,20,25,32,40,50,63 |
|
Type (wave form of the earth leakage sensed) |
|
A,AC,AC~S,A~S |
|
Poles |
P |
1P+N,2P,3P,3P+N,4P |
|
Rated voltage Ue |
V |
240/415 |
|
Insulation voltage Ui |
V |
500 |
|
Rated frequency |
Hz |
50/60 |
|
Rated breaking capacity Icn |
A |
6,000 |
|
Rated impulse withstand voltage (1.2/50) Uimp |
V |
6000 |
|
Dielectric test voltage at ind. Freq. for 1min |
kV |
2 |
|
Rated sensitivity IΔn |
A |
0.01,0.03,0.1,0.3 |
|
Break time under IΔn |
s |
500(In≤40A); 630(In>40A) |
|
Rated residual making and breaking capacity IΔm |
A |
500 |
|
Pollution degree |
|
2 |
Mechanical
features |
Electrical life |
t |
4000 |
|
Mechanical life |
t |
4000 |
|
Protection degree |
|
IP20 |
|
Storage temperature |
°C |
-25~+70 |
|
Ambient temperature (with daily average≤35°C) |
°C |
-5~+40 |
|
Installation |
Terminal connection type |
|
Cable/U-type bar/Pin-type busbar |
|
Terminal size top / bottom for cable |
mm² |
25 |
|
AWG |
18-3 |
|
Terminal size top / bottom for busbar |
mm² |
25 |
|
AWG |
18-3 |
|
Tightening torque |
N*m |
2 |
|
In-Ibs |
18 |
|
Mounting |
|
On DIN rail EN 60715(35mm)by means of fast clip device |
|
Connection |
|
From top and bottom |
|
Type |
Test current |
Tripping Time |
Type |
Test current |
Tripping Time |
|
B,C,D |
1.13In |
t≤1h(In≤63A) t≤2h(In>63A) |
B |
3In |
t≤0.1s |
|
C |
5In |
|
B,C,D |
1.45In |
t63A) |
D |
10In |
|
B |
5In |
t<0.1s |
|
B,C,D |
2.55In |
1s
|
C |
10In |
|
|
D |
20In |
