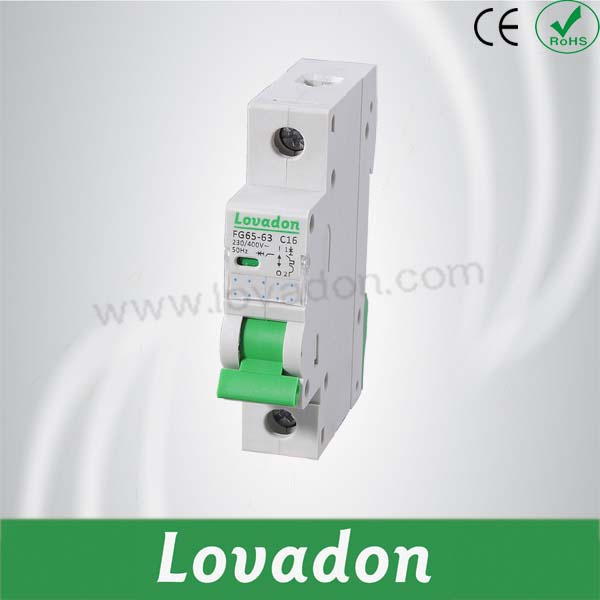

Hot Sale Fg65-63 Miniature Circuit Breaker

Name: Hot Sale Fg65-63 Miniature Circuit Breaker
Brand: all-electronics-online.com
SKU: 753600415
Availability: InStock
Rating: 4.7 (48 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	60/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FG65-63
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Breaking Capacity:	6ka
Rated Current:	0.5-63A
Rated Voltage:	230/400V AC,Max. 60VDC
Rated Frequency:	50Hz,60Hz
Tripping Characteristic:	C
Cross-Section Of Connecting Lead:	1-25mm^2
Rated Impulse Withstand Voltage:	4000
Electrical Life(Circle):	4000
Isolating Class:	B
Brand Name:	Lovadon
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	1
Certification:	CE

Product Description

10 KA according IEC 60947-2 and IEC 60947-4
* Mechanical life :20,000 times
* Ambient temp:-30ºC to +70ºC
* Terminals: Can access bus-bar and multi-strand wire at the same time, apply to below 35mm^2 wires
* Overcurrent protection features:as same as SPM1 series products.

Rated current	Pole	Operating Voltage	Instantaneous tripping type		Breaking capacity
			C Type	D Type
6A,10A,16A, 20A,25A,32A, 40A,50A,63A	1P	220-380V	(5-10) In	(10-20) In	6KA
	2P,3P,4P	380V

mini circuit breaker is mainly used for avoiding overload and short circuit .It is especially used in illumination and distribution system of industry and commerce .It has high breaking capacity. The shell and parts are made of fire resistance and shock resistance plastic .It is mainly used for avoiding short circuit of AC/60HZ rated voltage of single pole 240V and two,three of four poles 415V circuit. It can alsop be set for infrequent switch on and off the electrical equipment and circuit in normal condition. This product complies with CE.

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.

Yueqing Lovadon Electric Co., Ltd wsa founded in 2012, located in Liushi Chandong Industrial Zone where is near the national scenery area-Yandang Mountain. Our company covers an area of 500m² And has around 30 staff members. It has advanced automation equipment and testing equipment, with a number of high-education management team and staffs. The company speciallized in manufacturing low voltage and high voltage electrical product such as Circuit Breaker, Contactors, Distrubition Boxes, Automation products, Switches, Power source, Lightning arrester, Composite suspension insulator, and so on. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets.
