| Prod Model: |
WR |
| Accuracy: |
0.5 |
| Ambiient Temperature: |
-10~70 Celsius, |
| Measurement Range: |
-40~1800 Celsius |
| Display Type: |
LCD |
| Input Signal: Thermocouple: |
Rtd:PT100\Cu50\Cu100; K\E\J\T\S\B |
| Structural Type: |
Assemble, Armour |
| Site Display: |
Site Display |
| Output Signal Type: |
4-20mA (1-5V); 4-20mA with Hart Protocol |
| Certification: |
Ce, RoHS, Ex |
Product Description

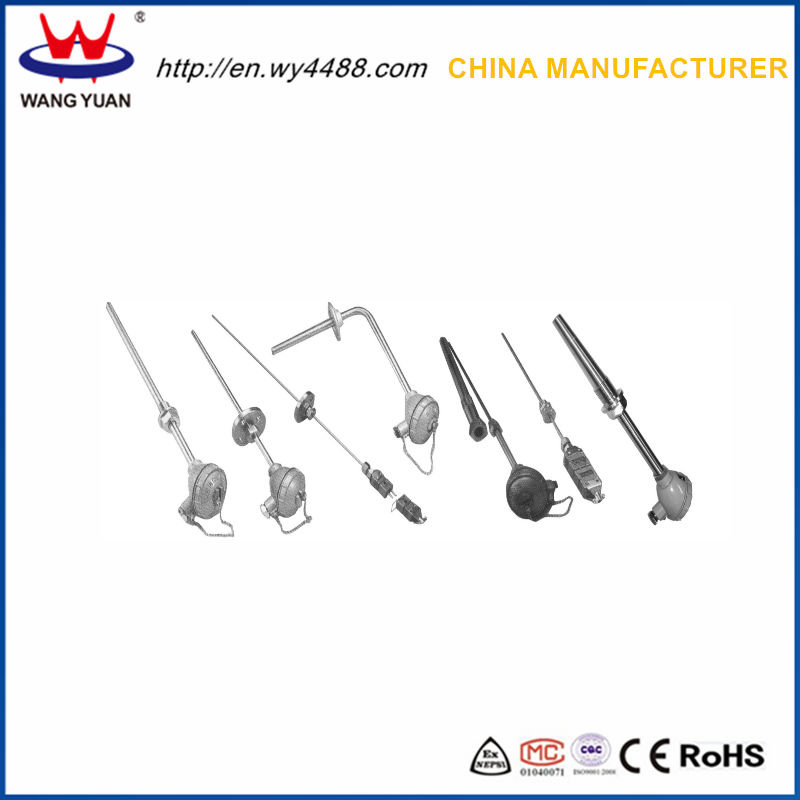

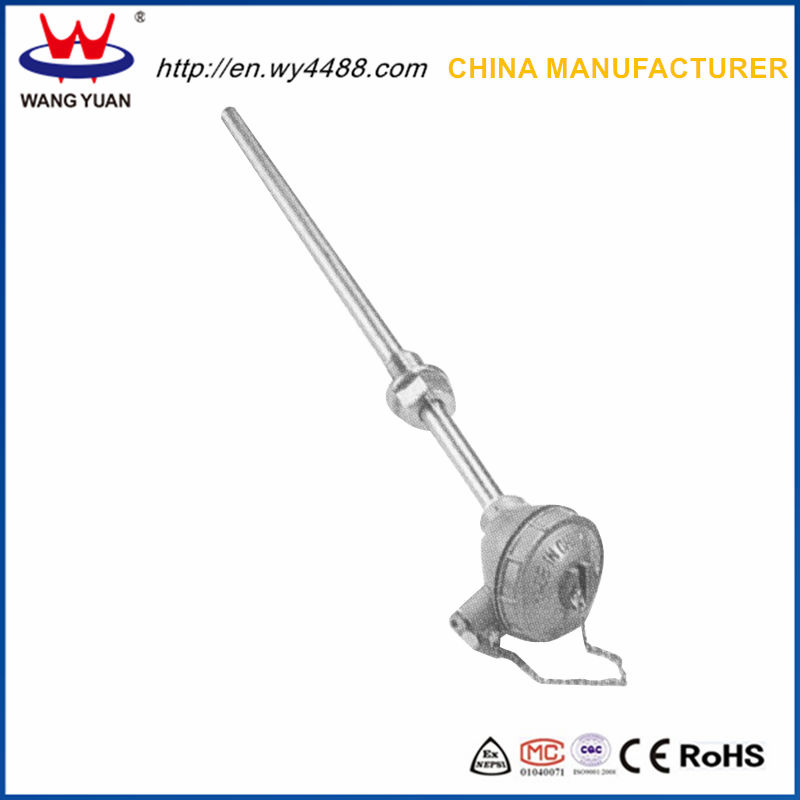

Hot sale pt100 thermocouple temperature sensor
Model: WB
Application:
This series assembly 4-20ma temperature transmitters can be used for the temperature measuring and control in the erumpent processing of chemical fiber, rubber plastic, food , boiler and other industries.
Description:
1. The function of the WB series temperature transmitters are to amplify the electrical signals from the sensor, to correct and depending on the model galvanically insulate them.
2. The conditioned signal can then easily be transmitted over long distances to the in-/output sections of a process control system or controller.
3. Since the electrical signal from the thermocouple or resistance thermometer is relatively strong, signal amplification in close proximity to the sensors is not required.
Features of Temperature Transmitters :
- Linearity correct feature
- Input signal: Thermocouple J,K, E, T,S,B
- Thermal resistance PT100, Cu50, Cu100
Specification:
Name | WB Series Hot sale pt100 thermocouple temperature sensor |
Input signal | Thermocouple:K,E,J,T,S,B |
RTD:Pt100,Cu50,Cu100 |
Ouput signal | 4~20mA(DC)/ HART |
Accuracy | See the chart below. |
Resistance Range | 0~500Ω |
Supply voltage | 24V(DC)±10% |
Ambient temperature | Thermocouple: -10~70ºC RTD: -10~85ºC |
Humidity: 5~100%RH |
Installation height | Standard lengths are 150mm , with other lengths quickly available. |
Allowable deviation | Thermocouple: | Allowable deviation | Circuit | Class I | Class II | Class III | analogue | HART | E/J/K | ±1.5ºC or ±1.4%t | ±2.5ºC or ±0.75%t | | >=0.5% | <=0.2K Or ±0.08% | T | ±0.5ºC or ±0.4%t | ±1ºC or ±0.75%t | ±1ºC or ±1.5%t | B/S | ±1ºC or ±0.15%t | ±1.5ºC or ±0.25%t | ±4ºC or ±0.5%t |
Thermal resistance: | Allowable deviation | Circuit | acuracy | value | analogue | HART | Pt100 | Class A | ±(0.15 or ±0.2% l t l | >= ±0.2% | <=0.2K Or ±0.08% | Class B | ±(0.30 or ±0.5% l t l | Cu | - | ±(0.30 or ±0.6% l t l |
|
Notice | 1)If you need a temperature with high accuracy, such as class A for thermal resistance, class 1 for Thermocouple, please contact our sales department for availability.
2)normally the protective tube material is 316L,If you need other material, please consult us for availability. |
Ordering guide of Temperature Transmitters :
WB-PT100 Thermocouple- Φ 25mm- moved flange
Our service:
1. We have rich experience of OEM, factory can manufacture according to your request.
2. We could also send the goods which is labelling your brand name to your customer's warehouse directly.
3. We can offer you neutral packing without our logo and company information.
4. Warranty: We offer 12 months warranty for all of our products from shipping date;
5. You will enjoy free repair service for failures found within the warranty, if there are any problems of manufacturing quality;
6. We provide paid repair services for instrumentation damages beyond the warranty period or not arising from manufacturing quality problem.
