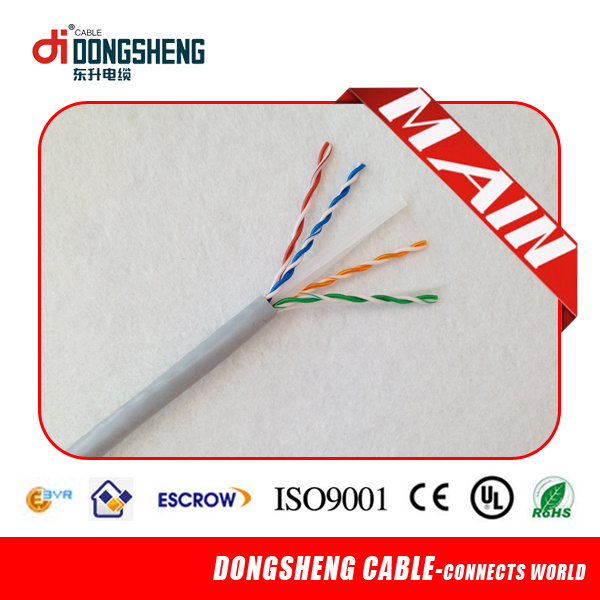

Hot Sale UTP/FTP/SFTP Cat5e CAT6 LAN Cable

Prod Model:	DSC15111104
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Conductor:	0.57 mm Bc/CCA
Insulation:	1.02 mm PE
Jacket:	PVC/PE/LSZH
Filler:	Cross Sperater
Key Words:	CAT6 LAN Cable
Testing:	Fluke Test 90-100m
Application:	LAN Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Type:	Cat 6
Certification:	UL
Model:	Cat5e LAN Cable
Brand:	OEM

Product Description

Hot Sale UTP/FTP/SFTP Cat5e CAT6 LAN Cable

Tips: We can ensure the cable pass FLUKE TEST 100% for CU conductor, with a high
performance in your Cabling solution, or projec.

1. Certification: CE. ROHS,REACH,ISO Listed
2. Compliance: ETL verified ANSI TIA/EIA568-2, ISO/IEC 11801. RoHS Compliant.
3.Application: 100Base-TX, 100VG-AnyLan, 1000Base-T, ATM, Noisy Environment
4. Remark: 250HMZ 550MHz ATM 155MBPS, 100mbps TPDDI, Fast Ethernet etc

CAT6 Lan Network Cable Construction:-  CAT6 LAN Cable

Item	Conductor	Number Of Pairs	Shielding	Drain Wire	O.D.
Cat6 UTP	0.57mm	4	Non	Non	6.1mm
Cat6 FTP	0.57mm	4	Aluminum Foil	Yes	6.8mm
Cat6 SFTP	0.57mm	4	Aluminum Foil + Alloy Braiding	Yes	7.2mm


Cat6 Cable Technical Performance(100m) - CAT6 LAN Cable

Frequency MHz	Impedance ohm	RL dB	Attenuation dB/100m	NEXT dB/100m	ELFEXT dB/100m	PS NEXT dB/100m	PS ELFEXT dB/100m	Delay Skew Ns/100m
1	100±15	20	1.9	74.3	67.8	72.3	64.8	≤45
4		23	3.7	65.3	55.8	63.3	57.7
8		25	5.3	60.3	49.7	58.8	46.7
10		25	5.9	59.3	47.8	57.3	44.8
16		25	7.5	56.3	43.7	54.3	40.7
20		25	8.4	54.8	41.8	52.8	38.7
25		24	9.5	53.4	39.8	51.4	36.8
31.25		24	10.6	51.9	37.9	49.9	34.9
62.5		22	15.4	47.4	31.9	45.4	28.8
100		21	19.8	44.3	27.8	42.3	24.8
155		21	25.1	41.5	23.9	39.5	20.9
200		21	29.0	39.8	21.8	37.8	18.7
250		18	32.8	38.3	19.8	36.3	16.8


 Applications: - CAT6 LAN Cable
 1.Computer Network Cabling Project.
 2.Broadband Network Communication.
 3.Digital ISDN Network and ATM 155Mbps Network
 4.Ethernet Network
 5.Audio and Data Transmission

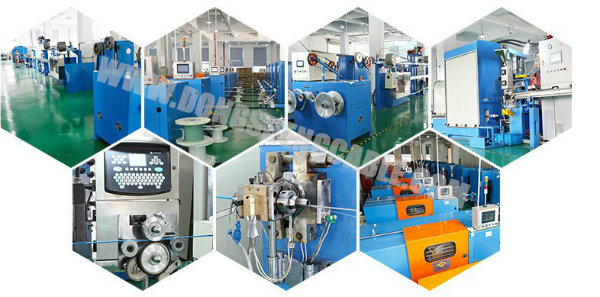

Products Photos & Factory Photos






Other Cables:
1) Lan  Cable / Network Cable UTP/ FTP /SFTP Cable Cat5e Cat6 Cat3
2) Telephone Cable,Telephone Drop Cable, PTT298 Cable , PTT299 Cable
3) Security Alarm Cable / Fire Alarm Cable
4) Optical Fiber Cable
5) Speaker Cable / Power Cable / Electrical Cable / Multi-Core Cable
6) Siamese CCTV Cable RG59+2C , KX6+2C , RG6+2C
7) Trunk Cable QR750 QR540 QR500 QR412
8) KoaxialKable CT100,CT165, KX6, KX8,17VATC,19VATC,SAT703,SAT602
9) 75 ohm Coaxial Cable RG6 RG59 RG7 RG11
10) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 RG214 RG223
11) 50ohm Cable LMR195 LMR200 LMR240 LMR300 LMR400 LMR500 LMR600
12) 75 ohm Coaxial Cable 3C-2V, 5C-2V, 4C-FB, 5C-FB
13) 50 ohm Coax Cable 3D-FB,4D-FB,5D-FB,7D-FB,8D-FB,10D-FB
14) Mini Coax Cable: RG591885A,8218 Cable,1.37mm,0.81mm ect
15) Cabo Coaxial RG6 RG59 RG11 QR500 RF4mm
16) Telecom Cable BT3002, PCM Cable, Multi-Core Coax Cable
17) Coaxial Cable Connector(BNC,RCA,Female, Male)
18) Indoor TV Antenna, Outdoor TV Antenna,Satellite Antenna
19) CATV Transimitter, CATV Amplifier,CATV
