Hot Selling 75W 12V Power Supply 5V 48V LED Switching Power Supply

Name: Hot Selling 75W 12V Power Supply 5V 48V LED Switching Power Supply
Brand: all-electronics-online.com
SKU: 839322695
Availability: InStock
Rating: 4.3 (76 reviews)

Price:	US $ 7.8-9/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-75-12
Output Type:	Single
Warranty:	1 Year
Output Power:	51 - 100W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Brand:	Ann

Product Description

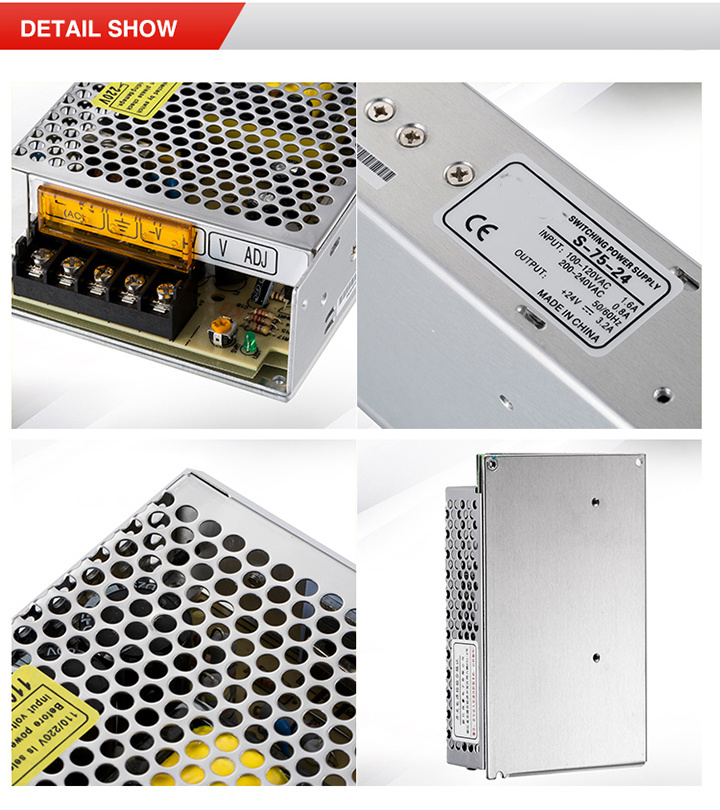

75W 12V DC Switching Power Supply

Features:

1. DC Output 12v 24v 48v

2. AC input range selectable by switch

3. Protections: Short circuit / Overload / Over voltage / Over temperature

4. 100% full load burn-in test

5. Low cost, high reliability

6. 12 months warranty

Specifications:

Model	S-75-12	S-75-15	S-75-24	S-75-48
DC output voltage	12V	15V	24V	48V
Rated output current	6A	5.0A	3A	1.5A
Output current range	0-6A	0-5A	0-3A	0-1.5A
Wave and noise	75mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability	±0.5%	±0.5%	±0.5%	±0.5%
Load stability	±0.5%	±0.5%	±0.5%	±0.5%
Efficiency	78%	79%	82%	83%
Adjustable range for DC voltage	±10%	±10%	±10%	±10%
AC input voltage range:	85~132VAC/170~264VAC selected by switch 47~63Hz;240~370VDC
AC inrush current:	Cold-start current 15A/115V 30A/230V
Overload protection:	105%~150% Type:plusing hiccup shutdown Reset:auto recovery
Setup rise hold-up time:	200ms,50ms,20ms
Withstand voltage:Input and output internal:	1.5KvAC,Output and enclosure:0.5KvAC
Isolation resistance:	Input and output internal,input and enclosure,output and enclosure:500VDC/100MΩ
Working temperature	0~50°C
Safety standards:	GB4943 UL60950 EN60950
EMC standards:	EN55022 GB9254,class A
Overall dimension:	1599738mm
Weight:	0.56Kgs

Our Company is located in " Electric city" -Liushi, China. Ann Electric is one of specialized manufacturers and exporters in low voltage electric & automation products.

Our product range specified as following:

Automation products range including: PLC, HMI, Rotary Encoder, AC Drives, Soft starter, Proximity Switch & Sensor, Counters, Temperature Controller, Stepper Motor & Drivers, Servo Motor & Drives.

Low voltage electrical products range including: Circuit Breaker, Contactors, Fuses, Relays, Push Button& Indicator Lamps, Switches, Power Supply, Distribution Box, Industrial Sockets& Plug, Terminals, Warning light, Electrical Accessories, Electric Power Fitting, Hardware & Tools, Construction Electrical, Lamps & Lighting, Meters & Instruments.

Quality is our life, all our products produce according to the international standard like IEC60898, IEC947-2. Most of our products have got ISO9001, CCC, CE certificates and some of our products have also passed CB, GS, KEMA, UL, VDE certificates. We have won high reputation for its good quality, accurate shipments and reasonable price.

We sincerely welcome customers to cooperate with us on basis of quality and mutual benefit. If you are interested in our 'products, please don't hesitate to contact with us, we will supply quick & satisfied reply.
