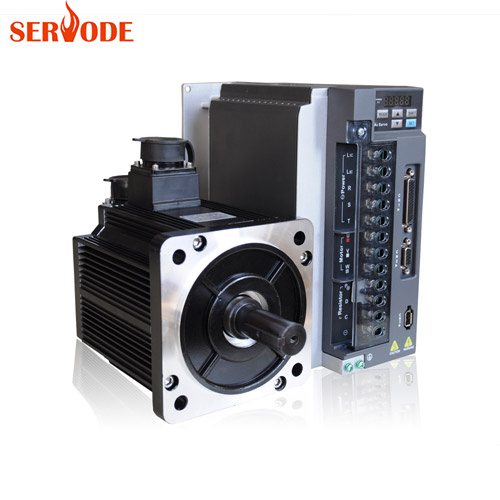

Hotsale 2.0kw 2500PPR Encoder AC Servo Motor and Driver

Hotsale 2.0kw 2500PPR Encoder AC Servo Motor and Driver
Price: US $ 480-530/Set
Min Order: 1/Set
Pay Type: T/T,Western Union,Paypal
Prod Model: 130ST-M07725A+ASD600E2R023AR
Rated Power Range: 2000watt
Encoder: 2500 PPR
Voltage: 3phase 220V
Control Mode: Position, Velocity, Torque Control
Position Control: Pusle or Inner Register
Velocity Control: -10~+10V Analog or Inner Register
Torque Control: -10~+10V Analog or Inner Register
Protocol: Modbus
Communication Port: RS485
Protection Grade: IP65
Number Of Stator: Three-Phase
Function: Position
Brand: Sevode

Product Description

Feature:
650Hz speed loop response frequency
3 times overload capacity
Low noise and vibration
Very high cost-effective
Build in vibration suppression

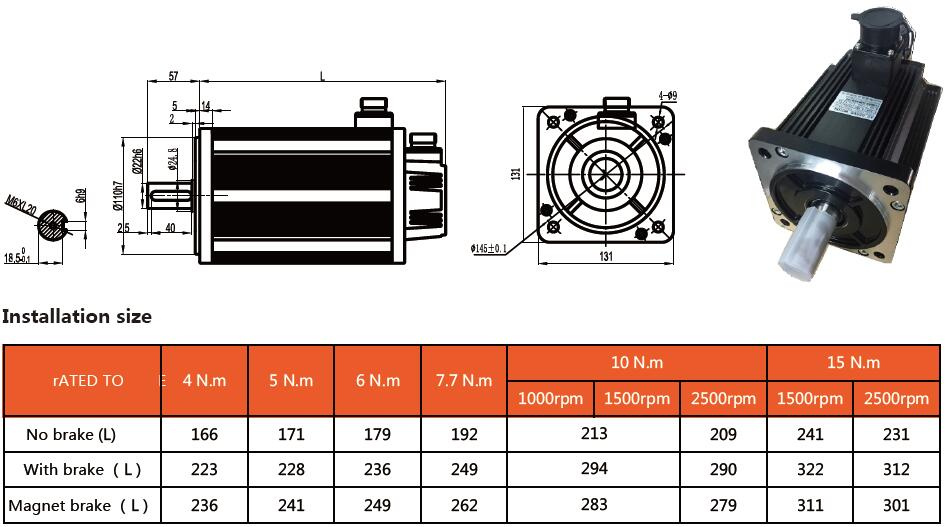

Spec. table
Model130ST-M07725A
Rated power2000w
Encoder2500 ppr optical encoder
Rated line Voltage220V
Rated line current7.5 A
Rated speed2500rpm
Rated torque7.7 Nm
Peak torque22 Nm
BEMF65 V/1000rpm
Torque constant1.03 Nm/A
Rotor inertia1.53 X10^-3 kg.m^2
Winding resistor1.01 ohm
Winding inductance2.94 mH
Electric constant3.8 ms
Weight8.3 kg
Protection gradeIP65
Insulation gradeClass F
BrakeOptional







A&R Technology Co., Ltd is located in Shenzhen China. A&R is short for accurate and reliable. Suppling accurate and reliable automation product to customers is our goals and mission. Based on the professional service team, fast delivery, perfect customer service network to help our customers to promote effecient industrial automation process, we are committed to make our customer successful and satisfy.

A&R is addicted to supply AC servo motor&driver, step motor&driver, CNC machine controller for lathe/turning machine, milling/drilling machine, plasma/flame cutting machine etc. To make customer easy to build to retrofit used CNC machine. We make solutions for CNC lathe, milling, cutting machine. You can get a total system that includes AC servo motor and driver(Step motor and driver) neccessary cable and CNC machine controller in a package. Japanese brand servo system such as SANYO denki, Tamagawa servo systems are provided. Scara robot and desktop robot are new business in our business system. It is advanced on cost-effective. In total. We can have wealth choice to customer.

Now we have already built a wide business all over the worlds. That main customer is from Middle East, Southeast Asia, Russia and India. We hope to build a stable business relation ship with you in near future.
