| Prod Model: |
PIR300B |
| Model: |
PIR300b |
| RoHS Compliant: |
Lead Free |
| Spectral Response: |
5-14 |
| Window Size: |
4*5mm |
| Offset Voltage: |
0.3~1.2V |
| Supply Voltage: |
3-15V |
| Operating Temp: |
-30-70 Degree |
| Transmittance: |
≥75% |
| IR Receiving Electrode: |
2*1mm, 2 Elements |
| Encapsulation Type: |
to-5 |
| Material: |
Si+ Matel |

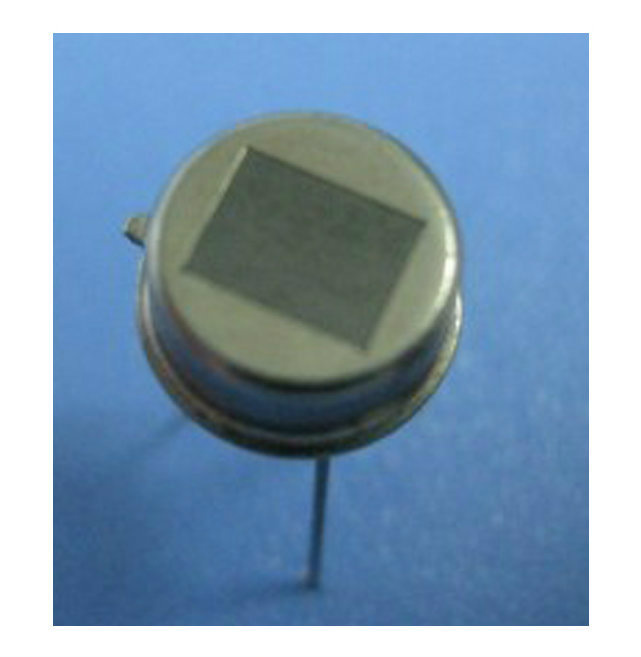

Product Description
Security alarm use Dual Element Motion PIR Sensor 300B PIR motion detector sensor
Human infrared PIR detector, plastic small PIR detector sensor PIR300b 4*5mmBrief Introduction:
- Part No.: PIR300B
- Usage: Universal big window probe, can be used for automatic lighting,automatic door, toy,into alarming, etc
- Sensitive type: Dual Element
- Size: TO-5 packaging

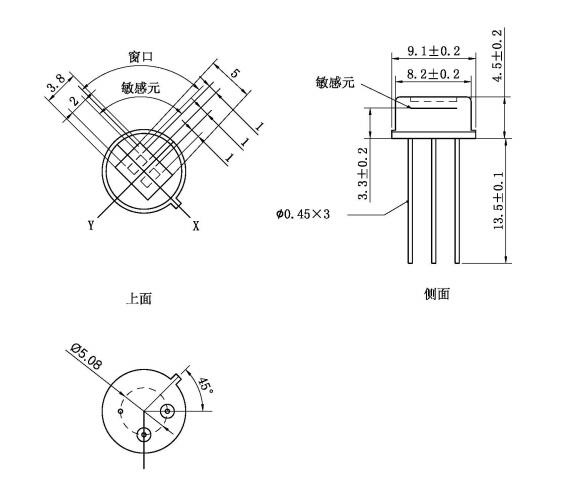

Specifaction| Project | | Testing condition | | specification |
| | ambient temperature 25ºC | | |

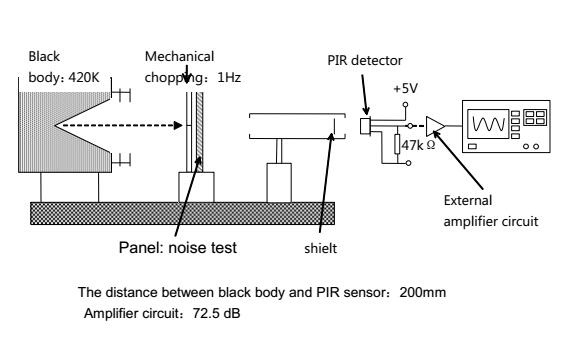

| | blackbody temperature 420K( 147˚C ) | | |
| signal output | modulation frequency 1HZ | | ≥ 3 Vp-p |
| | magnification | 72.5 dB ( operational | amplifier | |
| | | | | |
| | 5000X) | | | |
| | Vd= 5V,Rs=47KΩ | | |
| | | | |
| | ambient temperature 25ºC | | <170mVp-p |
| | magnification | 72.5 dB ( operational | amplifier | |
| Noise | | | | Max. |
| | 5000X) | | | |
| | | | | (Typ. 100mVp-p) |
| | Vd= 5V,Rs=47KΩ | | |
| | | | |
| | blackbody temperature 420K( 147˚C ) | | |
| degree of | magnification | 72.5 dB ( operational | amplifier | <15% |
| balance [*] | 5000X) | | | |
| | | | | |
| | Vd= 5V,Rs=47KΩ | | |
| Mains voltage | | | | 3~15V |
| | | | | |
| Source | Vd= 5V,Rs=47KΩ | | 0.4~1.1V |
| Voltage | | | |
| | | | | |
| response time | Plus electric signal stability after the time required for output | <15S |
Working Principle Pyroelectric infrared sensor would change charge when radiant energy changes. The effect can be used in detecting the change of infrared radiant.The sensors apply to human motion detector,passive infrared burglar alarm and automatic light switch. Based on the same theory, the pyroelectric infrared sensor applies to gas detection with infrared absorption.
Typical Application 1. Passive infrared burglar alarm: strong anti-interference for strong with light and electromagnetic radiation
2. Human motion detector
3. Human motion detector of ceiling
4. Gas analysis
5. Non-contact infrared measurement
Picture Show

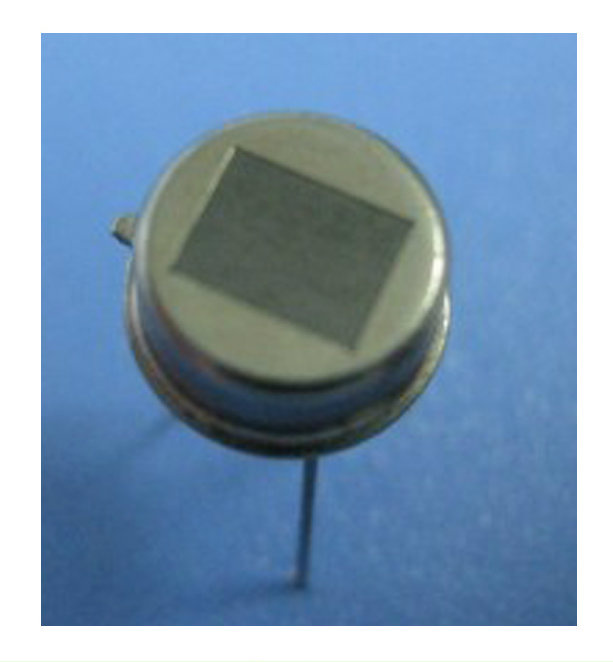

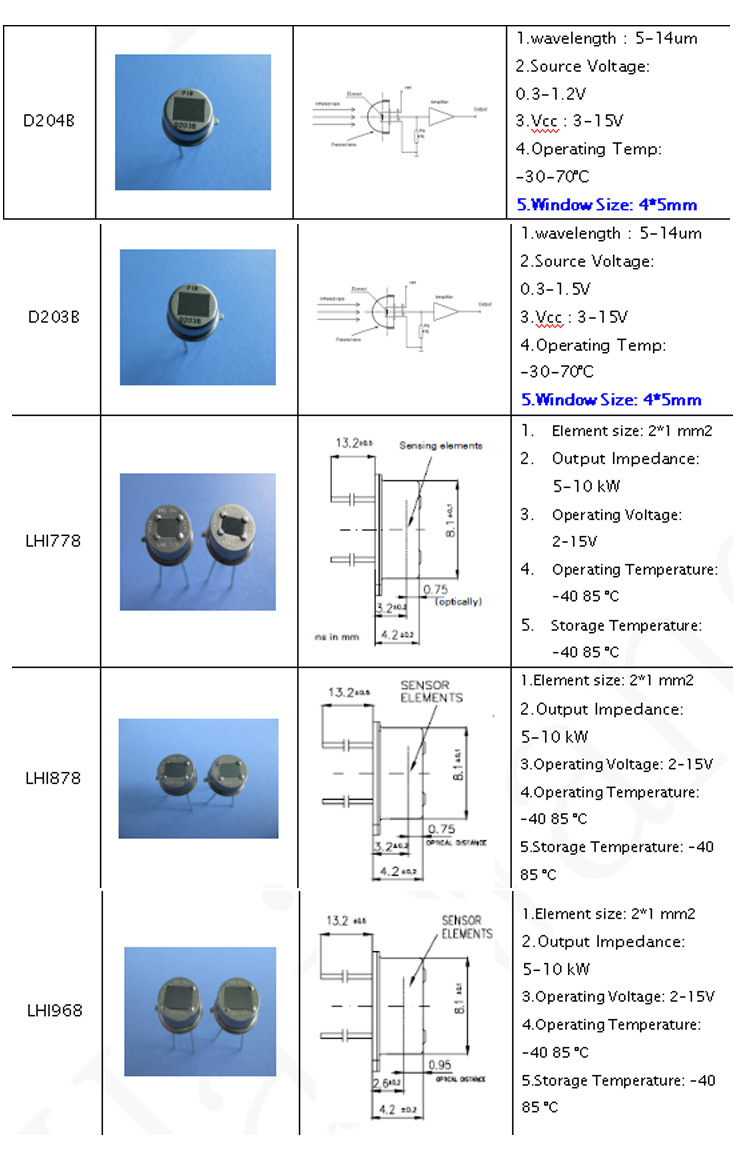

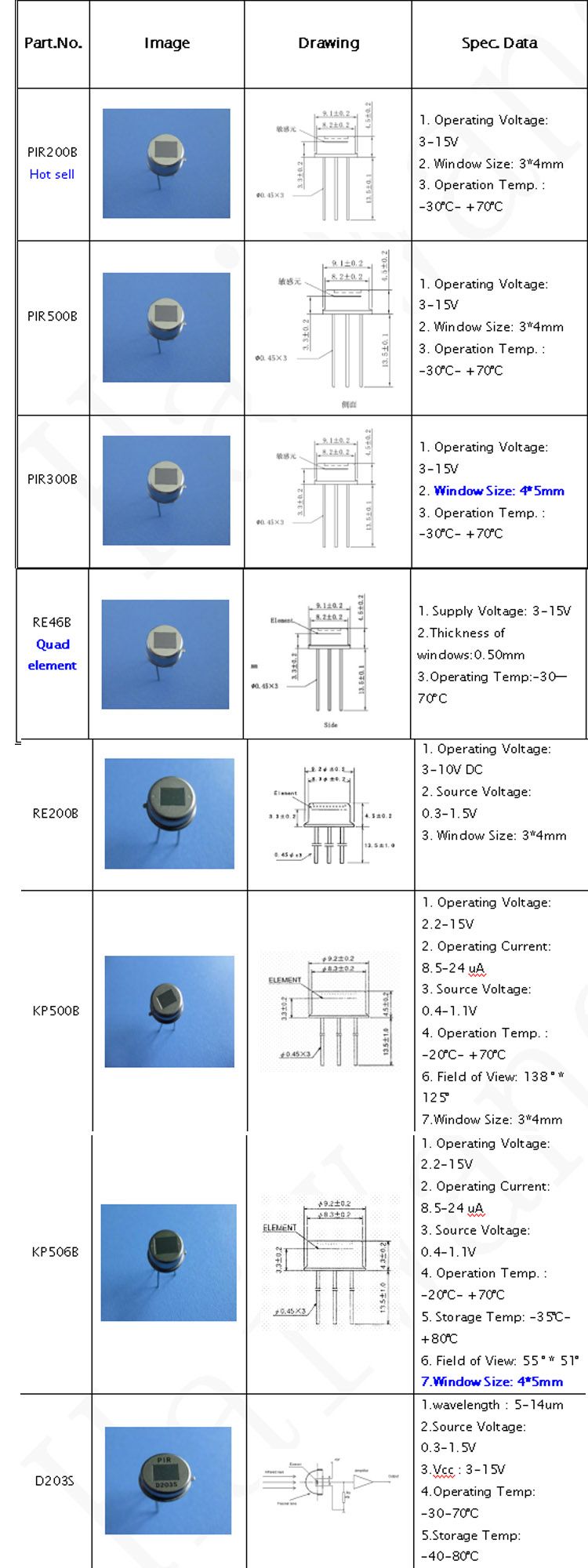

PIR Sensor Series for your choice:
