HUP Copper Terminals

HUP Copper Terminals
Price: Negotiable
Trade Terms: FOB
Min Order: 1 /Piece
Pay Type: L/C,T/T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Cable Lugs

Product Description

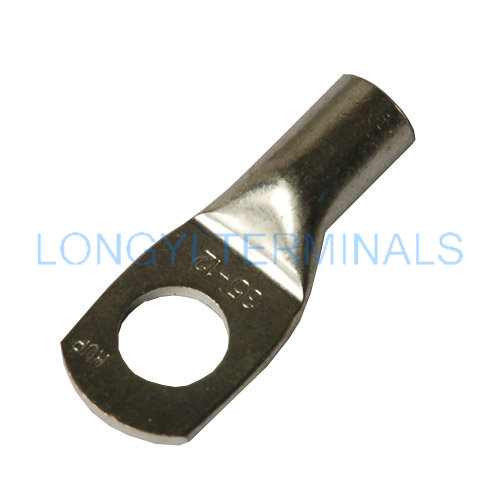

HUP cable lugs are suitable for the connection of copper conductors (section 1.5-630mm2) in power cable with electronic equipment, they are made of higher 99.99 % pure copper tube T2 and coated with tin. Working temperature -55oC-150oC.
PART NO
2010-2012
ITEM NO
2010-2012
DIMENSIONS
φE OD ID D B L
LY0004-0001 HUP1.5-3 3.2 3.3 1.8 6.5 6 15.3
LY0004-0002 HUP1.5-4 4.3 3.3 1.8 6.5 6 17.0
LY0004-0003 HUP1.5-6 6.5 3.3 1.8 9 6 22.5
LY0004-0004 HUP2.5-3 3.2 4.2 2.3 7.5 6 15.3
LY0004-0005 HUP2.5-4 4.3 4.2 2.3 7.5 6 17.0
LY0004-0006 HUP2.5-5 5.3 4.2 2.3 8.5 6 18.8
LY0004-0007 HUP2.5-6 6.5 4.2 2.3 9.5 6 22.5
LY0004-0008 HUP2.5-8 8.5 4.2 2.3 13 6 27.8
LY0004-0009 HUP4-5 5.3 5.0 3.0 9.0 8.0 21.8
LY0004-0010 HUP4-6 6.5 5.0 3.0 10.0 8.0 25.5
LY0004-0011 HUP4-8 8.5 5.0 3.0 13.0 8.0 30.5
LY0004-0012 HUP6-5 5.5 6.5 3.5 10.0 9.0 27.5
LY0004-0013 HUP6-6 6.5 6.5 3.5 12.0 9.0 27.5
LY0004-0014 HUP6-8 8.5 6.5 3.5 15.0 9.0 33.0
LY0004-0015 HUP6-10 10.5 6.5 3.5 17.0 9.0 37.0
LY0004-0016 HUP6-12 13.0 6.5 3.5 19.0 9.0 41.0
LY0004-0017 HUP10-5 5.5 7.0 4.5 12.0 10.0 28.5
LY0004-0018 HUP10-6 6.5 7.0 4.5 12.0 10.0 28.5
LY0004-0019 HUP10-8 8.5 7.0 4.5 15.0 10.0 35.0
LY0004-0020 HUP10-10 10.5 7.0 4.5 17.0 10.0 39.0
LY0004-0021 HUP10-12 13.0 7.0 4.5 19.0 10.0 42.0
LY0004-0022 HUP16-5 5.5 8.5 5.5 12.0 13.0 31.5
LY0004-0023 HUP16-6 6.5 8.5 5.5 12.0 13.0 33.2
LY0004-0024 HUP16-8 8.5 8.5 5.5 15.0 13.0 37.5
LY0004-0025 HUP16-10 10.5 8.5 5.5 17.0 13.0 41.5
LY0004-0026 HUP16-12 13.0 8.5 5.5 19.0 13.0 45.0
LY0004-0027 HUP16-14 15.0 8.5 5.5 21.0 13.0 45.0
LY0004-0028 HUP25-5 5.5 10.0 7.0 14.0 15.0 37.5
LY0004-0029 HUP25-6 6.5 10.0 7.0 14.0 15.0 37.5
LY0004-0030 HUP25-8 8.5 10.0 7.0 16.0 15.0 42.0
LY0004-0031 HUP25-10 10.5 10.0 7.0 18.0 15.0 46.0
LY0004-0032 HUP25-12 13.0 10.0 7.0 19.0 15.0 48.0
LY0004-0033 HUP25-14 15.0 10.0 7.0 21.0 15.0 52.5
LY0004-0034 HUP35-6 6.5 12.0 8.5 17.0 17.0 39.5
LY0004-0035 HUP35-8 8.5 12.0 8.5 17.0 17.0 44.0
LY0004-0036 HUP35-10 10.5 12.0 8.5 19.0 17.0 49.0
LY0004-0037 HUP35-12 13.0 12.0 8.5 21.0 17.0 51.0
LY0004-0038 HUP35-14 15.0 12.0 8.5 21.0 17.0 54.5
LY0004-0039 HUP35-16 17.0 12.0 8.5 26.0 17.0 58.0
LY0004-0040 HUP50-6 6.5 14.0 10.0 20.0 19.0 47.0
LY0004-0041 HUP50-8 8.5 14.0 10.0 20.0 19.0 47.0
LY0004-0042 HUP50-10 10.5 14.0 10.0 20.0 19.0 51.0
LY0004-0043 HUP50-12 13.0 14.0 10.0 23.0 21.0 56.0
LY0004-0044 HUP50-14 15.0 14.0 10.0 23.0 21.0 59.5
LY0004-0045 HUP50-16 17.0 14.0 10.0 28.0 21.0 62.0
LY0004-0046 HUP50-20 21.0 14.0 10.0 30.0 21.0 67.0
LY0004-0047 HUP70-6 6.5 16.5 12.0 23.5 21.0 53.0
LY0004-0048 HUP70-8 8.5 16.5 12.0 23.5 21.0 53.0
LY0004-0049 HUP70-10 10.5 16.5 12.0 23.5 21.0 56.0
LY0004-0050 HUP70-12 13.0 16.5 12.0 23.5 21.0 59.0
LY0004-0051 HUP70-14 15.0 16.5 12.0 23.5 21.0 62.5
LY0004-0052 HUP70-16 17.0 16.5 12.0 28.0 22.0 66.0
LY0004-0053 HUP70-20 21.0 16.5 12.0 30.0 22.0 72.0
LY0004-0054 HUP95-8 8.5 18.0 13.5 26.0 25.0 60.0
LY0004-0055 HUP95-10 10.5 18.0 13.5 26.0 25.0 60.0
LY0004-0056 HUP95-12 13.0 18.0 13.5 26.0 25.0 62.0
LY0004-0057 HUP95-14 15.0 18.0 13.5 26.0 25.0 65.5
LY0004-0058 HUP95-16 17.0 18.0 13.5 28.0 25.0 70.0
LY0004-0059 HUP95-20 21.0 18.0 13.5 36.0 26.0 82.0
LY0004-0060 HUP120-8 8.5 19.5 15.0 28.0 26.0 65.0
LY0004-0061 HUP120-10 10.5 19.5 15.0 28.0 26.0 65.0
LY0004-0062 HUP120-12 13.0 19.5 15.0 28.0 26.0 65.0
LY0004-0063 HUP120-14 15.0 19.5 15.0 28.0 26.0 67.0
LY0004-0064 HUP120-16 17.0 19.5 15.0 28.0 26.0 70.0
LY0004-0065 HUP120-20 21.0 19.5 15.0 36.0 28.0 85.0
LY0004-0066 HUP150-8 8.5 21.0 16.5 30.5 30.0 70.0
LY0004-0067 HUP150-10 10.5 21.0 16.5 30.5 30.0 70.0
LY0004-0068 HUP150-12 13.0 21.0 16.5 30.5 30.0 72.0
LY0004-0069 HUP150-14 15.0 21.0 16.5 30.5 30.0 72.0
LY0004-0070 HUP150-16 17.0 21.0 16.5 30.5 30.0 74.0
LY0004-0071 HUP150-20 21.0 21.0 16.5 36.0 30.0 88.0
LY0004-0072 HUP185-10 10.5 24.0 19.0 35.0 30.0 83.0
LY0004-0073 HUP185-12 13.0 24.0 19.0 35.0 30.0 83.0
LY0004-0074 HUP185-14 15.0 24.0 19.0 35.0 30.0 83.0
LY0004-0075 HUP185-16 17.0 24.0 19.0 35.0 30.0 83.0
LY0004-0076 HUP185-20 21.0 24.0 19.0 35.0 3.0 91.0
LY0004-0077 HUP240-10 10.5 26.0 21.0 38.0 35.0 93.5
LY0004-0078 HUP240-12 13.0 26.0 21.0 38.0 35.0 93.5
LY0004-0079 HUP240-14 15.0 26.0 21.0 38.0 35.0 93.5
LY0004-0080 HUP240-16 17.0 26.0 21.0 38.0 35.0 93.5
LY0004-0081 HUP240-20 21.0 26.0 21.0 38.0 35.0 93.5
LY0004-0082 HUP300-12 13.0 29.5 23.5 43.0 44.0 111.0
LY0004-0083 HUP300-14 15.0 29.5 23.5 43.0 44.0 111.0
LY0004-0084 HUP300-16 17.0 29.5 23.5 43.0 44.0 111.0
LY0004-0085 HUP300-20 21.0 29.5 23.5 43.0 44.0 111.0
LY0004-0086 HUP400-12 13.0 34.0 27.0 49.5 44.0 114.0
LY0004-0087 HUP400-14 15.0 34.0 27.0 49.5 44.0 114.0
LY0004-0088 HUP400-16 17.0 34.0 27.0 49.5 44.0 114.0
LY0004-0089 HUP400-20 21.0 34.0 27.0 49.5 44.0 114.0
LY0004-0090 HUP500-16 17.0 42.0 31.0 59.0 70.0 150.0
LY0004-0091 HUP500-20 21.0 42.0 31.0 59.0 70.0 150.0
LY0004-0092 HUP630-16 17.0 44.0 34.5 63.5 80.0 170.0
LY0004-0093 HUP630-20 21.0 44.0 34.5 63.5 80.0 170.0
