Hv 100A/200A Outdoor Expulsion Fuse Cutout

Name: Hv 100A/200A Outdoor Expulsion Fuse Cutout
Brand: all-electronics-online.com
SKU: 715502215
Availability: InStock
Rating: 4.7 (49 reviews)

Price:	US $ 120/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HV-1, HV-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Drop Out Fuse With Porcelain:	Drop out Fuse
Rated Voltage:	11kv, 12kv, 15kv, 20kv......
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage

Product Description

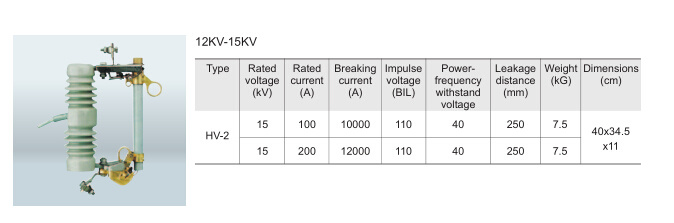

11KV-36KV Outdoor Expulsion Drop-out Type Distribution Fuse Cutout

Application: The expulsion fuse cutout offer reliable mechanism for providing circuit protection in Aerial distribution systems for voltages ranging from 11kV to 36kV. It is designed to be installed outdoors for vertical cross arm or pole mounting.We manufactures the expulsion fuse cutout in both Porcelain & Silicone rubber insulators.

Ratings: 11kV-36kV.

Standards: IEC 600282-2

Features:

1, High over-current protection capability, high breaking current.

2, High industrial frequency withstands voltage, and mechanical strength, etc.

3, High quality on strict testing.

Technical Data:

Rated voltage: 11kV to 66kV.

Rated current: Up to 200A.

Note: For detail, please refer to the catalogue.
