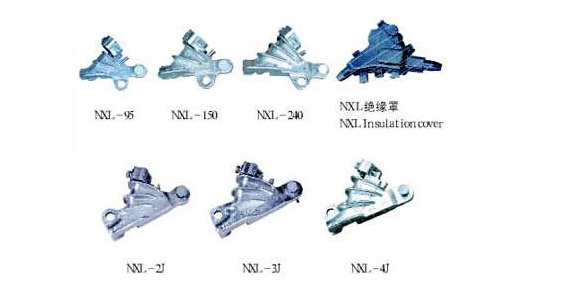

Nxl Series Wedge Type Strain Clamp Ad Insulation Cover

Name: Nxl Series Wedge Type Strain Clamp Ad Insulation Cover
Brand: all-electronics-online.com
SKU: 741598195
Availability: InStock
Rating: 4.7 (133 reviews)

Price:	US $ 20/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	NXL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Nll-1 Insulation Cove:	Nll-2 Iinsulation Cover
Type:	Current Fuse
Breaking Capacity:	High
Usaga:	Electronic

Product Description

Specifications
1. Material: High-intersity oxidate-resistanle aluminium alloy
2. Excellent weather proof performance
3. Accurate delivery
Application
NXL Series strain clamp(wedge type)is suitable for distribution sire up to 20KV, fixing the aerial insulation aluminium conductor or naked aluminium conductor on the rotate angle or insulator of terminal strain pole, and then fixing and tighting the aerial conductor, insulation cover and strain clamp are used together. It's action is insulation protection.

Structure feature
Choose the unmagnetic character high-inte-rsity oxidate resistanle aluminium alloy. No waste electric energy.
Wedged-Locked structure, easy-installation.
An are embrace the most part, conductor can't
Change. Large grip strength.

Insulation cover performance feature
Withstand voltage: ≥ 18KV keep voltage one minutenot breakdown.
Insulation resistance: >1.0× 1014Ω .
Environments temperature: -30° C~90° C.
Weather proof performance: Have good performanced after 1008 hours artifical climate aging test.

Part No.	Applicable Conductor (mm)				Rated Failure Load (KN)
		C	M	U bolts
NLL-1	5.0-10.0	18	16	M12*2	40
NLL-2	10.0-14.0	18	16	M12*2	40
NLL-3	14.0-18.0	28	18	M14*3	70
NLL-4	18.0-23.0	34	18	M16*3	90
NLL-27	12.48-21.66	30	18	M16*4	90
NLL-5	23.0-29.0	36	18	M16*5	100
NLL-6	25.9-32.67	40	22	M16*5	100

Chongqing Ziyong Technology Co., Ltd(Wenzhou(Yueqing) Ziyong Electrical Co., Ltd )is a professional supplier and exporter of electric cable connectors and fittings. Our products include a wide range of Aerial Electrical Fittings (Main products like: Insulation piercing connectors, suspension clamps, anchor clamp, etc. ); A variety of Electric Power Fittings (PG clamps, Aluminium alloy stain clamps, wedge clamps, earth rod); Various kinds of terminals, lugs and link fittings; And many other products for power line system.

Our products are widely used in LV & MV power line system. All of our products with highest quality. We are CE certified, have the ISO9001: 2000 certificate, all the produce is according to International Standard, such as NFC, GB and so on. We also offer OEM service of customized requests. We owns the most advanced technology. Have the ability to research and design electricala apparatus by ourselves.

We also hope that we can receive the feedback from you on evaluating our products, offering your good ideas. Let us build up international quality in China together!
