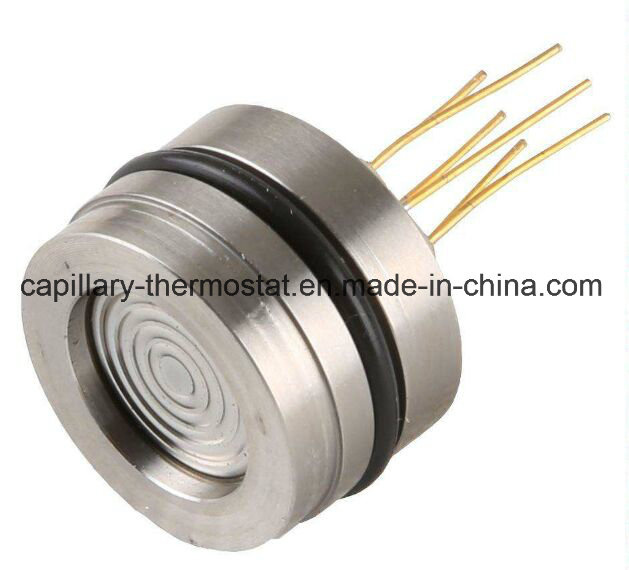

Hx-100 Oil-Filled Silicon Piezoresistive Pressure Sensor
| Price: |
Negotiable/Piece |
| Min Order: |
3000/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
HX-100 |
| Range: |
-100kpa~10kpa~100MPa |
Product Description
Description:
The Piezoresistive pressure sensor imported high precision, high stability force sensitive chips, adopted advanced technology, military industry production conditions and equipment manufacturing delicately. Widely used in petroleum, chemical, metallurgy, electric power, aviation, medical equipment.
Standard Range:
| (Power Supply:1.5mA or 5VDC) |
| Range | Overload Pressure | Full Scale Output(mV) | Typical Value(mV) | Pressure Form |
| 0~10 kPa | 300% | 35~60 | 45 | G/D |
| 0~20 kPa | 300% | 70~110 | 90 | G/D |
| 0~35 kPa | 300% | 55~80 | 70 | G/A/D |
| 0~70 kPa | 300% | 55~80 | 60 | G/A/D |
| 0~100 kPa | 300% | 60~85 | 75 | G/A/D |
| 0~200 kPa | 300% | 65~85 | 75 | G/A/D |
| 0~400 kPa | 300% | 60~80 | 70 | G/A/D |
| 0~600 kPa | 200% | 90~120 | 100 | G/A/D |
| 0~1.6 MPa | 200% | 80~120 | 100 | G/A/D |
| 0~1.0 MPa | 200% | 125~185 | 150 | G/A/D |
| 0~2.0 MPa | 200% | 50~70 | 60 | G/A/D |
| 0~3.5 MPa | 200% | 100~120 | 110 | G/A/D |
| 0~7.0 MPa | 200% | 120~150 | 135 | A |
| 0~10 MPa | 200% | 180~230 | 200 | A |
| 0~25 MPa | 150% | 140~170 | 150 | A |
| 0~40 MPa | 150% | 230~280 | 250 | A |
| 0~60 MPa | 150% | 100~160 | 130 | S |
| 0~100 MPa | 150% | 100~150 | 120 | S |
| Notes: G stands for gauge pressure; A stands for absolute pressure; D stands for differential pressure; and S stands for sealed gauge. |
Technical Parameters:
| Range | -100kPa~100MPa | |
| Parameters | Typical Value | Maximum Value | Unit |
| Zero Output | ±1 | ±2 | mV |
| Nonlinearity | 0.2 | 0.5 | %FS |
| Hysteresis | 0.05 | 0.1 | %FS |
| Repeatability | 0.05 | 0.1 | %FS |
| Input/ Output Impedance | 2.6 | 3.8 | kΩ |
| Zero Temperature Drift* | ±0.15 | ±0.8 | %FS,@25ºC |
| Sensitivity Temperature Drift* | ±0.2 | ±0.7 | %FS,@25ºC |
| Long-term Stability | 0.1 | %FS/year |
| Excitation Current | 1.5(Max input voltage is 10VDC) | mA |
| Insulation Resistance | 500(500VDC) | MΩ |
| Compensation Temperature | 0~50; -10~80 | ºC |
| Operating Temperature | -40~+85 | ºC |
| Storage Temperature | -40~+125 | ºC |
| Response Time | ≤1 | ms |
| Shell & Diaphragm Material | 316L Stainless Steel | |
| Measuring Medium | The fluid which is compatible with 316L, viton, nitrile rubber | |
| Vibration(20~500Hz) | 20 | G |
| Useful Time(25ºC) | >1*108Pressure Circulation(80%FS) | times |
| Packing Medium | Silicon Oil | |
| Weight | 36 | g |
| O Ring | Φ16*1.8mm(nitrile rubber or viton) | |
| *The typical value of 0~10kPa and 0~20kPa's zero temperature drift and sensitivity temperature drift is 0.4%FS@25ºC,max value is 1.6%FS@25ºC. |
Advantages:
The accuracy can reach 0.1%.
Full span output is 100mV(typical value).
Imported high stable chips.
Long-term stability reach 0.1%FS/year.
Cost effective.
