Hy122-30m-Le Split Core Current Transformer for Heyi Current Sensor

Name: Hy122-30m-Le Split Core Current Transformer for Heyi Current Sensor
Brand: all-electronics-online.com
SKU: 796301615
Availability: InStock
Rating: 4.7 (129 reviews)

Price:	US $ 1-10/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HY122-30M-LE
Model:	Hy 122-30m-Le Split Core Current Transformer 13mm
Is Customized:	Yes
Application:	Electronic
Type:	Current Transformer
Phase:	Single

Product Description

HY 122-30M-LE split core current transformer

The KCT range of split core current transformers have been specifically designed to be small CT and easy to open and yet

maintain the accuracy required for kwh meters. The benefit of a split core current transformer is that it can be placed

into position easily and without disturbing or disconnecting the main cables it is monitoring.

Feature

1:The structure of the self-locking, safe, easy to install, portable
2:Wide inner window, allowing clamping of big cables or bus-bars
3:Wide range of sizes to accommodate all the existing installations
4:Isolated plastic case recognized according to UL94-V0
5:Wires plugs,Audio plugs,Power plugs and so on five kinds of plug

Application

1:Current measurement, monitoring and protection for electrical wiring and equipment.

2:Current and power measurement for electric motors, lighting, aircompressor,heating
and ventilation system, air-condition equipment and automation - control system.

3:Current, power and energy monitoring device.

4:Relay protection device.

Technical index:

Electrical Characteristics

NO	Item	Specification

1	Primary Current (Arms 50/60Hz)	30A nom 75A max
2	Secondary Current at primary nominal (rms)	10mA
3	Primary/secondary currents ratio in the nominal range of primary current	3000Ts

5	Winding D.C.Resistance .at 20ºC ('Ω):	460ΩMAX
6	Burden resistive load of secondary winding	20Ω
7	Amplitude Error f(%)	±2%
8	Insulation between primary non-insulated wire, touching inside surface of the window, and secondary output must withstand AC rms voltage	1500V/1mA/1min


9	Impulse withstand voltage 1.2/50us	3500V
10	Ambient operating temperature range	_-20°C~60°C

Specification:

Electrical Characteristics

NO	Item	Describe

1	Housing	ABS OR PC(BLACK)
2	Bobbin	ABS OR PC(BLACK)
3	core	Ferrite
4	Tap	Polyethylene Terephthalate
5	Magnet Wire	2UEW

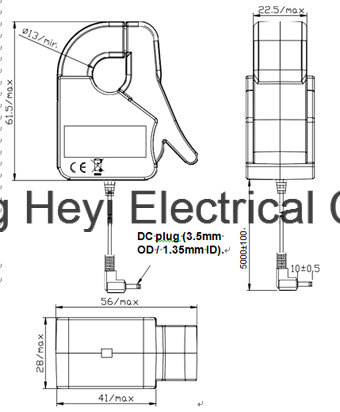

6	Leader wire	UL1185 26#AWG BLACK +DC plug
7	All material to the requirement of ROHS

We are the professional manufacturing the 0.5-35 KV outdoor indoor, fuse cut out composite insulator dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on

1. Who we are

Heyi is dynamic company established in 1992, who specializes in research and design, manufacturing, and distribution of all kind ofcurrent transformer

Further more, we also develop ours business for the electrical product, like energy meter, power meter, power capacitor, relay, proximity switch and so on, focusing in ours customers needs, provide the best solution supporting ours customers, be the best in their filed of businss

2 why choose us

We have our own facilities for R&D, Production, Sales & Market, and Customer Support, specializing in the design, manufacture and delivery of customized solution. Equipped with all kinds of professional instruments and testing equipment, combined the professional standard of product testing methods, now we has an annual output of 5, 000, 000 or more products.

3 Heyi Mission, vision values

Heyi mission is to provide reliable, accurate and customized current transformer solution

Heyi vision is leading global split core CT manufacture and energy solution provider

Values Enthusiastic by our work, we offer a quality personal and close service to our customers

Some products have been approved by CE and IEC certificates.
