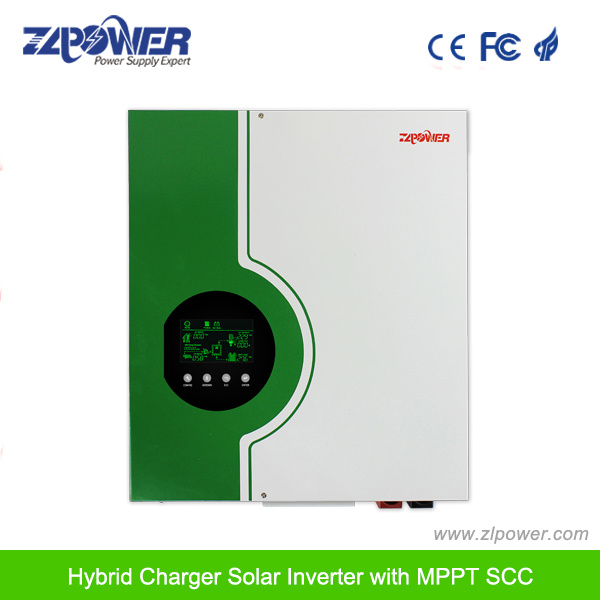

Hybrid Charger Solar Inverter with MPPT Controller
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
PSC Plus Series |
| Warranty: |
2years |
| Input Voltage: |
230VAC |
| Power Factor: |
0.8/0.84 |
| Frequency: |
50Hz/60Hz |
| Display: |
LCD |
| Protection: |
Over Load,Over Temperature,Short Circuit |
| Restart: |
Auto Restart While AC Is Recovering |
| Usage: |
Offgrid Solar Station,Home Solar Power System |
| Color: |
Green and White |
Product Description
The PSC Plus 3K/5K series Hybrid charger solar inverter,mainly used for offgrid solar station,home solar power system,mobile solar power system.
Features:PSC Plus Series AC/Solar charging Off grid Hybrid Inverter.
Built-in MPPT solar charge controller.
Selectable input voltage range for home appliances and personal computers.
Configurable AC/Solar input priority via LCD setting.
Auto restart while AC is recovering.
Smart battery charger design for optimiazed battery performance.
Over load,over temperature,short circuit potection.
Specifications| Model Parameters | PSC Plus3K-24 | PSC Plus5K-48 |
AC
Input | Nominal Power | 3KVA/2400W | 5KVA/4200W |
| Input Voltage Waveform | Sinusoidal (utility or generator) |
| Nominal input Voltage | 230VAC |
| Low Line Disconnect | 170Vac±4%(Normal); 90Vac±4%(Wide&Gen) | 175Vac±4%(Normal); 125Vac±4%(Wide&Gen) |
| High Line Disconnect | 280Vac±4%(Normal); 280Vac±4%(Wide&Gen) | 280Vac±4%(Normal); 280Vac±4%(Wide&Gen) |
| Max AC input Voltage | Max:300VAC |
| Frequency | 50Hz/60Hz(Auto detection) |
AC
output | Output Voltage Waveform | Sine wave |
| Power Factor | 0.8 | 0.84 |
| Bypass Breaker Size | 30A | 40A |
Nominal Output
Frequency (Hz) | 50Hz / 60Hz ± 1Hz |
| Capable of starting electric motor | 1.5HP | 2.5HP |
| Full load efficiency | 90% |
Solar
charger | Charger mode | MPPT |
| Maximun PV Array Power | 960W | 2800W |
| Rated Charge Current | 40A | 60A |
| PV Low Voltage Disconnect | 25VDC±0.6VDC | 50VDC±1.2VDC |
| PV High Voltage disconnect | 75VDC±0.6VDC | 150VDC±1.2VDC |
| Efficiency | ≥98% |
AC
Charger | Nominal Charger Current | 20A @170Vac~280Vac; 10A @90Vac~170Vac | 25A @180Vac~280Vac; 20A @125Vac~180Vac |
| Over charge Protection | 30VDC±0.6VDC | 60VDC±1.2VDC |
| Floating Charge Voltage | 27.4VDC±0.6VDC | 54.8VDC |
Battery
Voltage | Nominal DC input Voltage | 24VDC | 48VDC |
| Low Battery Alarm | 21VDC±0.6VDC | 42VDC±1.2VDC |
| High DC input Alarm & Fault | 29VDC±0.6VDC | 58VDC±1.2VDC |
| | Transfer Time | Normal range : 10ms (typical) 15ms (max)
Generator/wide range: 20ms (typical) 40ms (max) |
System
Parameter | Over-Load Protection | 110%the output,load≥150%,beeps 0.5s every 1s,and Fault after 5s |
| Output Short Circuit Protection | Current limit (Fault after 4 cycles max) |
| Surge Rating | 1:2(VA) |
| Protections | Low battery, over charging, over load, over temp |
General
Specifications
| Operating Temperature Range | 0ºC to 40ºC |
| Storage Temperature | -15ºC~60ºC |
| Operation Humidity | 5% to 95%(non-condensing) |
| Audible Noise | 60dB max |
| cooling | Forced air,variable speed fan |
| Dimension(L*W*H) | 326*268*88.8mm | 456*356.8*118mm |
| Net Weight(kg) | 5.6 | 11.1 |
| | | | |
| Product specifications are subject to change without further notice | |
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
