Shenzhen UPSEN Electronic Co., Ltd. >> Hybrid off Grid High Frequency Inverter with CE, RoHS Certificates

Hybrid off Grid High Frequency Inverter with CE, RoHS Certificates

Hybrid off Grid High Frequency Inverter with CE, RoHS Certificates
Price: US $ 1-50/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: RS
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
OEM: Available
Output Frequency: 50/60Hz
Max Efficiency: >96%
Phase: Single
Power Source: Electric Power

Product Description

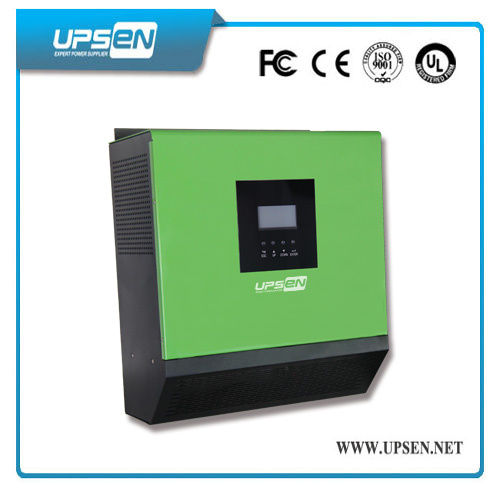

Hybrid off grid high Frequency Inverter with CE, RoHS Certificates
Hybrid Pure Sine Wave Inverter Controller Rainbow Star Series 1000Va-5000Va   (1ph in/1ph out)
Key Features
1:Small size , light weight and potable
2:Auto restart while AC is recovering
3:Built-in MPPT solar charge controller
4:Overload and short circuit protection
5:Compatible to mains voltage or generator power
6:Built-in internal backup DC fuse provides added safety
7:Compatible with Both Linear & Non-Linear Load
8:Selectable charging current based on applications
9:Green LED indicates power on,Red LED indicates wrong
10:High input voltage protection with automatic shutdown
11:Smart battery charger design for optimized battery performance
12:Selectable input voltage range for home appliances and personal computers

Applications
Supply the reliable long back up time power for the home appliances and Portable lights,Alarm systems,Servers Packaging machines,Printing machines etc

Technical Specification
ModelRS1000 RS2000 RS3000 RS4000 RS5000
RATED POWER1000VA/800W2000VA/1600W3000VA/2400W4000VA/3200W5000VA/4000W
INPUT
Voltage208/220/230/240 VAC
Selectable Voltage Range
170-280 VAC (For Personal Computers) ; 90-280 VAC
 (For Home Appliances)

Frequency Range
50 Hz/60 Hz (Auto sensing)
OUTPUT

AC Voltage Regulation
(Batt. Mode)

230 VAC ± 5%
Surge Power2000VA4000VA6000VA8000VA10000VA
Efficiency (Peak)90~93%93%
Transfer Time10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
WaveformPure sine wave
BATTERY & AC Charger
Battery Voltage24VDC48 VDC
Floating Charge Voltage27VDC54 VDC
Overcharge Protection30VDC60 VDC
Maximum AC Charge Current20A25 A
SOLAR CHARGER

Maximum PV Array Open
Circuit Voltage

60VDC/150Vdc (Optional)
110VDC/150Vdc (Optional)

Mppt Range @
Operating Voltage

25-60Vdc/25-150Vdc (Optional)

60-110Vdc/60-150Vdc
(Optional)

Maximum Solae Charge Current
40/60A60A
Max Efficiency  >96%
Standby Power Consumption2W
PHYSICAL
Dimension, D x W x H (mm)350 x 130 x 340380 x 130 x 465
Net Weight (kgs)7.47.6812.513.5




Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.

We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.

We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.

We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
