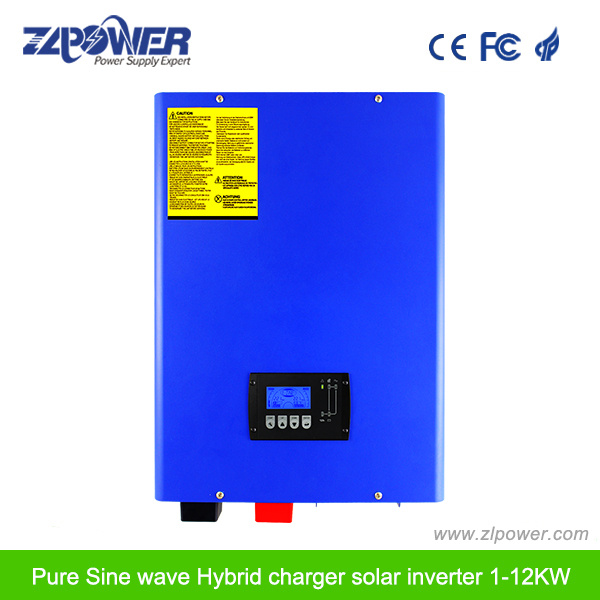

Hybrid off Grid Inverter with MPPT 40A/60A Solar Charger Controller
| Price: |
US $ 275-795/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
GW Plus Series |
| Rated Power: |
1000~12kw |
| Input Voltage: |
120/230VAC |
| Efficiency(Battery Mode): |
>=85% |
| Efficiemcy(Line Mode): |
>96% |
| Battery Voltage: |
12/24/48V |
| AC/DC Priority Modes: |
Yes |
| Restart: |
Generator Restart Signal |
| Peak Power: |
3times |
| Protection: |
Overload, Output Short-Circuit |
| Display: |
LED/LCD |
Product Description
GW Plus. with MPPT solar charge controller can maximize and regulate DC power from solar array to charge battery bank.to start up motor-type loads such as refrigerators,motors,pumps,compressor and laser printers as well as electronic loads like TV's, Computers and power tool,etc.
Features:
AC/Solar charge hybrid off grid inverter.
LED/LCD display, Enhanced funvtions setting via LCD, Man-machine intelligent design.
Built-in 40A/60A MPPT solar charger controller.AC charging current. AC charging also can be closed.
AC/DC priority modes can be set.
Generator restart signal(Dry cotact).
3 times peak power, strong loading capacity.
Overload,output short-circuit protection.
| Parameters | GW Plus1KW | GW Plus2KW | GW Plus3KW |
AC
Input | Nominal Power | 1000W | 2000W | 3000W |
| Input Voltage Waveform | Sinusoidal (utility or generator) |
| Nominal input Voltage | 120/230VAC |
| Low Line Disconnect | 85Vac±4%(Normal) or 80Vac±4% (Wide) for 120V 184Vac±4%(Normal) or 135Vac±4%(Wide) for 230V |
| Low Line Re-connect | 95Vac±4%(Normal) or 85Vac±4% (Wide) for 120V 194Vac±4%(Normal) or 145Vac±4%(Wide) for 230V |
| High Line Disconnect | 136Vac±4%(Normal) or 140Vac±4%(Wide) for 120V 263Vac±4%(Normal) or 263Vac±4%(Wide) for 230V |
| High Line Re-connect | 131Vac±4%(Normal) or 135Vac±4% (Wide) for 120V 253Vac±4%(Normal) or 253Vac±4%(Wide) for 230V |
| Max AC input Voltage | 120V for Max150V / 230V for Max270V |
| Frequency | 50Hz:41-54Hz / 60Hz:51-64Hz |
AC
output | Output Voltage Waveform | Sine wave |
| Power Factor | 0.9~1.0 |
| Nominal Output Voltage (V) | LV:120Vac ±10%rms / HV:230Vac ±10%rms |
| Nominal Output | 50Hz ± 0.3Hz / 60Hz ± 0.3Hz |
| Frequency (Hz) |
| Transfer Time | 20ms(max) |
Solar
charger | Rated Charge Current | 40A | 60A |
| PV Input Voltage range | 30VDC-55VDC for 24VDC / 60-110VDC for 48V |
| Max. PV open circuitarray voltage | 12V for 40Vdc,24V for 55Vdc,48V for 110Vdc |
| Charger mode | MPPT |
| Efficiency | ≥97% |
AC
Charger | Nominal Charger | 35A/50A/70A/90A(According to the inverter model) |
| Current | 5 stages adjustable charging current |
| Over charge Protection | Bat.V≥15.5VDC for 12V battery,Bat.V≥31.0VDC for 24V battery,Bat.V≥62.0VDC for 48V battery ,beeps 0.5s every 1s & fault after 60s |
| Efficiency | Efficiency(Battery Mode) | ≥87% |
| Efficiency (Line Mode) | >98% |
Battery
Voltage | Nominal DC input Voltage | 12/24/48VDC |
| Low Battery Alarm | 10.5VDC±0.3VDC for 12VDC |
| 21VDC±0.6VDC for 24VDC |
| 42VDC±1.2VDC for 48VDC |
| High DC input Alarm & Fault | 16VDC±0.3VDC for 12VDC |
| 32VDC±0.6VDC for 24VDC |
| 64VDC±1.2VDC for 48VDC |
| System Paramete | Over-Load Protection | 110%150%,beeps 0.5s every 1s,and Fault after 20s |
| Output Short Circuit Protection | Current limit (Fault after 10s) |
| Surge Rating(10s) | 1:3(VA) |
| Protections | Low battery, over charging, over load, over temp |
General
Specifications | Storage Temperature | -15ºC~60ºC |
| Audible Noise | 60dB max |
| cooling | Forced air , variable speed fan |
| Dimension(L*W*H) | 480*336*190mm |
| Net Weight(kg) | 22.5 | 23.8 |
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
