Hybrid PCB RO4003c and Fr4 with Immersion Silver and Blue
| Price: |
US $ 0.93/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-874-V8.74 |
| Final Foil External: |
1.0 Oz |
| Final Height Of PCB: |
1.1mm ±0.11 |
| Surface Finish: |
Immersion Silver |
| Solder Mask Color: |
Blue |
| Colour Of Component Legend: |
None |
| Minimum Trace And Space: |
7.8 Mil / 4.4 Mil |
| Minimum / Maximum Holes: |
0.3 mm / 2.5 mm |
| Final Foil Internal: |
1 Oz |
| Via: |
Minimum Size 0.3mm. |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
RO4003c and Fr4 |
| Material: |
Hydrocarbon/Woven Glass and Fiberglass Epoxy |
| Insulation Materials: |
Glass Reinforced Hydrocarbon and Epoxy Resin |
Product Description
1.1 General description

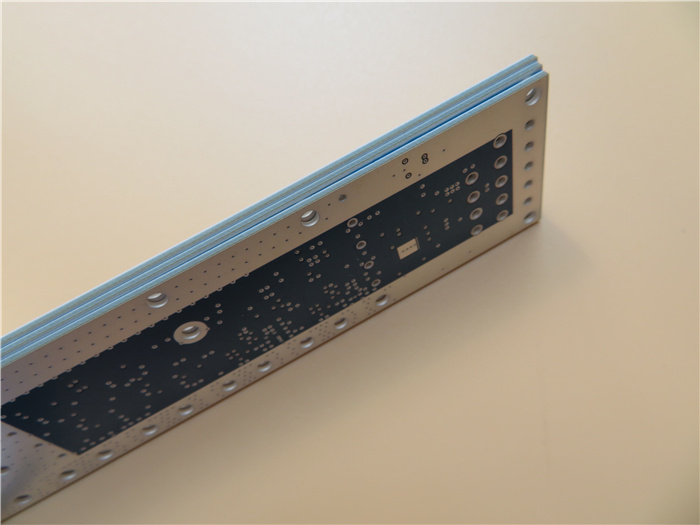

This is a type of 4 layer hybrid PCB built on 0.203mm RO4003C and FR-4 substrate with
Tg 280°C for the application of Radio Frequency. It's 1.1 mm thick without silkscreen on blue
solder mask (Kuangshun) and immersion silver on pads. The base material is from Rogers
and ITEQ supplying single up PCB. They're fabricated per IPC 6012 Class 2 using supplied
Gerber data. Each 25 boards are packed for shipment.
1.2 Features and benifits
a. RO4003C exhibit a stable dielectric constant over a broad frequency range. This makes it
an ideal substrate for broadband applications.
b. SI performance improvement over the stack-ups with all FR4 board
c. Excellent dimensional stability.
d. Environmental-friendly surface treatment, mature technology.
e. Thermal stress test, reliability test, insulation resistance test and ionic contamination test
f. Comprehensive equipment management and maintenance and process control
g. 1-10 pieces are offered
h. Delivery on time: >98%
i. Experienced sales persons and skilled customer services.
1.3 Application
Rf transceiver, Power divider, LNB, Attenuator, Directional coupler Photocoupler
1.4 Parameter and data sheet | PCB SIZE | 140 x 35 mm=1PCS |
| BOARD TYPE | Multilayer PCB |
| Number of Layers | 4 layers |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 35um TOP layer |
| RO4003C 0.203mm |
| copper ------- 35um(1oz) MidLayer 1 |
| FR-4 0.5mm |
| copper ------- 35um(1oz) MidLayer 2 |
| FR-4 0.2mm |
| copper ------- 35um BOT layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 7.8 mil / 4.4 mil |
| Minimum / Maximum Holes: | 0.3 mm / 2.5 mm |
| Number of Different Holes: | 4 |
| Number of Drill Holes: | 91 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | Rogers RO4003C +FR4 hybrid material |
| Final foil external: | 1 oz |
| Final foil internal: | 1 oz |
| Final height of PCB: | 1.1 mm ±0.11 |
| PLATING AND COATING | |
| Surface Finish | Immersion silver |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Blue, KSM-6189BL04/KSM-19H01 |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | NO |
| Colour of Component Legend | NO |
| Manufacturer Name or Logo: | NO |
| VIA | Plated through hole(PTH), minimum size 0.3mm. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
