| Prod Model: |
CD4027BE |
| Logic Family: |
CD4000 |
| Logic Function: |
Jk-Master-Slave Type |
| Fabrication Technology: |
CMOS |
| Number Of Elements Per Chip: |
2 |
| Number Of Element Inputs: |
2 |
| Number Of Element Outputs: |
1 |
| Number Of Channels Per Chip: |
2 |
| Operation Temperature Range: |
-55 to 125 Degree C |
Product Description
Hello, Thank you for your visiting!
We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.Come to us, and we will try the best to support you by controlling our cost as possible as we can achieve WIN-WIN cooperation. | Lead time | Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery. |
| Guarantee | 100% original assembled new ; 30 days warranty |
| Payment | Hang Seng Bank (Hong Kong), Paypal, |
| Shipment | DHL ,TNT ,FEDEX, UPS or any other express as you require |
MANUFACTURER
Texas Instruments
PRODUCT CATEGORY
Flip Flop
DESCRIPTION

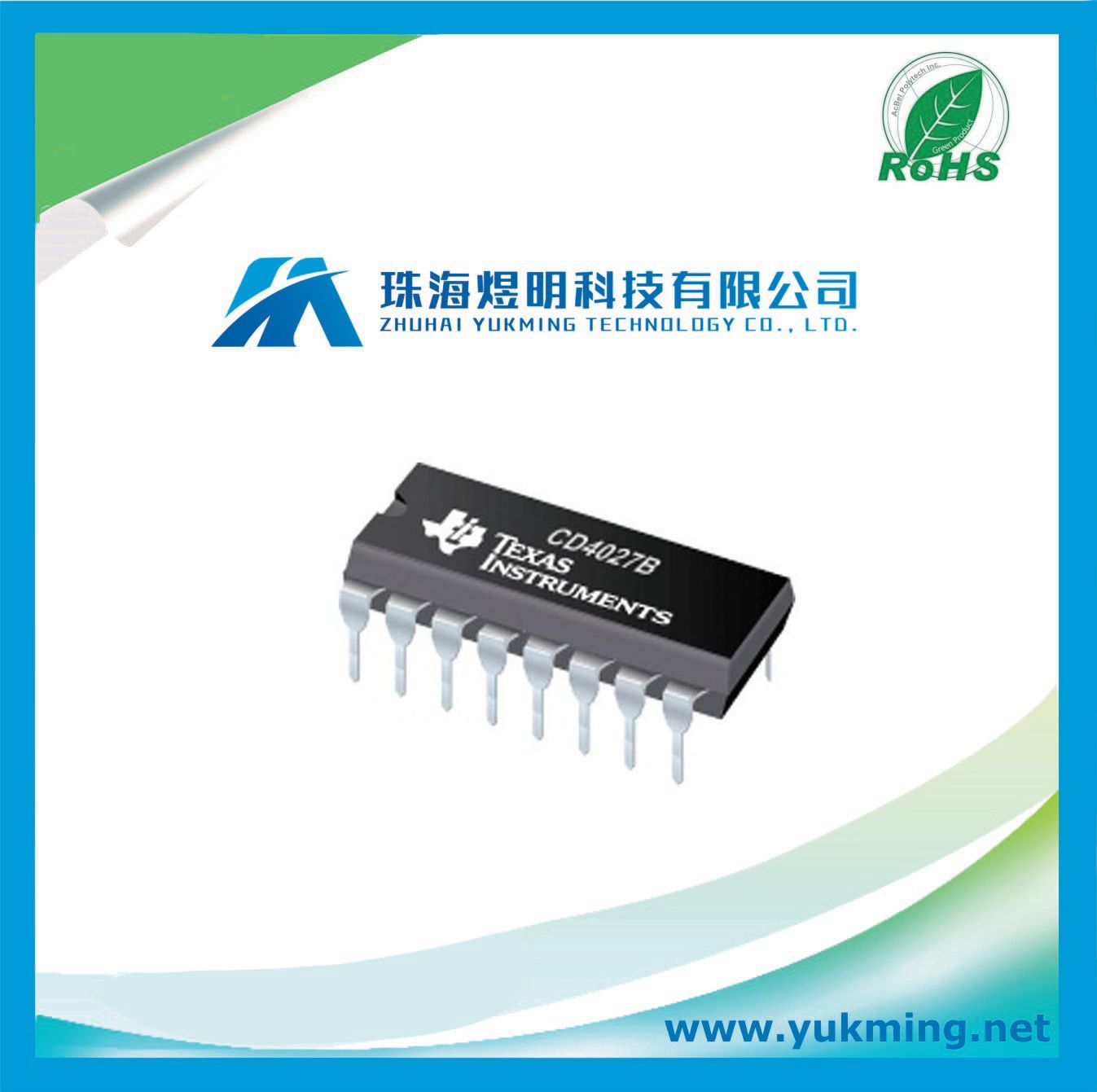

Flip Flop JK-Master-Slave Type Pos-Edge 2-Element 16-Pin PDIP Tube
Texas Instruments brings you their latest CD4027BE flip flop device, a simple yet effective method for storing your circuit's state information. It has a differential output signal. This flip flop has a minimum operating temperature of -55 °C and a maximum of 125 °C. This device comes in tube packaging. It has 2 channels per chip. This inverting/non-inverting device has a typical operating supply voltage of 3.3|5|9|12|15 V. Its minimum operating supply voltage of 3 V, while its maximum is 18 V.
Specifications
EU RoHS Compliant
Logic Family CD4000
Logic Function JK-Master-Slave Type
Fabrication Technology CMOS
Number of Elements per Chip 2
Number of Element Inputs 2
Number of Element Outputs 1
Polarity Inverting/Non-Inverting
Triggering Type Positive-Edge
Minimum Operating Temperature (°C) -55
Number of Channels per Chip 2
Maximum Operating Temperature (°C) 125
Packaging Tube
Maximum High Level Output Current (mA) -4.2(Min)
Minimum Operating Supply Voltage (V) 3
Maximum Low Level Output Current (mA) 4.2(Min)
Maximum Operating Supply Voltage (V) 18
Typical Operating Supply Voltage (V) 3.3|5|9|12|15
Absolute Propagation Delay Time (ns) 400
Output Signal Type Differential
Mounting Through Hole
Package Height (mm) 5.08(Max) - 0.51(Min)
Package Length (mm) 19.69(Max)
Package Width (mm) 6.6(Max)
PCB changed 16
Standard Package Name DIP
Supplier Package PDIP
Pin Count 16
Lead Shape Through Hole
Features
• Set-Reset capability
• Static flip-flop operation - retains state indefinitely with clock level either "high" or "low"
• Medium speed operation - 16 MHz (typ.) clock toggle rate at 10 V
• Standardized, symmetrical output characteristics
• 100% tested for quiescent current at 20 V
• Maximum input current of 1 µA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C
• Noise margin (full package-temperature range) =
1 V at VDD = 5 V
2 V at VDD = 10 V
2.5 V at VDD = 15 V
• 5-V, 10-V, and 15-V parametric ratings
• Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"
Applications:
Registers, counters, control circuitsAny items you need, please send the BOM List to us, we will for sure to supply you not only with new and original products but also the best service by our professional team who are with us since our head office in Shenzhen was set up in 2009!
