ID RCCB 63A Circuit Breaker, Automatic ELCB/RCCB Circuit Breaker

Name: ID RCCB 63A Circuit Breaker, Automatic ELCB/RCCB Circuit Breaker
Brand: all-electronics-online.com
SKU: 778567295
Availability: InStock
Rating: 4.3 (103 reviews)

Price:	US $ 1.5/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	ID
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Leakage Acting Current:	30mA, 100mA
Delivery Time:	Quickly Delivery Time
Servicee:	OEM and ODM
Certificate:	Ce ,ISO9001 ,CQC
Pole Number:	2p,4p
Rated Current:	16A ,25A ,40A,63A
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Installation:	Fixed
Structure:	ELCB
Poles Number:	4
Certification:	CCC
Arc-extinguishing Medium:	RCCB

Product Description

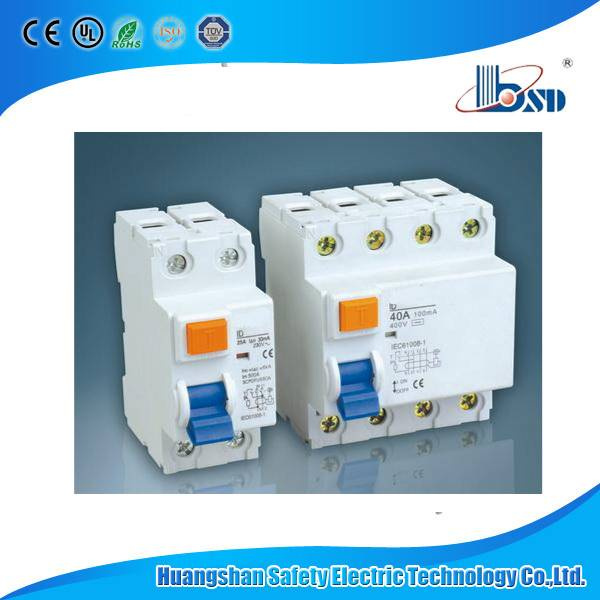

Specifications ID Residual Current Circuit Breaker
Rating up to 100A
Breaking capacity up to 6kA
Model No: ID
Rated Current: 16, 25, 40, 63, 80, 100A
Sensetivity: 10, 30, 100, 300, 500mA
Rated Voltage: 230VAC(2P), 400VAC(4P)
No. Of Pole: 2P, 4P
Type: Type AC and Type A
Breaking Capacity: 6000A
Standards: IECEN 61008

Rated Conditional Short-Circuit Curren	Inc 10ka
Rated Current ,in	16,25,32,40,63A
Rate Sensitivity Currents, IΔn	10,30,100,300mA
Number of Poles	2(1+N), 4 (3+N) Pole
Rated Voltage	2p:230VAC 4p:230/400VAC
Type of Trip	Electro-Magnetic Release
Type of Terminal	Pin Type

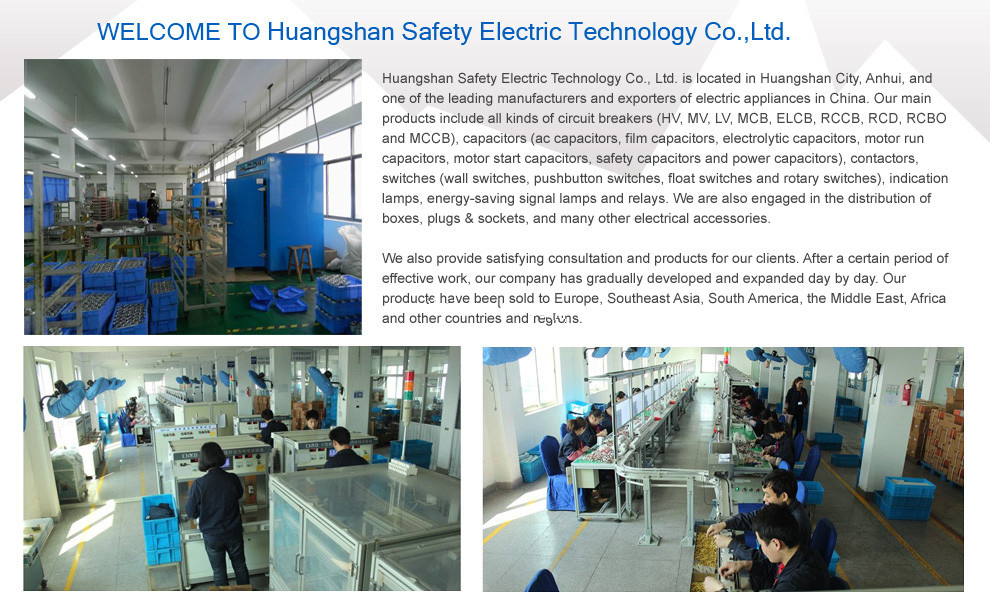

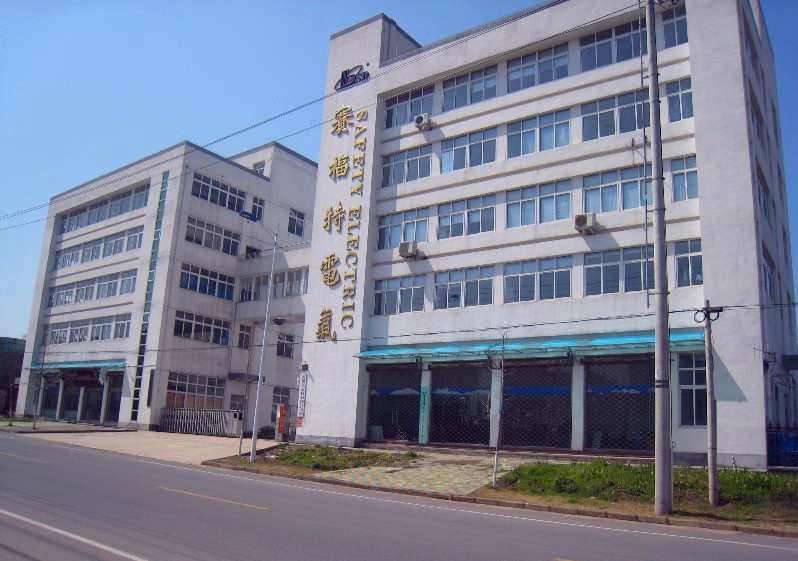

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
