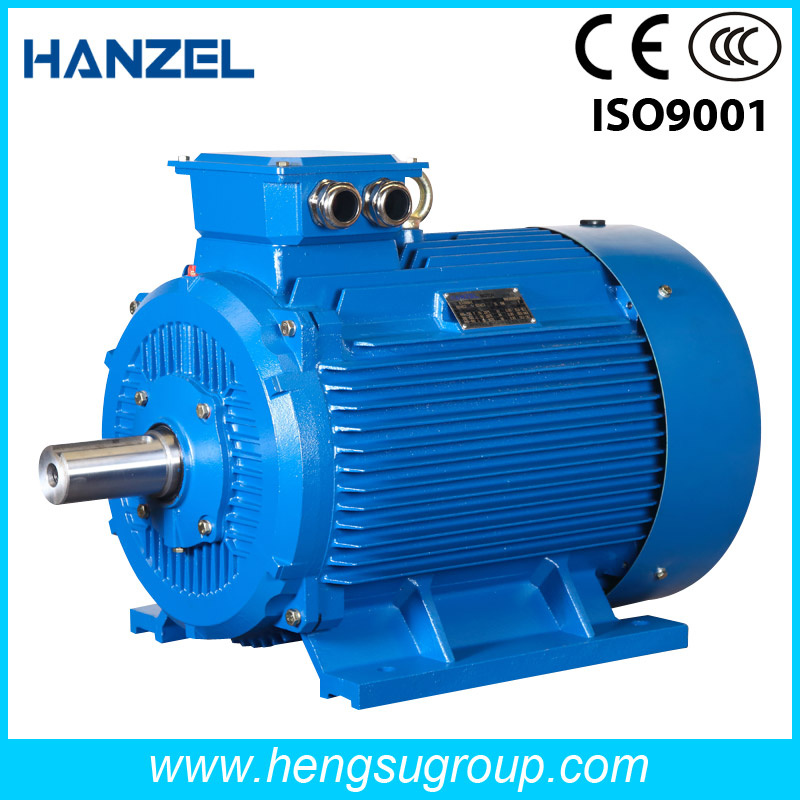

| Prod Model: |
IE2-112M-4 |
| Color: |
as Customer Required Ral No. |
| Shipping: |
25 Days Later After Receiving Deposit |
| Desiccant: |
Every Motor Is with Desiccant Inside Terminal Box |
| Paint: |
Terminal Box Inside and Fan Cover Inside Both Are |
| Number Of Stator: |
Three-Phase |
| Function: |
Driving |
| Certification: |
Ce |
| Brand: |
Hanzel Shilin |
Product Description
In accordance with this European regulation, Hanzel offers now asynchronous AC motors efficiency class High Efficiency (IE2).
The new IEC 60034-30:2008 defines worldwide the following efficiency classes of low voltage three-phase motors, in the range from 0.75 to 375 kW.
IE1 = Standard Efficiency (comparable to EFF2)
IE2 = High Efficiency (comparable to EFF1)
IE3 = Premium Efficiency
The efficiency factor defines the efficiency of motors when transforming electrical into mechanical energy. For many years low-voltage three-phase motors in the European Union have been sold in three efficiency classes EFF3, EFF2 and EFF1. Energy efficiency classification systems have been introduced and well-proven in many countries all over the world. They unfortunately differ from each other in terms of scope, wording and values. That was the reason for the International Electrotechnical Commission IEC to develop and publish an energy efficiency standard which replaces all the different national issues. In parallel IEC developed and issued a new standard for the determining the motor efficiencies. The new standard IEC 60034-30 defines and harmonizes worldwide the efficiency classes IE1, IE2 and IE3 for low-voltage three-phase motors.
Detail:Operating conditionsAmbient temperature:
-20senti degree≤ 0≤ 40senti degreeAltitude:lower than 1000 meters above sea level Temperature and Insulation classMotors are based on F (155ºC) ,B (80K),to keep motor life and reliability Cooling and VentilationFully enclosed self fan cooling(TEFC).Motor is fixed with auxiliary flow typePlastic fan which is complying withthe provisions of 60034-6 IEC Ic411 Insulation classMotor protection class is Ip55 whichcan be used for dust or humidityenvironment, and we can provide a higher level of protection of motor Motor protectionAS need, motor can be installed of PTC,Pt100 and other winding resistance and Bearing temperature measurement and Protection device. Voltage and frequencyThe standard voltage is 380V/50Hz.which can be designed among200-600V,in the case of deviation5%, the motor still can work good. Vibration Vibration speed of Ye3 series motorin the no-load is in line with class A,special requirement, we can provideclass B. Terminals block box locationThe terminal block box is on thetop or one the right side as the standardYe2 series motor. Quality assuranceFrom design to produce factory,we strictly follow the ISO9001 qualitycertification system and procedures.

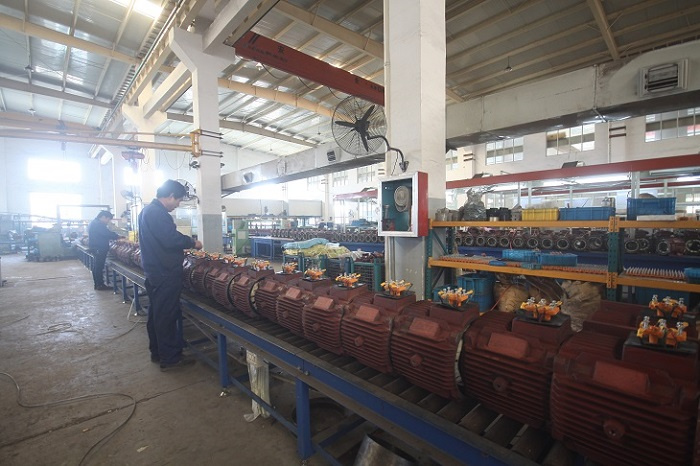

Hengsu Holdings Co., Ltd. is located in Zhejiang Yangtze River Delta, one of the most dynamic cities - Taizhou Economic Development Zone. There are three subsidiary companies: Sanmen Hengsu Motor Co., Ltd., Zhejiang Hengsu Electric Motor Co., Ltd., Jiangsu Shilin Electric Motor Co., Ltd., having total land area of more than 200000m2, a building area of 100000m2, jointly established the production of small and medium-sized production base for kinds of electric motors
The company focus on R & D and production of the wider use of technology, advanced small and medium-sized electric motors for domestic and foreign markets, the main products are in line with the international IEC standard three-phase asynchronous motors Y series cast iron motor and Y2 series with cast iron and aluminum housing motor, and the derivative of YB2 series explosion-proof motor, YEJ series electromagnetic brake motor, YVF series frequency adjustable-speed motor, YCT series electromagnetic adjustable-speed motor, YD series pole-changing multi-speed motor, YHSD series soft-start electromagnetic, HS series buffer deceleration motor products; And IEC standard YC and YL single phase electric motor, annual output capacity of 4, 000, 000 kilowatts.
The company established a strong R & D team to continuously optimize the product design and manufacturing processes, improve quality control and advanced production testing equipment, with the characteristics of modern management model, the company strictly in accordance with international standards ISO9001: 2008 quality system implementation of comprehensive-our products have got CE, SGS, and CCC certificate. Companies in innovation, creating value for customers of the purpose and dedication to providing our customers with high quality products and best services
